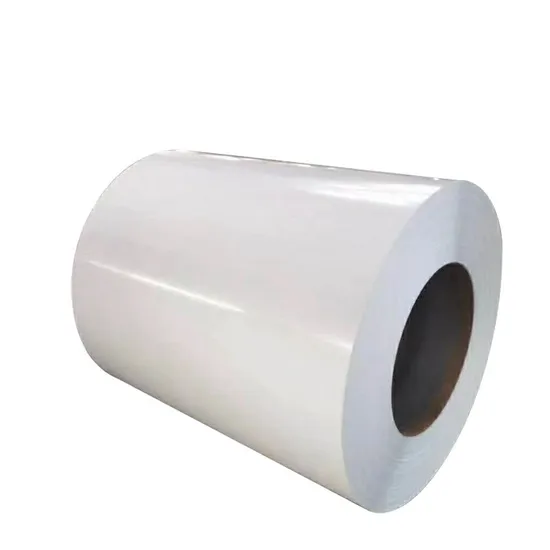

Prime Ral Color Coated Steel Coil Prepainted Galvanized Steel Coil PPGI / PPGL / Hdgl / Hdgi Cold Rolled Steel Coils PPGI

Product Description

Product Description

Contents	Prepainted Galvanized-PPGI	Prepainted Galvalume-PPGL
BASE METAL	GALVANIZED	GALVALUME / ALUZINC
STANDARDS	JIS G -3312,ASTM A -755 ,	ASTM A 755M,
	EN -10169, IS -14246,G300-G550	WITH SUBSTRATE ASTM A792 M
THICKNESS	0.11~2.00 mm	0.11~2.00 mm
Width	750 TO 1250 mm	750 TO 1250 mm
Coil ID	508 & 610 mm	508 & 610 mm
Coil OD	1700 mm max	1700 mm max
Coil WT	3 TO 8 MT	3 TO 8 MT Max - With ref. to width of coil
Substrate	Soft, Medium, Hard	Soft, Medium, Hard
Hardness
YS (Mpa)	240 -700	240 -700
Coating Mass	Z 20-275 (Grams / m2)	AZ 20-180 (Grams / m2)
Paint Systems	Primers: Epoxy, PU	Primers: Epoxy, PU
	Polyester (RMP/PE)	Polyester (RMP/PE)
	Silicon Modified Polyester (SMP)	Silicon Modified Polyester (SMP)
	Poly Vinyl Di Flouride (PVDF)	Poly Vinyl Di Flouride (PVDF)
	Back Coating: Epoxy, Polyester, PU	Back Coating: Epoxy, Polyester, PU
Coating	10 - 30 Microns / 5 - 30 Microns	10 - 30 Microns / 5 - 30 Microns
	top can 3 coats and back can 2 coats	top can 3 coats and back can 2 coats
Colour	As Per RAL Chart/Customer requirements.	As Per RAL Chart/Customer requirements.
Surface Finishes	Glossy and Matte	Glossy and Matte
Cut to length	200mm-5000mm	200mm-5000mm
Slits	30mm and above	30mm and above
Packing	Sea Worthy Export Packaging	Sea Worthy Export Packaging

What Is PPGI/PPGL ?

PPGI & PPGL are made from high-quality materials such as hot-dip galvanized steel sheet, hot-dip galvalume steel sheet, and electro galvanized steel sheet. After undergoing surface pretreatment, one or several layers of organic coating are applied, followed by a baking and solidifying process. This results in a color coated steel coil that is not only lightweight and visually appealing but also exhibits excellent anti-corrosion properties. Additionally, it can be processed directly to meet various needs.
The colors available for color coated steel coils include gray, sea blue, brick red, and more. As for their applications, they are widely used in diverse industries such as advertising, construction, decoration, home appliances, electrical appliances, the furniture industry, and the transportation industry.

Production Process

Substrate Type

1.Hot-dip galvanized color coated steel sheet(prepainted galvanized steel sheet)
The product obtained by coating an organic coating on a hot-dip galvanized steel sheet is a hot-dip galvanized color-coated plate. In addition to the protective effect of zinc, the hot-dip galvanized color-coated sheet also protects against rust and has a longer service life than hot-dip galvanized sheet;
2.Hot-dip aluminum-zinc color coated sheet(prepainted galvalume steel sheet)
Hot-dip aluminum-zinc steel sheets can also be used as color-coated substrates (55% AI-Zn and 5% AI-Zn);
3.Electroplated zinc color coated sheet
The electro-galvanized sheet is used as the substrate, and the product obtained by baking with the organic coating is an electrogalvanized color-coated plate. It has a beautiful appearance and excellent processing properties, and therefore can be mainly used for home appliances, audio, steel furniture, interior decoration, and the like.

Coating Type of PPGI & PPGL

Polyester (PE): Good adhesion, rich colors, wide range in formability and outdoor durability, medium chemical resistance, and low cost.
Silicon modified polyester(SMP): Good abrasion resistance and heat resistance, as well as good external durability and chalking resistance, gloss retention, general flexibility, and medium cost.
High Durability Polyester(HDP): Excellent color retention and anti-ultraviolet performance, excellent outdoor durability and anti-pulverization, good paint film adhesion, rich color, excellent cost performance.
Polyvinylidene Fluoride(PVDF): Excellent color retention and UV resistance, excellent outdoor durability and chalking resistance, excellent solvent resistance, good moldability, stain resistance, limited color, and high cost.

Main Features

1.Good durability and long life compared with galvanized steel.
2.Good heat resistance, less discoloration at high temperature than galvanized steel.
3.Good thermal reflectivity.
4.Processability and spraying performance similar to galvanized steel.
5.Good welding performance.
6.Good performance-price ratio, durable performance and extremely competitive price. Packaging & Shipping
