Prefilled Glue IP68 Gel Waterproof Junction Connector Gel Box

Product Description

Product Description

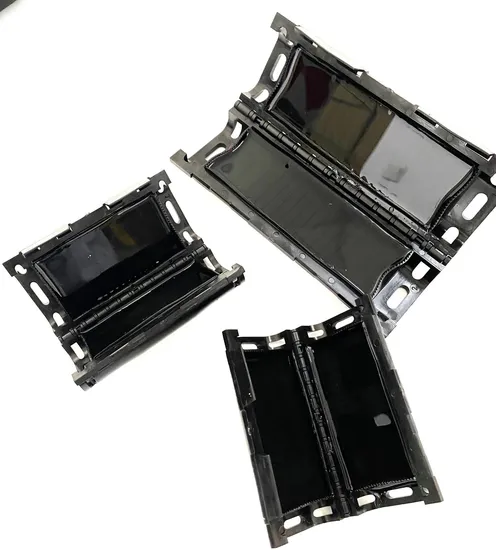

Gel insulated joints for straight connectionsApplication:▪ Straight connections of single and multicore cables with up to 5 cores ▪ Versions without terminal blocks: insulation of connections on multi‐paired telecommunications cables and insulation of electronic boards and components ▪ Installation in cable ducts, underground, overhead, or underwater ▪ Street lighting systems Characteristics• Ready to use• Re-enterable• No resin mixing and casting• Usable immediately• Excellent electrical insulation• Good mechanical resistance• No expiry date• 6 sizes and 12 versions for use with a wide range of cables.

Size	L	W	H
0	72	42.5	23
1	86	49.5	27
2	145	52.5	29
3	146	57.5	35
4	180	72.5	39

			Single Core Cable		Mulicore Cores cables
Size	Part	Connector/Terminal Block/Accessories	Cores	Conductor Corss-section Min-Max(mm²)	Max Cores	Conductor Corss-section Min-Max(mm²)
0			Single		Three cores	0.5-1.5
1			Single		Three cores	0.5-2.5
2			Single		Three cores	1.5-6.0
3			Single		Five cores	1.5-6.0
4			Single		Five cores	6.0-16.0

Detailed Photos
Certifications
Company Profile
Shanghai Wellco International Limited is a professional Team with 18years experience for R & D, production, sales of special heat shrink Tube and other radiation crosslinking materials manufacturers. We concentrate on to providing all kinds of products and solution for Insulation,Connection,Waterproof, high temperature ,Chemical resistant ,EMI and mechanical protection for the wire and cable.The company has strong technical force with 20 years experience and advanced production equipment. We can supply (such as modified PE, PVDF, FEP, EPDM, Silicone, FKM, FEP, PTFE Etc materials)heat shrink tube and insulation tube. The products are widely used in the fields of electronic communication, automobile, high-speed rail, electric motor, aviation, medical and other fields, such as insulation, water-proof, electrostatic shielding, oil-resistant, chemical and high-temperature resistant Protection, etc. Our products have passed UL certification ,RoHS ,REACH.We also can produce customized products or develop products with special requirements according to customer requirements, and we carry out our production according to ISO9001 and IATF16949 quality management system standards to ensure the stability and reliability of product quality.
FAQ
1. who are we?We are based in Shanghai, China, start from 2017,sell to North America(20.00%),South Asia(20.00%),Southeast Asia(15.00%),Western Europe(15.00%),South America(5.00%),Eastern Europe(5.00%),Mid East(5.00%),Northern Europe(5.00%),Eastern Asia(3.00%),Domestic Market(3.00%),Southern Europe(2.00%),Africa(00.00%),Central America(00.00%). There are total about 5-10 people in our office.2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.what can you buy from us?Heat Shrink Tube/Heat Shrink Mould Part/Marking Sleeve/Cold Shrink Tube4. why should you buy from us not from other suppliers?Shanghai Wellco International Limited is a professional R & D, production, sales of special heat shrink Tube and other radiation crosslinking insulation materials manufacturers And the founder have the experience for the insulation more than 20years5. what services can we provide?Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,DDP,DDU,Express Delivery;Accepted Payment Currency:USD,EUR,CNY;Accepted Payment Type: T/T,L/C,MoneyGram,PayPal,Western Union;Language Spoken:English,Chinese, Japanese
