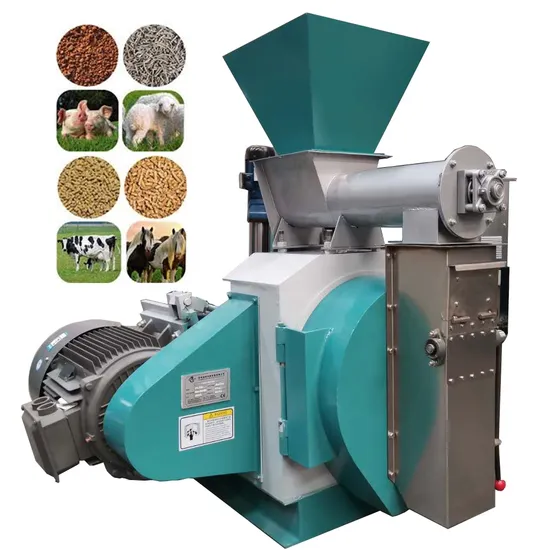

CE 2-3 Ton/H Farm Poultry Animal Use Cattle Chicken Feed Pellet Machine Price for Sale

Product Description

CE 2-3 ton/h Farm Poutry Animal Use Cattle Chicken Feed Pellet Machine Price for Sale
Usage of feed pellet machine:
It is used to produce pellet feed for pig, cattle, sheep, rabbit, chicken, duck, fish, etc;
To make straw granule
To make inorganic fertilizer granule
Introduction
SZLHA Series Ring Mould Pellet Mill is the main machine of making granular fodder, it can be used to make various roughage and refined fodder in livestock farm and feed mill, and also used for checmical industry, fertilizer industry and sugar industry.
Features

Parameter/Model	SZLH-15A	SZLH-20A	SZLH-25A
Output(kg/h)	100-200	500-700	1000-1200
Power (kw)	3	11	22
Revolving Speed of ring die (r/min)	420	306	306
Inside diameter of ring die(mm)	150	200	250
Pellet diameter(mm)	Φ1.5,Φ2,Φ2.5,Φ3,Φ3.5,Φ4,Φ5,Φ6,Φ8
Dimension(m)	0.75*0.45*0.8	1.1*1.15*1.25	1.1*1.15.1.25
Weight(kg)	175	500	625

SZLH B Series Ring Mould Pellet Mill is the main machine of making granular fodder, it can be used to make various roughage and refined fodder in livestock farm and feed mill, and also used for chemical industry, fertilizer industry and sugar industry.
Specification

Model No.	SZLH-20B	SZLH-25B	SZLH-30B
Output(kg/h)	500-700	1000-1500	1500-2000
Power (kw)	11	22	30
Feeding motor(kw)	0.75	0.75	0.75
Revolving Speed of ring die (r/min)	306	306	330
Inside diameter of ring die(mm)	200	250	304
Pellet diameter(mm)	Φ1.5,Φ2,Φ2.5,Φ3,Φ3.5,Φ4,Φ5,Φ6,Φ8
Dimension(m)	1.1*1.5*1.52	1.1*1.15*1.25	1.35*1.3*1.6
Weight(kgs)	580	710	960

Introduction
SZLH C series Ring Mould Pellet Mill is the main machine of making granular fodder, it can be used to make various roughage and refined fodder in livestock farm and feed mill, and also used for checmical industry, fertilizer industry and sugar industry.
Specification

Parameter/Model	SZLH-20C	SZLH-25C	SZLH-30C
Output(kg/h)	600-800	1000-2000	1500-2000
Power (kw)	11	22	30
Feeding+Conditioner motor(kw)	0.75+1.1	0.75+1.1	0.75+1.1
Revolving Speed of ring die (r/min)	306	306	330
In-side diameter of ring die(mm)	200	250	304
Pellet diameter(mm)	Φ1.5,Φ2,Φ2.5,Φ3,Φ3.5,Φ4,Φ5,Φ6,Φ8
Dimension(m)	1.1*1.86*1.6	1.1*1.86*1.6	1.35*1.88*1.65
Weight(kgs)	720	900	1035

Note: Above capacity is base on producing chicken feed with the 5mm ring die, if you want to produce
different feed or different size feed pellet, please kindly inform in advance.
Crusher machine:
Mixer Machine:
Pellet machine:
Cooler machine:
Pellets packing machine:
Final feed pellets:
Production Line:
300-800kg/h small feed pellet line:
1 ton/h feed pellet line:
2 ton/h feed pellet line:
3-5 ton/h feed pellet line:
