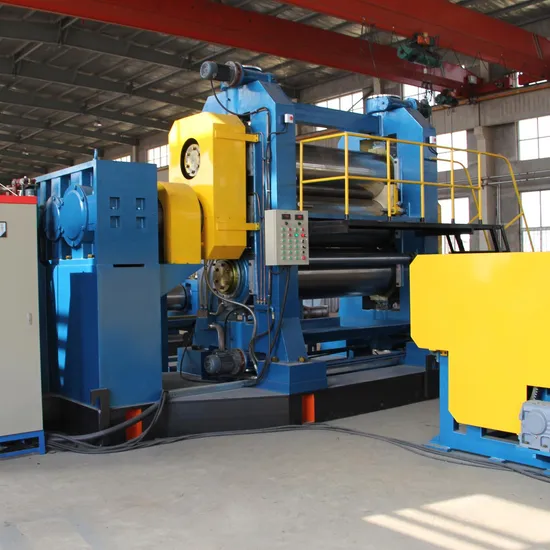

3 Roll Rubber Calendaring Machine Dalian Deyu 400 X 1200
| US$67,880.00-69,880.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
XY-3(400 x 1200)
Certification
ISO
Condition
New
Customized
Customized
Automatic Grade
Automatic
Structure
Vertical
Transport Package
Steel Pallet
Trademark
Deyu Machinery
Origin
Dalian China
HS Code
8477900000
Production Capacity
5000 Sets/Year
Product Description
Deyu 4 roll calender:
Detailed specification:
| XY-4Γ 360 x 1120 | XY-4Γ 400 x 1200 | XY-4Γ(S) 450 x 1530 | XY-4Γ(S) 610 x 1730 | XY-4Γ(S) 710 x 2130 | |
| roll diameter mm | 360 | 400 | 450 | 610 | 710 |
| roll working length mm | 1120 | 1200 | 1530 | 1730 | 2130 |
| roll ratio | 0.73:1:1:0.73 | 1:1.38:1.38:1 | 1:1.5:1.5:1 | 1:1.4:1.4:1 | 1:1.5:1.5:1 |
| middle-roll linear speed rpm | 2-20.1 | 3-26.3 | 2.5-25 | 8-50 | 3-30 |
| adjusting np range mm | 0-10 | 0-10 | 0-10 | 20 | 0-20 |
| min. calendering products thickness mm | 0.2 | 0.2 | 0.2 | 0.15 | 0.15 |
| calendering product width mm | 920 | 1000 | 1400 | 1500 | 1900 |
| motor power kw | 55 | 75 | 110 | 185 | 220 |
| overall dimensions mm | 3300 940 2350 | 6400 1620 2490 | 6700 1970 2700 | 6580 2460 2920 | 7010 4150 3730 |
| about weight ton | 16 | 20 | 25 | 50 | 100 |
