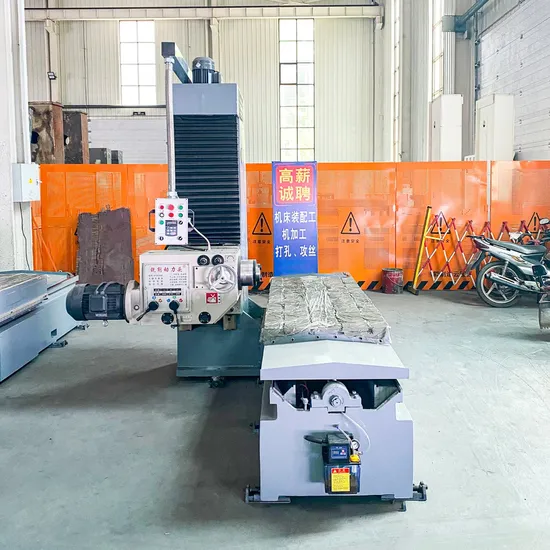

Yd1870 Single Column End Face Milling Machine
| US$7,000.00-15,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
YD1870
Type
Tool Milling Machine
Object
Tool
Structure
Gantry
Milling Cutter Type
Angle Milling Cutter
Milling Cutter Structure
Inlaid Tooth
Controlling Mode
CNC
Automatic Grade
Manual
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Base
3000X600
Table
1800X700
Column
1600X400
up and Down Travel of Milling Head
800
Milling Head Motor
7.5kw
Rotation Speed of Milling Head
75-420
Milling Head Spindle Telescoping
100mm
Table Feed, Fast
0-1600mm/ Min
Transport Package
Plywood
Specification
3500x1800x2000mm
Trademark
yunding
Origin
China
HS Code
8458190000
Production Capacity
2000
Product Description
YD1870 single column end face Milling MachineProduct Description
Suitable for all kinds of machinery on the big, medium and small ferrous or non-ferrous metal parts of
verticalplane, inclined plane, straight groove milling, boring, reaming, reaming, etc. Can be carried outonthe workptece and milling, boring automatically. After casting tempering, quenching machine tool main guiding surfaces, more stable rigidity. longer service life. The machine can implement machine management, more sutableforassembly line work, simple structure, convenient operation, good rgidity The machinewithhigh preciston, lownotse simple operation.tion.
| Up and down travel of milling head | 800 |
| Milling head motor | 7.5KW gear head(NT50 7:24) |
| Rotation speed of milling head | 75-420 |
| Milling head spindle telescoping | 100mm |
| Table feed, fast | 0-1600mm/ min |
| Table feed motor | 2.2+Reducer |
| Maximum table load | 3000 |
| Diameter of cutter plate | 200 |
| Electrical control | Variable frequency |
| Guideway protection | Shroud |
| Table bed oil pump | Automatic oil supply |
| Screw nut | Automatic oil supply |
| Table Screws | 5012 |
| Upper and lower screws on the power head | 4007 |
| Power head and motor | 1.1KW+Reducer |
| Machine dimensions, length, width and height | 3500x1800x2000 |
| Maximum working height | 800 (customisable) |
| Maximum machining length | 1800 |
| Type of bed guideway | 1V 1 flat |
| Table guideway | Manual scraping |
