Sentec RS485/232 Integration of Multiple Parameters Ultrasonic Weather Station for Rainfall/Tem/Hum/Wind Speed/Direction and Pm Outdoor

Product Description

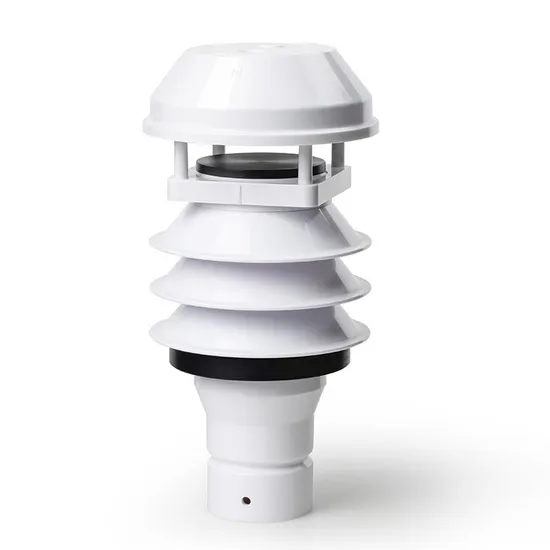

SenTec SEM9600 small automatic weather station is a civil integrated weather station independently developed by our company that can measure multiple meteorological parameters. It can simultaneously measure atmospheric temperature, atmospheric humidity, wind speed, wind direction, air pressure, rainfall, radiation, illuminance, UV radiation, and visibility. , environmental noise, PM2.5 and PM10 and other meteorological elements
Product Parameters

ITEMS	Range	Accuracy	Resolution
Wind speed	0-70m /s	± 3%	0.1
Wind direction	0-359 °	±3 °	1 °
Temperature	- 40 ºC - + 80 ºC	± 0.5ºC	0.1 ºC
Humidity	0-100%	±3%	1
Atmospheric pressure	300- 1100hPa	±1	0.1hPa
Rainfall*	0-200mm/hr	±5%	0.1mm
Altitude*	-500m ~ 9000m	±8%	1m
Radiation*	0-2000 W/m2	±5%	0.1 W/m2
Illuminance*	0-200000lux	±5%	0.1 lux
UV radiation*	0-2000 W/m2	±5%	0.1 W/m2
PM2.5/PM10*	0-2000μg/m3	±5%	1μg/m3
UV Radiation*	0-2000 W/m2	±10%	1μW/cm2
Visibility*	10~3000m	±15%	1m
Noise*	30~130dB	±3dB	0.1dB

Digital output	RS232, RS485, SDI-12
Power supply	VDC: 7-30V / (0.1-0.7)W
Operate temperature Humidity	-20ºC - +50ºC / 0 - 100%
IP protection	IP65
Baut rate	4800 - 19200
Communication	ModBus,NMEA-0183,ASCII
Size	Φ110mm×(217-297)mm / 0.38kg
Material	White/ASA
