Automatic Grinding Machine / Milling Machine with a Low Price

Product Description

Automatic grinding machine / milling machine with a low price
Product Description : 1.Introduction of milling machine:
Automatic sharpener for sharpening planer and other same size straight edge of the tool, can wear a different angle of the straight blade cutter, equipped with an automatic cooling system.In terms of manufacturing, high-quality materials, sophisticated equipment, advanced processing technology made of, double steel sink rails join it greatly improves the pulley sliding precision, friction is small, lightweight slide, 90 ° rotary knife seat designed to meet different angles sharpening tool. Cooling water pump can effectively cool the parts of grinding, wood machine lubrication , therefore has a very high stiffness, wear resistance, impact resistance, smooth high-speed, low vibration, low noise, precise and reliable fine features.
Automatic Grinder main features:
1. A multi-use, fully functional.
2. At the same grinding planer multi-chip high efficiency, in particular between the sheet size to ensure consistent weight, the balance in favor.
3 high-precision linear bearings and linear rod reciprocating motion, time-saving, lower than the trough box so that both sides of the knife, grinding wheel rotation splashing water and miscellaneous grains all fall on the tank, clean, but also more secure. 2.Technical parameters of milling machine:

Model	HT-MF256
The maximum grinding length	700mm
Grinding wheel travel	740mm
Apply the blade width	0-40mm
Speed of grinding travel	2800r/min
Blade slope	0°-90°
Motor power	1.5kw
Voltage	380V 50Hz( or customized)
Weight	180kg
Grinding wheel size	125*32*60#
Dimension	600*1120*1330mm
Blade fixed mode	tapping holes fixed

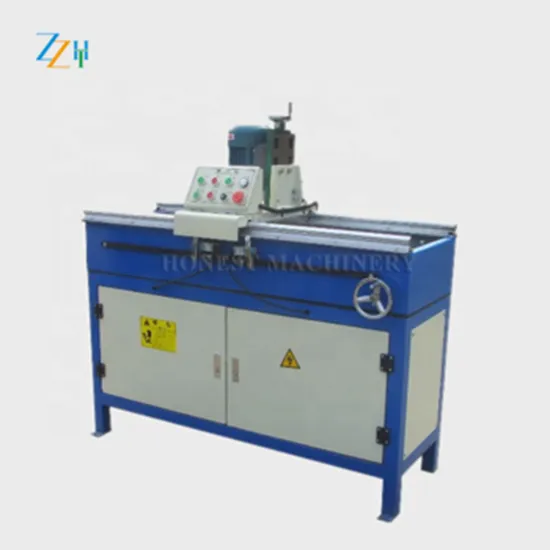

Product Picture :
