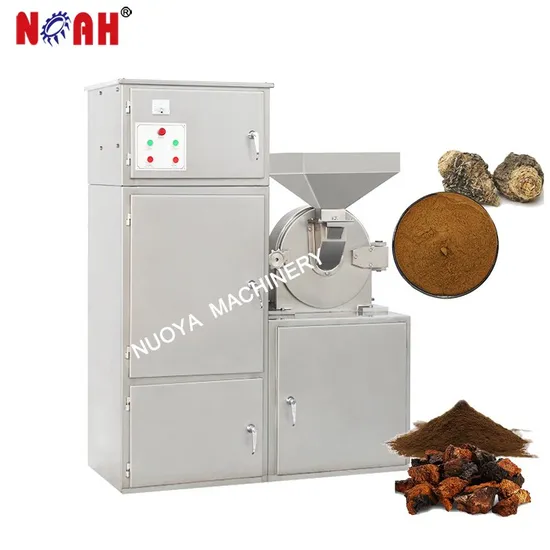

GF40b Pulverizer Set Vanilla Bay Leaf Powder Making Machine

Product Description

GF40b Pulverizer Set Vanilla Bay Leaf Powder Making Machine
Our machine is a new type equipment combining smashing and dust collection as a whole, widely used for pharmaceutical industry, chemical industry, pesticide industry foodstuff industry, grain industry and so on.
Characteristic
1, It adapts the vertical low raw material discharging equipment. The machine makes some raw materials with poor fluidity after broken can be dischanged unblocked and no the phenomenon of accumulated powder.
2, The machine are made of qualified stainless steel. Its inner wall of the housing is smooth and level being processed through superior technology, make the powder discharging more flowing and is benefit to the work of clean too.
3, The gear disk of high speed and movable teeth are welded through well welding, it makes the teeth is durable, safety and reliable.
4, It s in conformity with the requirements of "GMP".
5, According to customer needs, may increase water cooling device, and conveyer screw.

Model	GF20B	GF30B	GF40B
Capacity	60-150 kg/h	100-300 kg/h	160-800 kg/h
Spindle Rotating Speed	4500 rpm	3800 rpm	3400 rpm
Powder Fineness	20-120 mesh	20-120 mesh	20-120 mesh
Feeding Size	<6mm	< 10 mm	<12 mm
Pulverizer Motor	4 kw	5.5 kw	7.5 kw
Overall Dimensions	550*600*1250mm	600*700*1450mm	800*900*1550mm
Net Weight	250kg	320kg	550kg
