Factory Price 4c 70mm UV Resistant Copper Wire Underground XLPE Power Electrical Cables

Product Description

4c 70mm UV Resistant Copper Wire Underground XLPE Power Electrical Cables
1. Standard
IEC 60502, 60228, 60332, 60331
DIN VDE 0276-620
HD 620 S1: 1996
DIN EN 60228 class 2 (construction)
2. Application
This cable is used for fixed installations, such as distrubution networks or industrial installations. It can be installed in
cable duct, trench or directly buried in earth.
3. Product Description
1) Rated Voltage: 0.6/1KV 3.6/6KV 6.5/11KV, 11KV, 33KV, 66KV, 132KV
2) Max. working temperature: 90 °c
3) Max. temperature during short circuit (≤5S): 250 °c
4) Conductor: class 1, 2 copper or aluminum
5) Sectional area: 25 - 630mm2
6) Insulation: XLPE
7) No. of cores: 1, 3
8) Armor: steel wire or steel tape for 3 core cables and non-magnetic material for single core
9) Oversheath: PVC
10) Min. beding radius: 15 times cable radius for single-core cables and 12 times for multi-core ones
11) Max. conductor DC resistance at 20°c:

Model	Name	Application site	Section area	Cores	Rate voltag
VV	Copper Conductor PVC insulated PVC sheathed power cable	Indoors, in tunnel or cable trench, unable to bear external mechanical forces. Single-core cables laid in magnetic ducts are not allowed .	10 16 25 35 50 70 95 120 150 185 240 300 400	1 2 3 4 5 3+1 4+1 3+2	0.6/1kv 8.7/15kv 12/20kv 18/30kv 21/35kv
VLV	Aluminum Conductor PVC insulated PVC sheathed power cable
YJV	Copper Conductor XLPE insulated PVC sheathed power cable
YJLV	Aluminum Conductor XLPE insulated PVC sheathed power cable
YJY	Copper Conductor XLPE insulated PE sheathed power cable
YJLY	Aluminum Conductor XLPE insulated PE sheathed power cable

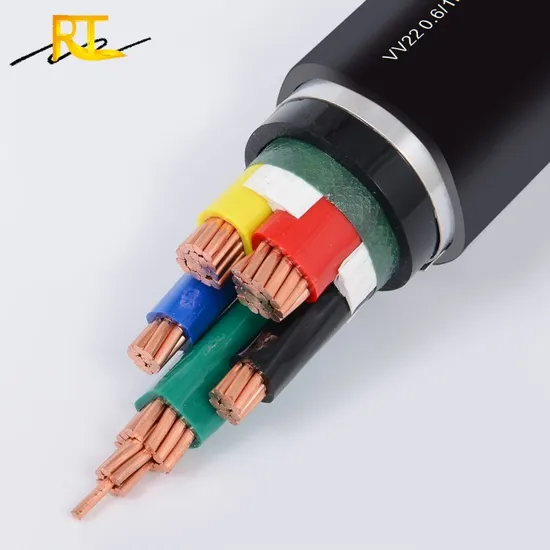

VV22	Copper Conductor PVC insulated steel tape armored PVC sheathed power cable	Indoor, tunnel, cable trench or underground laying, able to bear external mechanical forces, but can not afford a big pull.
VLV22	Aluminum Conductor PVC insulated steel tape armored PVC sheathed power cable
YJV22	Copper Conductor XLPE insulated steel tape armored PVC sheathed power cable
YJLV22	Aluminum Conductor XLPE insulated steel tape armored PVC sheathed power cable
YJV23	Copper Conductor XLPE insulated steel tape armored PE sheathed power cable
YJLV23	Aluminum Conductor XLPE insulated steel tape armored PE sheathed power cable
VV32	Copper Conductor PVC insulated steel wire armored PVC sheathed power cable	Indoors, in tunnel, cable trench, well or burying, able to bear external mechanical forces and a certain tension.
VLV32	Aluminum Conductor PVC insulated steel wire armored PVC sheathed power cable
YJV32	Copper Conductor XLPE insulated steel wire armored PVC sheathed power cable
YJLV32	Aluminum Conductor XLPE insulated steel wire armored PVC sheathed power cable
YJV33	Copper Conductor XLPE insulated steel wire armored PE sheathed power cable
YJLV33	Aluminum Conductor XLPE insulated steel wire armored PE sheathed power cable

Company Profile
Ruitian Cable established in 2008, is a professional manufacturer engaged in research, development, production, sale and service of power cable, solar cable, control cable, electric wire, rubber cable, aerial bundle cable, high temperature cable ect. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.
We have many advanced equipment including testing, insulation, shielding, cabling and packing. In addition, With continuous efforts of production improvements and high quality management, we have obtained certificates TUV, C E, I S O 9 0 0 1, I S O 1 4 0 0 1 and Industrial Products Manufacture Certificate. Has exported to Europe, America, Southeast Asia, Middle east, Australia, Africa. Our products gain wide praises all around the world. We also welcome OEM and ODM orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.
We warmly welcome customers from all around the world to cooperate with us for common success.
FAQ 1).When can I get the price?We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, pleasecall us or tell us in your e-mail so that we will regard your inquiry priority.(2).How can I get a sample to check your quality?After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.(3).How long can I expect to get the sample?After you pay the freight charge and send us confirmed files,the samples will be ready for delivery in 37 days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express account orprepay us if you do not have an account.(4).What about the lead time for mass production?Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
