Inflating Food Extruder Double Co-Rotation Screws

Product Description

Product Description
Single barrel and screw for pp woven bag
Product application
High speed single screw plastic extruder, strong torque, large thrust, high strength alloy steel gear and shaft superior performance, easy to operate, friendly control interface, high speed extrusion, high yield and high quality products, is a popular plastic processing machinery.
Product Parameters
Specification:
1) 38CrMoAlA(JIS SACM645)
2) 42CrMo(JIS SCM440)
3) 9Cr18Mov
4) CW6Mo5Cr4V2

Screw diamater	Φ20-Φ50mm
Maximum screw length	10000mm
Barrel inner bore diameter	500mm
Material	A: 38crmoala in high quality; B: alloy steel in high quality
Technology	A. nitriding treatment; B. alloy coating spraying; C. heating treatment; D. screw fully hardening ; E. vacuum quenching; F: electroplate hard chrome
Parameter	A: depth of nitrition layer: 0.6-0.8mm B: nitriding treatment for 7 day and night, surface hardness HV>900 C: fragility of nitriding: less than grade 1 D: surface roughness: ra0.4um E: streightness of screw: 0.015mm F: depth of bimetallic layer>2mm G: hardness of alloy platig: HRC 62-72 H: surface of hardness of chrome coating layer: HRC 62-72 I: thickness of chrome coating layer: 0.03-0.06mm

Production process:
Application
PVC wood plastic, PE wood plastic, ultra-high molecular plate, free brick plate, 1:2 above high calcium buckle plate, high calcium pipe, high calcium profile, soft PVC sheet, PVC foam board and other ordinary plastics, PP, PE, ABS, PVC, raw material granulation, production of pipe, profile, sheet and other products.
Parameter:

Amount of injection (g)	screw diameter x length(mm)	barrel diameter x length(mm)	Amount of injection(g)	screw diameter x length(mm)	barrel diameter x length(mm)
30-90	Φ30x900	Φ85x860	800-1250	Φ75x1825	Φ170x1725
60-125	Φ35x910	Φ85x860	1000-1500	Φ80x2000	Φ180x1805
100-150	Φ38x935	Φ95x900	1250-2000	Φ85x2300	Φ190x1900
125-160	Φ40x980	Φ95x910	2000-3000	Φ90x2700	Φ210x2000
125-300	Φ42x1030	Φ105x8880	2500-5000	Φ100x2600	Φ230x2405
250-400	Φ45x1210	Φ115x1165	3000-6000	Φ110x2600	Φ256x2590
300-500	Φ50x1300	Φ125x1260	4000-10000	Φ120x2800	Φ256x2800
450-600	Φ55x1335	Φ130x1320	6000-8000	Φ130x3010	Φ256x2970
500-700	Φ56x1350	Φ130x1350	8000-10000	Φ145x3010	Φ256x3200
500-700	Φ60x1380	Φ140x1350	10000-15000	Φ160x3500	Φ270x3200

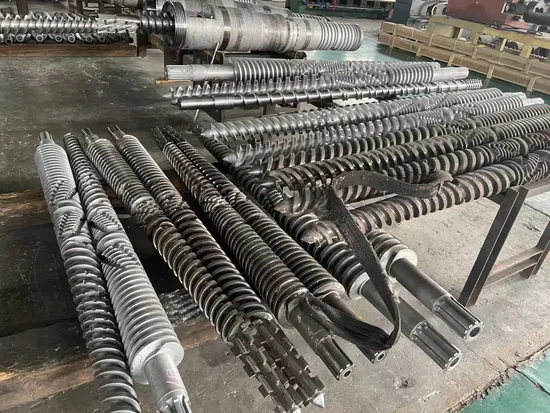

Detailed Photos
Factory picture
Packaging & Shipping
1)Packing: Wrapped up by film in wooden cases2)Port Departure: Ningbo Port3)Delivery time: 25 working days upon receipt of 30% deposit(days based on your quantity)We use strong plywood or wooden case for all our products.

FAQ
Q1. Are you a trading company or a manufacturer?
We are a BSCI&ISO-9001 certificated manufacturer.
Q2. Can I place the customized order for different sizes, colors, materials,packings….?
Yes, all the customized orders are welcomed.
Q3. Could I get a QC report before delivery?
Yes, the specific QC reports will be sent to you before delivery.
Q4. Can I get a lower price if I place a larger order?
Yes, the price will be modified according to your order quantities.
