7000kg/7t/7ton/7tons Forklift with Side Shift and Solid Tyres Counterbalance CE Mini Forklift Truck Price

Product Description

DIESEL FORKLIFT-CPCD70The applications of diesel forklifts are widespread across different industries. They are commonly used in warehouses, distribution centers, and ports for loading and unloading goods.Construction sites utilize diesel forklifts for transporting heavy construction materials and equipment. Agricultural operations rely on these forklifts for handling large bales of hay, feed, and machinery.Essentially, any industry that requires efficient and robust material handling can benefit from the versatility of diesel forklifts. **Rated Load: 7000kg
**Operating Weight: 9170kg **Fork Size: 1220x150x65mm
**Standard lift hight: 3000mm-2 stage
**Standard Engine: Quanchai 4J1-115C32
(Option Euro5/3,EPA4 engine, triplex stage mast etc..)

	Model	CPCD-70
	Rated Load Capacity	7000kg
	Loader Center	600mm
	Lifting Height(A2)	3000mm
	Free lifting Height(A4)	200mm
	Fork Size(LxWxT)(B1)	1220x150x65mm
	Mast Tilting Angle(F/R)	6/12
	Length(without fork)(B4)	3550mm
	Overall Width(C1)	1995mm
	Mast Hight After Mast Fall(A3)	2500mm
	Lift Height(A1)	4365mm
	Overhead Guard Height(A5)	2450mm
	Turning Radius(C2)	3360mm
	Front /back Overhang(B2)	600/710mm
	Right Angle Channel Width	3040mm
	Wheelbase(B3)	2250mm
	Track(F/R)	1470/1700mm
	Ground Clearance(Mast)	200mm
	Ground Clearance(Car Center)	232mm
	Front Tire	825-15
	Rear Tire	825-15
	Travel(Full/No Load)	28/33km/h
	Lifting(Full/No Load)	420/450mm/s
	Lowering(Full/No Load)	380/350mm/s
	Drawbar Pull(Full/No Load)	5300/2300kg
	Gradeability(Full/No Load)	15/20%
	Total Weight	9170kg
	Battery(Voltage/Capacity)	24/130V/AH
	Engine Model	Quanchai 4J1-115C32
	Rated Pover/Speed	85/2200Kw/rpm
	Max.Torque/Speed	500/1600N.m/rpm
	Work Pressure	20Mpa
	Fuel Tank Capacity	150L
	Tranmission Type	Automatic

PROUDCT DETAILS
------------------------------------------------------------------------------------------------------------------------------------

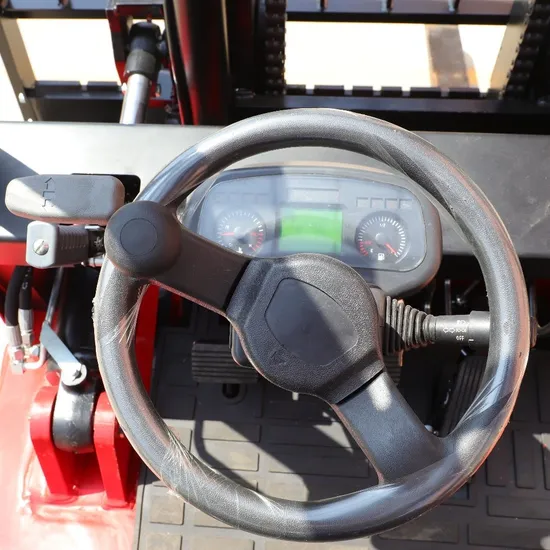

Digital instruments more intuitive and accurate; Easier to operate the forklift.

Noise reduction type cushion used to reduce vibration by 20% Sound insulation cotton is installed under the pedal, the noise is reduced by 5%.

Brake arm increased by 40mm; the pedaling force is reduced by 10%, the braking effect is increased by 20%, and the operation is lighter.

Oil dispersed The fin-type oil-dispersed fin structure can form a strong turbulent flow of the fluid, improving the heat transfer efficiency. Its heat transfer coefficient is also 5-10 times higher than that of the tube-type heat sink.

Toyota Seat Ergonomic design minimizes operator long-term work fatigue, increases operating space, increases work efficiency, and enables the driver to operate the forklift more comfortably.

Masts Independent production of masts, which can be produced according to customer requirements. 2x3m stage mast 3x4.5m stage mast

Increase load capacity by 10%, increase speed by 10%, greatly improve work efficiency.

LED lights enough light, can provide enough light source continuously.

Stainless steel rear tow hook, strong and durable.

One-piece welding the use of boltless, 20% increase in strength, increased safety, rugged construction allows the truck to operate on uneven ground and long curved roads, to withstand the most demanding cargo handling operations.

High-quality tilting cylinder ensures the stability of the mast. which has been tested before leaving the factory.

The engine (with option to meet Euro5/3,EPA4) It uses direct injection technology to optimize the combustion chamber structure . Low speed, high torque and high power, high efficiency fuel injection pump, fuel system adopts electronically controlled distribution pump technical route, stable idle speed, low noise and emission meets National III standard.

OUR FORKLIFT RANGE
------------------------------------------------------------------------------------------------------------------------------------Diesel forklift (2ton to 10 ton), all terrian 4wd forklift(3 ton to 5 ton),LPG& Gasoline forklift from (2.5 ton to 5 ton)
