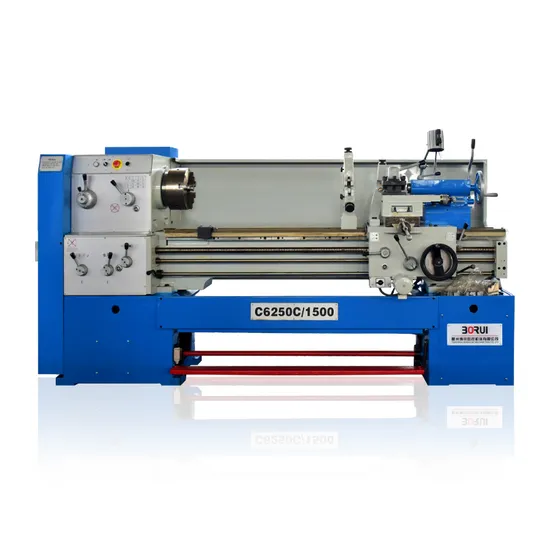

CD6260c High Precision Metal Manual Roll Lathe Machine

Product Description

CD6260C High Precision Advantages Metal Manual Roll Lathe Machine
Product Description
◊ Oversized spindle bore of 80mm;
◊ Main spindle dynamic balanced, and supported at 2 points with taper roller bearing of Harbin brand;
◊ Outward appearance of machine features large plains, making the machine more good-looking;
◊ Gapped bedways, which are super-audio frequency hardened (HB450 plus);
◊ All gears hardened and ground by Reishauer grinding machine;
◊ Leadscrew and feedrod interlocked, both with overload protection;
◊ Automatic feed stopper;
Product Parameters
Product main technical parameters:

Specifications	CD6140C CD6240C	CD6150C CD6250C	CD6160C CD6260C	CD6166C CD6266C
Max. swing over bed	420mm	500mm	600mm	660mm
Max. swing over cross slide	225mm	325mm	360mm	425mm
Center Distance	1000/1500/2000/3000mm
Max. swing over gap	550mm	630mm	730mm	790mm
Effective length of gap	260mm
Bed Width	330mm
Spindle hole	80/103mm
Spindle nose	ISO-D8 or ISO-D11
Spindle taper	Metric 85mm/115MM
Spindle speed	24-1600/20-1200(15 steps)
Metric threads range	0.5-28mm(66 kinds)
Inch threads range	1-56/inch(66 kinds)
Moudle threads range	0.5-3.5mm(33 kinds)
Diametral threads range	8-56D.P(33 kinds)
Longitudinal feeds range	0.072-4.038mm/rev(0.0027-0.15 inch/rev)(66 kinds)
Cross feeds range	0.036-2.019mm/rev(0.0013-0.075 inch/rev)(66 kinds)
Rapid traveling speed of carriage	5mm/min
Lead screw size:diameter pitch	35mm/6mm
Cross slide travel	300mm
Compound rest travel	130mm
Cross-section size of toolshank	25x25mm	25x25mm	25x25mm	25x25mm
Taper of tailstock sleeve	Morse No.5
Dia. of tailstock sleeve	65mm
Travel of tailstock sleeve	120MM
Main drive motor	5.5kw or 7.5kw			7.5kw
Coolant pump motor	0.125kw
Rapid traverse motor	0.12kw
Size(1000mm)	2420x1150x1800mm
Size(1500mm)	2920x1150x1800mm
Size(2000mm)	3460x1150x1800mm
Weight(1000mm)	1640/2290kg	1700/2350kg	1800/2500kg	1860/2600kg
Weight(1500mm)	1850/2550kg	1910/2610kg	2010/2760kg	2070/2860kg
Weight(2000mm)	2090/2860kg	2150/2920kg	2250/3070kg	2310/3170kg

Details Display

Packaging & Shipping
Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have Company Profile
