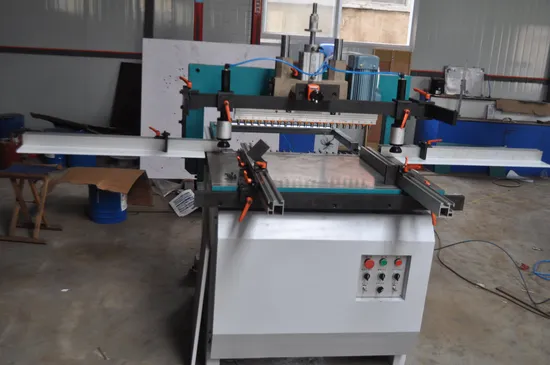

MZ73212A Double-Row Multiple Drilling Machine for Woodworking

Product Description

MZ73212A Double-Row Multiple Drilling Machine
Model NO.: MZ73212A Precision: High Precision
Certification: CE, ISO 9001 Condition: New
Maximum Diamenter of Holes: 35mm Depth of Drilled Holes: 0-60mm
The Number of Spindles: 21 Center Distance Between Spindles: 32mm
Rotation of Spindle: 2840r/Min Specification: 2.4CBM
Total Motor Power: 3kw Suitable Voltage: 380V
Air Pressure: 0.5-0.8MPa Overall Size:1900*2600*1600mm
Trademark: QDZD Transport Package: Wooden Case
Specification: 2.4CBM Origin: Qingdao
HS Code: 84659500
Technical Data:

Max. diameter of holes	35 mm
Depth of drilled holes	0-60 mm
The number of spindles	21*2
Center distance between spindles	32 mm
Rotation of spindle	2840 r/min
Max dimensions of piece to be drilled	2500*920*70 mm
Total power	3 kw
Air pressure	0.5-0.8 Mpa
Gas consumption of drilling 10 panels per minute	10L/min approximately
Suitable voltage	~380 V
Max distance of the two longitudinal heads	380 mm
Min distance of the two longitudinal heads	0 mm
Height of working plat form off ground	900 mm
Weight of the whole machine	680 kg
Over size	1900*2600*1600 mm
Packing size	1100*1300*1700 mm

Other information:
1) Term of payment: T/T, 30% deposit and the balance is paid before delivery
2) Delivery: 25days
3) Machine voltage: optional
4) Warranty: 1 year
5) MOQ: 1 Set
6) OEM service is ok
7) HS code: 84659500
8) Certificate: CE&ISO 9000 Certificate
Qingdao Zhongding Machinery Co., Ltd is a leading company of specializing in manufacturing and exporting woodworking machine, and we are able to offer professional woodworking machines to customers. Our company has professional technology, full range of testing lines and pipelining, and four professional production lines of woodworking machine. It is located by the beachside of the Yellow sea, which is a place of strong competitive power, beautiful natural environment, and easy traffic of air, land and sea transportation.
Our products mainly include Precise Panel Saw, Edge Banding Machine, Multiple Drilling Machine, Press Machine etc., which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, and Australia.
We have established complete sales system. Our company takes the principle of quality first and customer foremost and we are strict with quality control. Meanwhile, we develop and manufacture new products positively, and provide perfect pre-sale and after-sale services. At the same time, our company has got ISO9001 international system certificate and CE security certificate.
Qingdao Zhongding Machinery is looking forward to establish long-term strategic cooperation relationship with you and offer you high quality products and perfect service system.
