Full Automatic PLC Control Rubber Vulcanizing Press (CE/ISO/SGS certificate)

Product Description

Name : Rubber vulcanizing pres,Plate rubber vulcanizing press,Rubber vulcanizing machine,
Rubber curing press,Plate vulcanizing press,
Plate vulcanizing machine,Rubber hydraulic press.
Model No.: CX160
Usage :The machine applies to vulcanizing various kinds of model rubber and plastic products as well as non-model products.
FEATURES: Full automatic control,safety follow CE conformity,longlife use and easy maintaince.
Mechanical system:

1. Using the finite element analysis, a design precision casting forming, high rigidity, long service life.

2. The deep hole processing, the hot plate drill by thickening and nitriding process, the use of high precision,, even the temperature distribution.

3. Numerical control equipment, to ensure accurancy, precision design with key parts for processing.

4. High-end adjustment plane technology, highest can make fluctuation hot plate parallel degree of 0.02mm

Oil line system:

1. The oil line is integrated design concept, reduce oil route, modular inpact and noise.

2. The safe and energy-saving design, improve efficiency, reduce energy consumption.

3. Special design of high speed loop, and makes speed fast acting as smooth transition, and can make any speed adjustment

4. Indenpendent exhaust circuit design, make the exhaust of 100%.

5. Using high quality hydraulic components, stable and reliable.

description:

The operators technique will not affect the quality of product produced by this machine.
It suits for rubber articals, thermosetting plastics (backlite) etc as well as special
products which have complicated process data (such as exhaust or mang times air exhaust midway exhaust) and need high quality.

feature:
the conversion speed of machine was speeding and the quantity of each mould is rising.
get rid of old-pressure gauge, the failure of machine reduced by 50%, the pressure can set on the computer plate directly, the precision can reach 0.1%
imported with original packaging computer, stable and reliable, and have many section of exhaust fuction
the height of the mould and the height of the exhaust can set on computer plate directly, and it was higher in precision and so convenient.
heated plate pre-heat fuction
store the whole technical parameters of 9999 sets molds and easy to operate.
the production has the automatic counting fuction(save if power failure)
special requires, the temperature of electric hot plate can control between +- 2. C
Parameters below :

technical parameters	item	Technical parameters
	clamping force	1600kn
	system pressure	20mpa
	clamping stroke	300mm
	Max.opening	400mm
	fast raise speed	≥60mm/s
	moving mold speed	320mm/s
	heater platen	520*540mm
	max temp	2500C
	eject unit	2RT
	eject force	6T
	eject stroke	250
	motor power	4kw*2
	heater power	12kw*2
	oil tank capacity	340L
Main configuration	Item name	name of origin
	PLC	VIGOR ,Taiwan
	hydraulic systern	solenoid valve Shikun Taiwan pressure retaining valve:shanghai
	systern manometer	wuxi
	AC sensor	Schneider France or Korea LG
	approach switch	Yangming Taiwan
	motor	Gexing
	oil-pump	YUKEN
	oil-seal	NOK
Material And Precision	Name	Material	Remarks
	moulding board	cast iron	QT500-7
	pole	45	HRC48-52
	plug	Alloy cast iron	Alloy cast iron
	heater plate	40Cr
	heater board	heating rod
	heater plate parallel	≤0.15
	heater plate difference in temparature	±30
	temp controller	±10

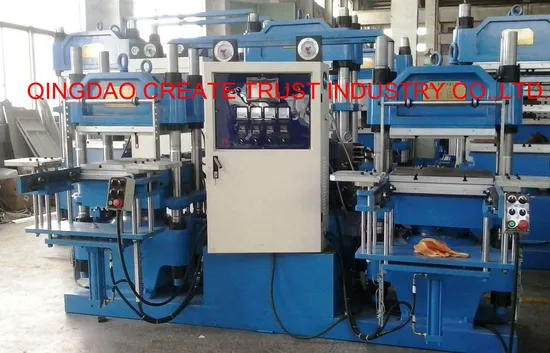

Front view :
Back view :
Parts general view:
Service of us
The production of all products are follow ISO9001:2008 organization system, from raw material processing to assembe and finally test running. even the packing, and delivery. Also we track the use of machine,installation, products producing technical ect.
All we do is for longterm cooperation , " CREATE TURST" !
