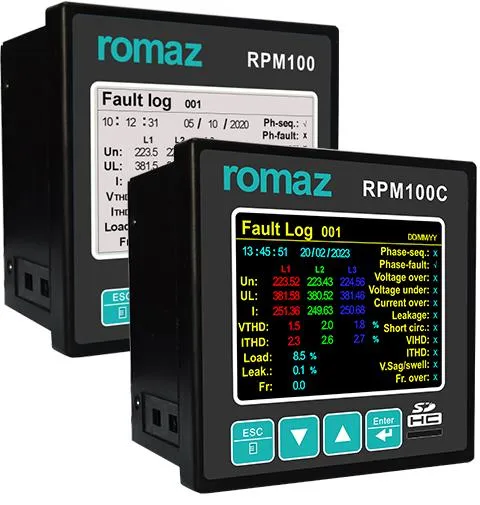

Rpm100/100c Power Meter Multi Meter Power Quality Analyser Network Analyzer

Product Description

Product Description
Measurements
* Measurements:VL-L, VL-N, I, In, Iz, Cos , Pf, Hz, W, ∑W, Va, ∑Va, Var, ∑Var, Kwh, Kvarh, V-THD, I-THD, 1-128th harmonic , system running hours,% voltage unbalance, % system load,% system leakage,frequency;Fast simultaneous sampling on all * 8 channels at 1024 samples/cycle(True RMS measurements) * For single-phase, two-phase, three-phase system * 4 voltage channel input, voltage direct connection up to 690VLL or through PT for MV and HV systems. * 5 current input: 0.05-5.5A * 4th current channel dedicated for neutral current measurements, the current measuring range (CT primary and secondary )
can be programmed together with the main three-phase channels * 5th current channel reserved for Earth Leackage monitoring (ZCT input) according to IEC60755 & IEC61140 * Suitable for 45-65Hz systems * All measured voltage characteristics certified according to IEC/EN61000-4-30:2015 Ed.3, Class A * 4 quadrants energy measurement , 4 tariffe energy measurement and monthly energy calculation * Transients detection >25us, Detection of events >10ms * Voltage flicker measurement, and waveform capture * Maximum, minimum and demand for U, I, P, Q, S in hours, days, months * Phase diagram for voltage, current Detects CT wiring errors
Data storage & recordings * Voltage and current sag/swell and transient event capture * Waveform acquisition and capture of voltage and current * Automatic fault analysis and report: Phase sequence, Phase fault, Voltage over, Voltage under, Sag/swell, Frequency over,
Current over, Short circuit, Leakage,Voltage harmonic, Current harmonic(according to IEC62606: 2013) * Alarm event log: VL-L, VL-N, I, In, ΣW, ΣVar, THD-U, THD-I... * Monthly electricity statistics * Built in 256M flash memory &32MB RAM for event and transient memory * Micro SD(support 32GB) for fault logger and data logger * Data recorded in standard excel file formats for further EN50160 analysis
Clock & language * Real time clock with integrated backup rechargeable battery * English, Chinese (traditional & simplied) or other
Communication * RS485 port of Modbus RTU * Ethernet port of Modbus TCP/IP+web server
Function module (only one can be selected) * 7 digital input+2 analog output (4-20mA) for V1, V2, V3, V12, V23, V31, I1, I2, I3 * Ethernet (Modbus TCP), web server+2 digital input+2 relay output (remote or alarm) * LoRa wireless (Private protocol)+2 digital input+2 relay output (remote or alarm) * RS-485 interface (Modbus RTU)+2 digital input+2 relay output (remote or alarm) * WIFI wireless+2 digital input+2 relay output (remote or alarm) Product Parameters

Auxiliary Supply
Operating voltage (Un)	85···265 VAC 50/60Hz 10W / 100-285VDC/24-48VDC(depend on order)
Power consumption	10VA max
Measurement input
Voltage inputs for direct connection:	Phase-neutral(L-N): max 400V RMS CAT III
Input impedance(for direct voltage inputs):	>4MΩ
CT inputs:	max 5.5A RMS
CT inputs overload capacity:	max 10A
CT inputs Self-consumption :	<0.2VA
Accuracy
Three phase voltage:	± 0.2%
Currents:	± 0.2%
Powers:	± 0.3%
Powers factor:	± 0.3%
Frequency:	± 0.02%
Harmonics:	Class 1 (IEC/EN61000-4-7)
Active energy:	Class 0.2S (IEC/EN 62053-22)
Reactive energy:	Class 0.5S (IEC/EN 62053-23)
Insulation
Insulation voltage	3kV for 1 min., 50Hz
Display
Display type	3.2inch 240x160 pix LCD/3.5 inch 320x240 color TFT LCD
I/O
Digital inputs:	Active dry contact
Digital outputs:	2 Relay N/O 220VAC 5A
Analog outputs:	4-20mADC / max load 500Ω
Pulse output:	12-30VDC Max.50mA, Min. 50msec pulse width
Memory
Recording memory:	max 32 GB SD (TF)
Communication
Ethernet port:	Auto MDIX Rj45 10/100 Base Ethernet
RS-485 port:	1 optoisolated, 4800-57600
Protocols:	HTTP, HTTPS, Modbus RTU/TCP
Environmental conditions
Opterating temperature:	-10···+55°C
Storage temperature:	-25···+75°C
Relative humidity:	95% max without condensing
Altitude:	max 2000m AMSL
Installation & use:	Internal
Mechanical characteristics
Mounting:	Panel mount 96x96mm(The panel cut-size 92*92mm)
Size:	Front(WXH)96x96mm, Rear (HxD) 90x70mm
Degree of protection:	IP40(optional IP54) on front, IP20 housing and terminals
Weight:	400g
Standard compliance
reference standard:	IEC61010-1; IEC61557-1;IEC61557-12; IEC61326-1;IEC62053-21; IEC62053-22; IEC62053-31; IEC60068-2-1; IEC60068-2-30; IEC60364-5-52; IEC61000-3-2; IEC61000-3-3; IEC61000-4-2; IEC61000-4-3; IEC61000-4-4; IEC61000-4-5; IEC61000-4-6; IEC61000-4-8; IEC61000-4-11; IEC61000-4-30
