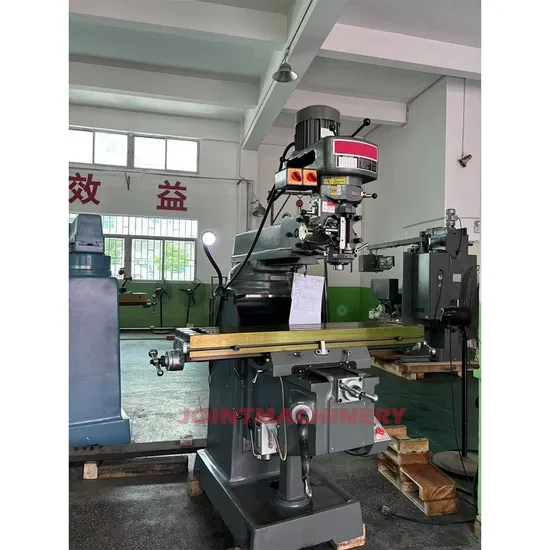

Conventional Milling Machine Tool 3 Axis Turret Milling Machine with Manual Controls for Metal

Product Description

Experience the epitome of engineering excellence with our high-quality castings and precision processing, meticulously crafted to ensure unparalleled precision and rock-solid stability.
√ Spindle tolerance: 0.002mm - Enjoy precise and flawless performance with ultrafine spindle tolerance, setting new benchmarks in accuracy.
√ Benefit from twice precision scraping, a meticulous process that guarantees exceptional processing quality and unmatched precision.
√ Perfect for electronic components, precision holes, intricate slots, frames, and mold processing, delivering versatility for diverse applications.
√ Features the authentic Taiwan original milling head coupled with the renowned Japan NSK P4 precision spindle bearing, ensuring top-tier performance.
1. WORKTABLE
The worktable boasts ultra-audio quenching, precision grinding, and scraping guide, with an optional rotary table for enhanced versatility and precision.
2. TURRET MILLING HEAD
A turret milling head that can swivel 45° (forward-backward) and rotate 90° (left-right), offering the flexibility to mill at unique angles with ease.
3. SPINDLE
Equipped with high-precision R8/NT30/NT40 spindle, featuring a minimal spindle runout of 0.003mm for impeccable machining accuracy.
4. X/Y/Z AUTO FEED
Enhance your machining efficiency with X/Y axis auto feed and Z axis electric lifting, designed to optimize productivity.
5. DRO
Tailor your setup with optional 2-axis or 3-axis DRO based on your specific needs, offering customized control over precision.
Conventional Milling Machine Tool 3 Axis Turret Milling Machine with Manual Controls for Metal

Model				4VA
Table size			mm	1270*254*90
Travel		X axis	mm	900
		Y axis	mm	405
		Z axis	mm	350
Travel of spindle quill			mm	127
Maximum distance from spindle nose to table			mm	450
Spindle	Rotation speed (Step speed milling head)	50HZ	rpm	66-4530 (16 grade)
		60HZ	rpm	80-5440 (16-grade)
	Rotation speed (Variable speed milling head)	50HZ	rpm	50-3500
		60HZ	rpm	60-4200
	Rotation speed (Inverter speed milling head)	50HZ	rpm	0-4200
		60HZ	rpm	0-4200
	Taper			R8/NT30
	Rated power		HP	3HP
Tilt Angle			Forward and backward	±45°
			Left and Right	±90°
Dimension			mm	1500*1700*2200
Weight			kg	1400
