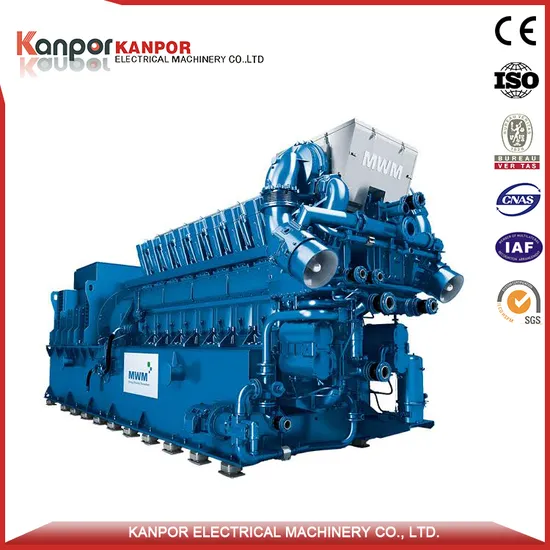

Mwm 4000kw 4MW Natural Gas Power Generator Ready Stock
| US$1,000,000.00-2,000,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
TCG2032V16
Type
Self-Starting Diesel Generator
Installation Method
Fixed
Stroke
Four Stroke
Cooling Method
Water Cooling
Output Type
AC Three Phase
Speed
HSS
Conditions of Use
Land Use
Usage
Common Units, Standby Unit, Emergency Crew
Landuse Type of Unit
Ordinary
Excitation Mode
AC Rotating Exciter
Certificate
CE ISO SGS Soncap TUV
Voltage
10.5kv
Current
189A
Engine Model
Tcg2032V16
Transport Package
Nude Packing
Specification
9481*2790*4252mm
Trademark
Kanpor
Origin
Fujian, China(Mainland)
HS Code
8502132000
Production Capacity
300PCS Per Month
Product Description
1. GENERATOR DATAVoltage Available:
50Hz: 380-400-415V/220-230-240V;
60Hz: 220-380-416-440-480V/110-208-220-240V
Any special voltage is also available as client's request
Prime Power:
Comply with GB/T2820-97(eqv.ISO8528).
Genset can run unlimitedly under certain power range.
One hour 10% over load in every 12 running hours is allowed;
Standby Power:
standby power is the limit value of maximum output for emergency use.
It is off-oil power,overloading is prohibited
2. MAIN SPECIFICATION
| Model | Rated Power (kW) | Engine model | Alternator model | |
| TCG2032V16 | 4300 | TCG2032V16 | DIG 156/6 10500V | |
| Genset Data | Size & Weight (Open type) | 9481*2790*4252mm (51200kgs) | ||
| Frequency | 50Hz | |||
| Standard Features | Radiator 50OC max,fans are driven by belt, with safety guard/Ripple flex exhaust pipe, exhaust siphone, flange, muffler | |||
| Voltage | 10500V | |||
| Phase & Wires | 3phase, 4wires | |||
| Rated Power Factor | cos phi 1.0 | |||
| Performance Class | G2 | |||
| Fuel | Natural gas | |||
| Fuel Tank | Not included | |||
| Status | Stock with 0 running hours | |||
| Engine Data | Brand & Model | MWM TCG2032V16 | ||
| Cycle | 4 stroke | |||
| Air Intake Way | Turbo | |||
| Governor | Electronic | |||
| Cylinder | 16 | |||
| Bore*Stroke (mm) | 260*320 | |||
| Displacement (L) | 272 | |||
| Fuel Type | Natural gas | |||
| Compression Ratio | 12:1 | |||
| Lubricating Method | Pressure and splash lubrication | |||
| Combustion System | Direct injection | |||
| Speed | 1000RPM | |||
| Cooling Way | Water cooled | |||
| Alternator Data | Brand & Model | DIG 156/6 10500V | ||
| Alternator Power | 5500kVA | |||
| Frequency & Speed | 50Hz, 1000RPM | |||
| Phase & Voltage | 3 phases 4 wires & 10500V | |||
| System | Brushless AC Synchronous, Single bearing | |||
| Insulation & Protection | H, IP23 | |||
| Voltage Regulator | Standard AVR | |||
| Control System | Brand & Model | MWM TEM EVO | ||
| Engine start sequences. Engine and generator protection | ||||
| Diesel and gas genset support | ||||
| Engine communication via CANbus. Run coil and crank configurable when using the electric engine | ||||
| High Coolant temperature protection; Low Oil pressure protection. Over speed protection | ||||
| Over load protection; Generator over/under frequency protection: Generator over/under/unbalance voltage protection | ||||
(1) Full control panel with power indicator light and oil light.
(2) Emergency shutdown for low oil pressure and high water temperature.
(3) Large fuel tank ensure continuous running.
(4) Low noise & vibration.
(5) Compact structure.
(6) Reliable performance.
(7) Easy for installation and maintenance.
(8) 50Hz and 60Hz both are available for choice
