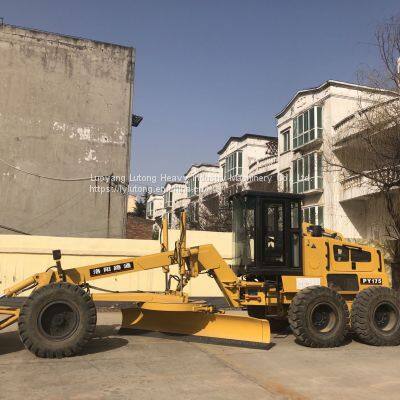

Lutong 220 horsepower self-propelled grader Made in China

Product Details

Product Description

Product Description
Tip:
Due to market price fluctuations, the above product prices and attributes are for reference only
Please contact customer service for specific details,
Sincerely look forward to working with you! !
Contact number: +8617503799066
Email: lutongjason@gmail.com
WeChat: 17503799066
Facebook: Luoyang Lutong
Twitter:
TikTok: lutongjason
Official website:
MAIN FEATURES
01Power configuration is Cummins or Shanghai Diese Engine inter-cooling supercharged diesel endine with strong power and reliable performance.
02Torque converter and power-shift gearbox introduced from GERMANY ZF inc. are integrated together Six forward gears and three backward gears meet various requirements during machine’s working and transporting.
03Driving axle with integrated free-wheel anti-slip differential and strong roller chain drive tandem case, Boxed oscillated steering front axle with leaned wheels.
04Popular working mechanism with pendulum-arm connecting rod structure,Standard equipped free-maintenance rolling-plarecircle device. Double cylinders of the blade tip control can adjust the cutting angle depending on soil quality.
05Flexible hydraulic control system with two sets of HUSCO five way control valve, lmported hydraulic equalizing valve for the bladelifting,Patent hydraulically-operated pin drawing device is designed firstly in board.
06Steering system with center articulated joint and tilting turning front wheels can get offset travel of the entire machine.
07Service braking system of,caliper disc brakes on four rear wheels and mechanical internal expanding parking brake let.
08Hydraulically operated with with entire instrumental monitoring system, Free-maintenance OPTIMA.
09It is optional for front bulldozing plate and rear ripper.
MAIN TECHNICAL PARAMETER

MODEL	PY220C
Operating mass	Kg	16900
Front axle load	Kg	5820
Rear axle load	Kg	11080
Max forward speed	Km/h	36.8
Max backward speed	Km/h	24.8
Speed gear number		F6/R3
Turning radius	mm	7800
Hydraulic system pressure	Mpa	18
Blade lengt × height	mm	3965×610
Front wheel track	mm	2150
Rear wheel track	mm	2255
Wheelbase	mm	5647
Engine model	mm	6CTA8.3
Engine power	kW	158
Overall dimensions	mm	8605×2695×3420
