Yodee Machinery Automatic Vacuum Mixing Emulsifying Machine with CIP Cleaning System

Product Description

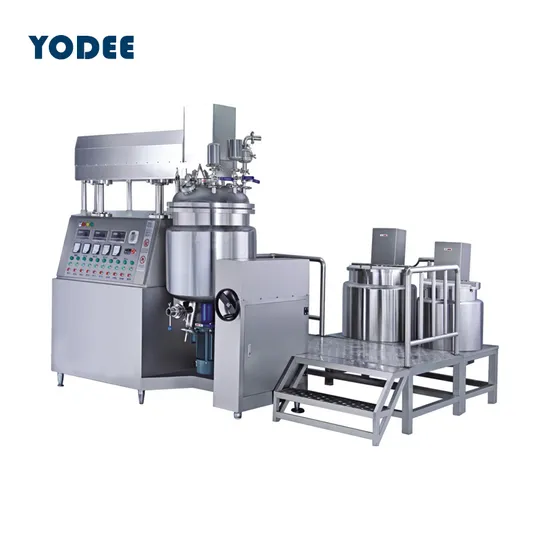

YODEE Machinery Automatic Vacuum Mixing Emulsifying Machine with CIP Cleaning System
The vacuum homogeneous emulsifier rotates at high speed through the homogenizing head connected to the engine to shear, disperse and impact the material in a vacuum state, quickly and evenly distribute one or more phases into another continuous phase. The strong kinetic energy of the mechanical force is used to make the material in the narrow gap between the stator and rotor, and withstand hundreds of thousands of hydraulic shears per minute, it is always subjected to centrifugal force, extrusion, impact, tearing and other comprehensive effects instantly and evenly. Disperse and emulsify the material to form a water-in-oil and oil-in-water state, and finally obtain a high-quality product without bubbles, delicate and stable.
Function
1. 0-63r/min stepless frequency conversion speed regulation, the stirring speed can be adjusted.
2. Homogenizer adopts the USA ROSS Brand technology structure, 0-3300R/MIN stepless frequency conversion speed regulation.
3. Three layers of thickened pot body interlayer, steam heating and electric heating can be selected to suit different scenarios.
4. Using negative pressure 0.09Mpa vacuum function, with German mechanical sealing technology, so that the inside of the pot can reach a vacuum state for a long time, so that the material can be fully produced in a vacuum state.
5. The lifting system is reasonably used to improve production efficiency and effectively avoid secondary material pollution.
6. Set the raw material pretreatment pot (oil pot, water pot), which can effectively improve the production efficiency by 60%.
Application
The vacuum homogenizer emulsifying mixer is applied to any materials that need stirring, homogenizing, pulverizing, suspending and dissolving, such as emulsion and mucilage, to meet the technological requirements of different products. It is widely used in cosmetics, daily chemicals, pharmaceuticals, biomedicine, food etc.
Optional Configuration Reference
Remark: The structure and configuration of the vacuum homogeneous emulsifier are diverse and varied, it can be combined according to the customer's products. It is a non-standard customized product.
Parameter
Small Capacity parameter reference:

Capacity	Homogenizer Motor(KW)	Stirring Motor(KW)	Vacuum Pump(KW)	Water Pot Stirring(KW)	Oil Pot Stirring(KW)	Water Pot Heating(KW)	Oil Pot Heating(KW)
15L	0.75	0.37	0.18	0.18	0.18	2	2
25L	1.1	0.37	0.18	0.18	0.18	2	3
50L	2.2	0.75	0.81	0.55	0.55	6	3
100L	4	1.5	0.81	0.55	0.55	9	6
150L	4	2.2	1.5	0.55	0.55	12	6
200L	5.5	3	1.5	0.55	0.55	12	9

Large Capacity parameter reference:

Capacity	Homogenizer Motor(KW)	Stirring motor(KW)	Vacuum pump(KW)	water pot stirring(KW)	oil pot stirring(KW)	water pot heating(KW)	oil pot heating(KW)
250L	5.5	2.2	1.5	0.55	0.55	12	9
300L	5.5	3	3	0.75	0.75	18	9
400L	7.5	4	3	0.75	0.75	18	9
500L	11	4	3	1.1	1.1	18	9
1000L	15	5.5	3.85	1.5	1.5	27	18
2000L	18.5	7.5	3.85	2.2	2.2	36	27
3000L	22	11	11	3	3
5000L	37.5	15	11	5.5	5.5

Customized Machines Provide Design Drawings
Engineering Case
About Yodee
After-sale Service
1. YODEE products will provide a one-year machine warranty service, and accessories will be replaced free of charge.
2. YODEE will provide lifelong machine technical support and technical support services for the later transformation of the old factory.
3. YODEE will provide engineers to guide the installation of equipment and equipment maintenance training services at the customer's factory if necessary.
4. YODEE can accept customer engineers to Chinese factories for equipment training.
Shipment Service
1. If you have a transportation agent, you can directly arrange to come to our company to pick up the goods.
2. If you do not have a transportation agent yet, YODEE will provide you with different ways of machine transportation services (sea, air, express, rail transportation) according to different situations for choice.
3. Under special circumstances, if the machine exceeds the shipping size of the container, YODEE will still plan and provide you with the best shipping plan for you to choose. Remark
All machine can provide customized service, Please write your requirements and information to Contact YODEE directly at any time, the YODEE TEAM will respond you within 12 hours.
