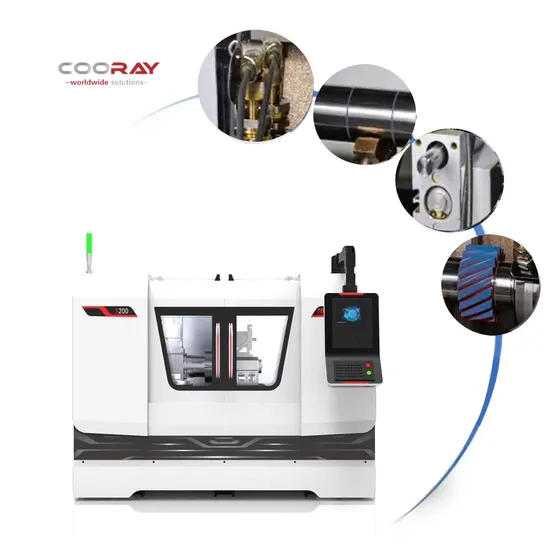

Cooray Cr-GM S1500 (A. B. C) Grinding Machine Precision CNC Machine Tool
| US$100,000.00-500,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
S1500(A. B. C)
Type
Tool Grinding Machine
Processing Object
Curve
Abrasives
Abrasive Belt
Controlling Mode
Artificial
Automatic Grade
Automatic
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
High Precision
Condition
New
Key Selling Points
High Productivity
Marketing Type
Ordinary Product
Machinery Test Report
Provided
Video Outgoing-Inspection
Provided
Transport Package
The Two Sides Negotiate Logistics.
Trademark
COORAY
Origin
China
HS Code
84609090
Production Capacity
5000
Packaging & Delivery
Package Size
557.00cm * 238.00cm * 225.90cm
Package Gross Weight
5200.000kg
Product Description
Product Description| Project/mode | S500(A.B.C) | S750(A.B.C) | S1000(A.B.C) | S1500(A.B.C) |
| Maximum diameter | 0260mm | 0260mm | 0320mm | 0320mm |
| Maximum grinding diameter | 0250mm | 0250mm | O300mm | O300mm |
| Maximum length of workpiece | 500mm | 750mm | 1000mm | 1500mm |
| Maximum weight of workpiece | 50kg | 80kg | 100kg | 100kg |
| Outer diameter of grindingwheel | 0400mm | 0400mm | 0500mm | 0500mm |
| Wheel width | 50mm | 50mm | 75mm | 75mm |
| Innerdiameter of grinding wheel | 0203mm | 0203mm | 0203mm | 0203mm |
| Spindle speed of grinding wheel | 1800rpm | 1800rpm | 1650rpm | 1650rpm |
| Feed angle | 90° | 90° | 90° | 90° |
| Wheel table stroke(X axis) | 200mm | 200mm | 220mm | 220mm |
| Minimum feed unit of grindingwheel | 00.001mm | 00.001mm | 00.001mm | 00.001mm |
| Rotation angle | 3/7 | 3/7 | 3/7 | 3/7 |
| B axis rotation(optional) | 180°+ -5° | 180°+ -5° | 180°+ -5° | 180°+ -5° |
| Workspindle speed | 50-500rpm | 50-500rpm | 50-500rpm | 50-500rpm |
| Top center specifications | MT4 | MT4 | MT4 | MT4 |
| Shift stroke of tailstock from direction | 550mm | 800mm | 1050mm | 1550mm |
| Tailstock sleeve stroke | 30mm | 30mm | 30mm | 30mm |
| Wheel Shaft Motor | 5HP | 5HP | 10HP | 10HP |
| Machine size length*width*height | 2980*2380*2259 | 3180*2380*2259 | 5200*23800*2259 | 5570*2380*2259 |
| Machine weight | 3300Kg | 3500kg | 4600Kg | 5200kg |
