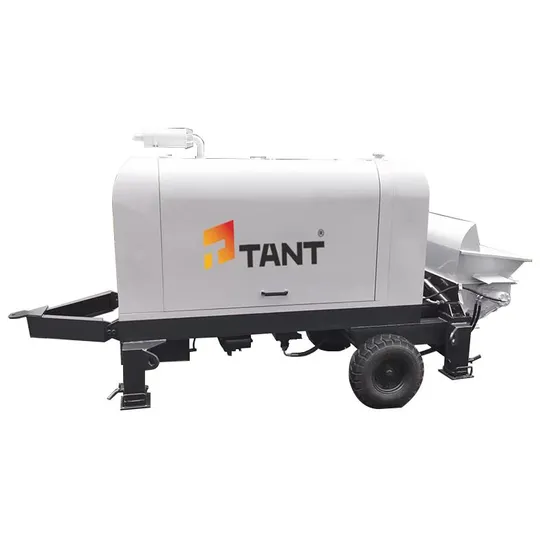

Hbts20.06.52r Cummins Engine52kw Small Concrete Pump

Product Description

Trailer Mounted Concrete Pump HBTS20, HBTS30,HBTS40,HBTS50,HBTS60,HBTS80,HBTS90,HBTS100. 20M3/H, 30M3/H, 40M3/H, 50M3/H, 60M3/H, 80M3/H, 90M3/H,100M3/H.

Professional manufacturer
18 years+ Production & Export Experience

Solid technical foundation and independent innovation to ensure product quality

Well-know brand components from Germany, Italy, Japan, France etc. strive for the best combination of mechanical parts



Diesel Engine Series

Parameter	Unit	HBT30.1006.75RS	HBT40.1408.72RS	HBT50.1410.85RS	HBT60.1613.130RS	HBT80.1613.130RS	HBT80.1816.176RS	HBT90.1818.186RS
Max. theory concrete output	m3/h	30	40	50	60	80	80	90
Concrete pumping pressure	Mpa	06	08	10	13	13	16	18
Distribution valve form		S pipe valve	S pipe valve	S pipe valve	S pipe valve	S pipe valve	S pipe valve	S pipe valve
Hopper capacity	m3	0.35	0.5	0.5	0.6	0.6	0.6	0.6
Hopper height	mm	1000	1400	1400	1400	1400	1400	1400
Theory max. delivery distance (vertical/ horizontal)		100/300	150/450	180/500	200/1000	200/1000	280/1200	300/1500
Diesel engine model		Yuchai	Weichai	Weichai	Weichai	Weichai	Weichai	Joint Deutz
Engine power	kw	75	72	85	129	129	176	186
Hydraulic oil tank capacity	L	250	250	250	580	580	580	580
Suitable aggregate size	mm	≤ 20	≤ 30	≤ 30	≤ 40	≤ 40	≤ 40	≤ 40
Overall dimension (L*W*H)	mm	4700*1600* 1700	5320*2160* 2010	5320*2160* 2010	6000*2160* 2600	6000*2160* 2600	6700*2160* 2700	6850*2160* 2700
Total Weight	kg	3500	4350	4350	6480	6480	6600	6800

Electric Motor Series

Parameter	Unit	HBT30.1006.45ES	HBT50.1410.72ES	HBT60.1613.90ES	HBT80.1813.110ES	HBT80.1816.110ES
Max. theory concrete output	m3/h	30	50	60	80	80
Concrete pumping pressure	Mpa	06	10	13	13	16
Distribution valve form		S pipe valve	S pipe valve	S pipe valve	S pipe valve	S pipe valve
Hopper capacity	m3	0.35	0.6	0.6	0.6	0.6
Hopper height	mm	1000	1400	1400	1400	1400
Theory max. delivery distance (vertical/ horizontal)	m	100/300	180/500	200/1000	200/1200	280/1200
Electric motor power	kw	45	75	90	110	110
Hydraulic oil tank capacity	L	250	580	580	580	580
Suitable aggregate size	mm	≤ 20	≤ 30	≤ 40	≤ 40	≤ 40
Overall dimension (L*W*H)	mm	4500*1500* 1700	5320*2160* 2010	6300*2100* 2250	6300*2160* 2250	6300*2100* 2250
Total Weight	kg	2600	5000	6000	6050	6050

Details







Our factory
Hunan Tant Heavy Machinery Co., Ltd. is located in the Miluo Feidi Industrial Park, Changsha Economic Development Zone. The company specializes in research, development, production and sales of concrete pumping equipment such as Truck concrete pumps with/without mixer, Trailer pumps with/without mixer, Truck mounted concrete pumps with/without mixer, and Concrete mixing equipment such as Truck mixer, hydraulic concrete placing boom, Truck mounted crane, Construction hoist, Folding tower crane, etc.

Tant Heavy machinery was established in 2003. The leaders of the company has been swayed for nearly two decades. After optimization and reorganization, our company has developed into a large-scale modern enterprise integrating R&D, producing and sales, with annual domestic sales of more than 300 million yuan. The plant covers an area of 60 acres and the workshop covers an area of 21,000 square meters. It has more than 200 employees, including more than 90 research and marketing salesmen. It has 5 branches and 25 offices across the country. The machines have been sold overseas, including Southeast Asia, Africa, South America, CIS and more than 40 countries and regions.

FAQ
1.Q:Are you factory or trading company?
A: We have our own factory in Changsha.
2.Q: What is your oil pump brand?
A: Germany Rexroth or Korea Kawasaki.
3.Q: The motor power is the electrical or diesel?
A: Both type. The power of electric type apply to 380V 50Hz.
4.Q: How about guarantee period?
A: 1 year for non-easy worn parts. We strictly follow the warranty terms.
5.Q: What is the payment terms?
A: 30% advance payment and the rest should be paid before delivery by T/T or by L/C.
6.Q: Maintenance and After-sales service?
A: There are professional overseas after-sales technicians, and we have local after service team in some areas.
