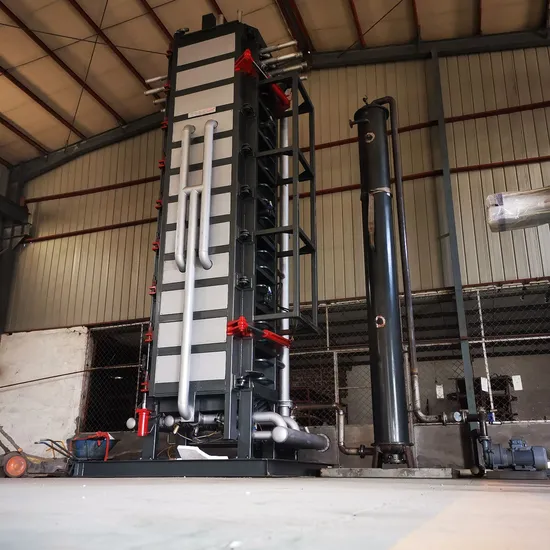

High-Performance Vertical EPS Block Mold Machine for Insulation

Product Description

Installation Instructions
Machine Application
Product Description
1.EPS Block Molding Machine adopts PLC full computer touch screen displayer which can realize a full automatic cycle operation of mould opening, mould closing, material feeding, heating, heat preserving, vacuum cooling, demoulding and extruding-out of finished products.
2.The machine is welded by high-quality profile steel with aging heating treatment which can bring a high strength, non-deformation and high resistance to the expansive force from high-density products.
3. The machine is integrated with overseas advanced and special penetrating and heating techniques for shaping , and a high pressure suction fan for material feeding, cooling with a strong penetrability, favorable-adhesivity, low consumption of steam, high speed of shaping and low water content so as to ensure the uniformity of inside and outside of the product.
4. There are ventilation panel inside the block mold respectively at the 6 directions of its top, bottom, left, right, front and back, which will increase the airflow instantaneously and strengthen penetrating power. (We have got patent on a this technology)
Machine Parameter

Item		PSB2000VC		PSB3000VC	PSB4000VC	PSB6000VC	PSB8000VC
Mould Cavity Size(mm)			2040×1240×1030	3060×1240×1030	4080×1240×1030	6080×1240×1030	8100×1240×1030
Block Size(mm)			2000×1200×1000	3000×1200× 1000	4000×1200×1000	6000×1200×1000	8000× 1200×1000
Steam	Entry		DN80	DN80	DN100	DN150	DN150
	Consumption		25-45kg/cycle	45-55kg/cycle	60-85kg/cycle	95-120kg/cycle	115-160kg/cycle
	Pressure		0.6-0.8Mpa	0.6-0.8Mpa	0.6-0.8Mpa	0.6-0.8Mpa	0.6-0.8Mpa
Compressed Air	Entry		DN40	DN40	DN50	DN50	DN80
	Consumption		1.5-2m²/cycle	1.5-2.5m /cycle	1.8-2.5m'/cycle	2-3m"/cycle	2.5-3m/cycle
	Pressure		0.6-0.8Mpa	0.6-0.8Mpa	0.6-0.8Mpa	0.6-0.8Mpa	0.6-0.8Mpa
Vacuum Cooling Water	Entry		DN40	DN40	DN40	DN40	DN40
	Consumption		0.4m /cycle	0.6m /cycle	0.8m'/cycle	1m'/cycle	1.2m³/cycle
	Pressure		0.2-0.4Mpa	0.2-0.4Mpa	0.2-0.4Mpa	0.2-0.4Mpa	0.2-0.4Mpa
Drainage	Vacuum Drain		DN100	DN125	DN125	DN150	DN150
	Down Air Vent		DN100	DN100	DN150	DN150	DN150
	Air Cooling Vent		DN100	DN100	DN150	DN150	DN150
Capacity(15kg/m)			4min/cycle	6min/cycle	7min/cycle	8min/cycle	8min/cycle
Total Power			19kw	23kw	24kw	32kw	40kw
Overall Dimension(mm)			5700×4000×2800	7200×4500×3000	11000×4500×3000	12600×4000×3100	16700×4600×3500
Weight			5000kg	9500kg	15000kg	18000kg	21000kg
