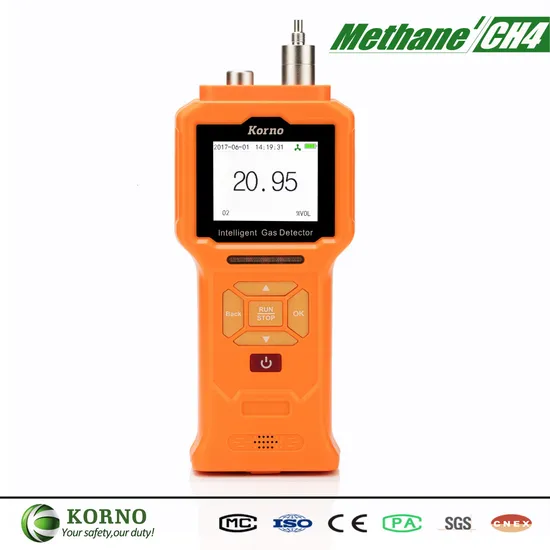

Portable Methane Gas Detector CH4 Detector Gas Leak Detector Gas Analyzer with Infrared Sensor

Product Description

CH4 Methane Gas Detector with alarm (NDIR)
>>> Description
The GT-903 is the basic model of portable instruments. It can be a single gas detector or 4-gases detector for LEL,O2,H2S&CO,and temperature and relative humidity detection function is also available if you need.
Gas concentrations and history data can be displayed in the 2.4 inches LCD HD color screen, user can read all information at a glance . It can also export history data to computer via USB port so that the users can view in a EXCEL format or graph format.
>>> Features Can be single gas detector or 4-gases detector(LEL & H2S & O2 & CO) Three concentration units are available:PPM,%VOL,mg/m3. Up to 30,800 groups data for each sensor can be storage Temperature and humidity detect function is available. Four operation modes are optional:Detection mode,Storage mode,Display mode,Pumping mode. STEL&TWA readouts All software automatic calibration, each kind of sensor can calibrate up to 6 target concentration values Chinese and English operation model are available,user-friendly. Can be exported to the computer to view historical data in a graph format or EXCEL format
>>> Product Specifications

Product type:	Portable,Methane (CH4);NDIR
Detection Range:	0-2000,5000,10000,50000ppm,0-50%,99.99%VOL
Resolution:	1PPM(0-50000PPM),0.01%VOL(0-99.99%VOL)
Temperature and relative humidity: (Optional)	Temperature detection range:-40 ~ 120ºC Humidity detection range:0-100%RH
Detection pattern:	Pumping, the flow rate is adjustable.
Detection Accuracy:	≤±3%F.S	Linearity Error:		≤±1%F.S
Reaction Time:	≤20 S(T90)	Zero drift:		≤±1%(F.S/Year)
Detection Method:	Real-time detection mode, timing detection mode and cycle detection mode can be switch freely
Storage Method:	Automatically saving and manually saving is available, Up to 30,800 groups data for each sensor,user can view history data on the display.
Explosion Proof Sign:	Exdll CT4 (IA)		Case material:		ABS+PC
IP rating:	IP66		Operating Temperature:		-30 ~ 60ºC(-22~144ºF)
Power:	3700mA high capacity polymer rechargeable battery		Operating Humidity:		≤90%RH,Non-condensing
Dimensions / Weight:	180*88*55 mm(L×W×H) 0.5 Kg(net weight)		Operating Pressure:		-30Kpa ~ 100Kpa
Standard Accessories:	-Portable aluminum Case -User manual -Certification -USB charger+Data cable -Calibration cover
Optional Accessories:	-Vapor filter -Hose -Sampling handle(stainless steel ,approx 60cm)

>>> Details:
Lower explosion limit of common combustible gas:

NO.	GAS	LEL	NO.	GAS	LEL
1	Hydrogen(H2)	4.0%VOL	7	Methane(CH4)	5.0%VOL
2	Ethyne(C2H2)	2.5%VOL	8	Methylbenzene(C7H8)	1.1%VOL
3	Benzene(C6H6)	1.2%VOL	9	Ethanol(C2H6O)	3.3%VOL
4	Butane(C4H10)	1.9%VOL	10	Methanol(CH3OH)	6.0%VOL
5	Propane(C3H8)	2.1%VOL	11	Dimethylbenzene(C8H10)	1.1%VOL
6	Ethane(C2H6)	3.0%VOL	12	Ethylene(C2H4)	2.7%VOL

e.g: CH4 (5%VOL=100%LEL),When the methane concentration reaches 5% VOL, it reaches its lower limit of explosion.
Packaging and Shipping:
1:Gas detector
2:Portable aluminum Case
3:User manual
4:USB charger+Data cable
5:Calibration cover
Quality Control:
Our Certificates:
Our service:
1. All products and accessories have been 100% tested before shipping.
2. We provide 12-Month warranty for non-deliberate damage.
3. OEM & ODM are welcomed~

FAQ:
Q1:What's the MOQ of your products?Can I have a sample order?
A1:The MOQ is 5pcs,and first time the sample order to test are welcomed.

Q2:Does the price include duty?
A2:Usually, the price is based on EXW. If you want to know about FOB or CIF price, please contact our experienced salesman directly.

Q3:What certification do you have?
A3:SGS,CE,CPA,CMC,CNEX,ISO and etc.
