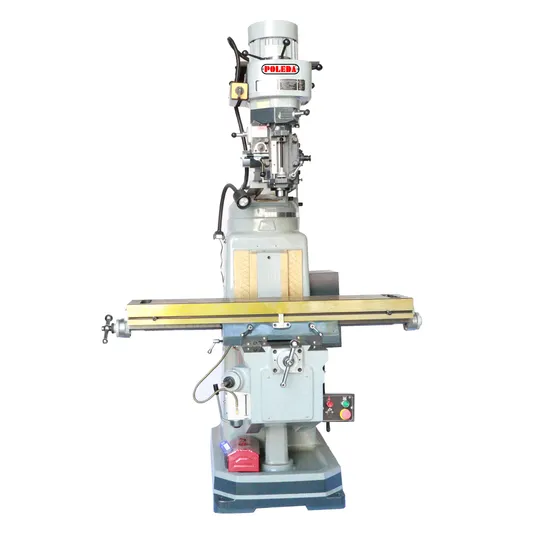

5s High Precision Vertical Turret Milling Machine Z Axis Automatic Lifting Factory Direct Sales

Product Description

Discover the unmatched expertise of our China Universal Milling Machine. At Dongguan Poleda Precision Machinery Co., Ltd., we are the most professional in the field.At Dongguan Poleda Precision Machinery Co., Ltd., we believe in the philosophy that there is no best, only better. Continuous improvement is our mantra.
Product Description
Product Parameters
Product Introduction
The Turret Milling Machine, also known as the Rocker Arm Milling Machine, Rocker Arm Milling, or Universal Milling Machine, boasts a compact structure and high flexibility. Despite its small size, its milling head can rotate a full 90 degrees and tilt 45 degrees both front and back. The machine's rocker arm is not only telescopic but can also rotate a full 360 degrees on a horizontal plane, significantly expanding the machine's effective working range.
Components
Crafted from high-grade cast iron, the body of our Universal Radial Milling Machine promises high precision and longevity, thanks to artificial aging treatment. The lifting platform, featuring rectangular guide rails, provides extensive contact surfaces and robust rigidity. Enhanced with high-frequency treatment and fine grinding, the slide is plastinated, offering unrivaled motion accuracy and durability. Its spindle, made from chrome-molybdenum alloy, is equipped with precision angular contact bearings and undergoes tempering and fine grinding to ensure strong cutting force and exceptional precision.
Applications
The Turret Milling Machine is a versatile, lightweight metal cutting tool, capable of both vertical and horizontal milling. It excels in milling flat surfaces, inclined planes, grooves, and splines on medium and small parts. This machine finds extensive use in machining, mold making, instrumentation, and various other industries.
Mechanical Characteristics of the Turret Milling Machine:
Constructed from Mihanna cast iron, the machine offers exceptional rigidity, stable performance, and resistance to deformation.
The main spindle, crafted from chrome-molybdenum alloy and treated through tempering, heat treatment, and grinding, is paired with precision bearings for formidable cutting force and impeccable precision.
The milling head's gearbox, made from cast iron, ensures superb rigidity, minimal deformation, and heavier gravity for more accurate cutting and enhanced durability.
The three-axis screw's cap is made from advanced phosphorus bronze, ensuring wear resistance and a long service life.
XY shaft slides benefit from high-frequency heat treatment for excellent wear resistance, extending service life. The XY axis interface, featuring an imported wear-resistant plate, ensures ease of operation and durability.
Equipped with a lubrication system that evenly distributes oil to all points, ensuring smooth slide movement.
Our machine weighs 100 kg more than comparable products, providing enhanced stability.
Featuring a powerful 5hp motor and a high-rigidity, high-precision NT40 spindle, our machine is perfect for large parts and heavy-duty cutting tasks.

Product Name	Milling machine
Product model	5M/5S/5HG
Product technical parameters
dimension	Table size	1370*305MM
journey	Left and right stroke(X)	800MM
	Front and rear stroke(Y)	380MM
	Up and down stroke(Z)	380MM
	Arm reach	600MM
	Distance from spindle end face to table surface	100-480MM
	Table bearing	350KG
Principal axis coefficient	Spindle taper	NT40
	Spindle speed	80-5440RPM(16-speed)
	Spindle travel	127MM
	Spindle horse power	5HP
Milling head	Milling head tilt Angle	45° front and back
Lead screw	X/Y/Z-axis screw diameter	Tr32/Tr32/Tr35MM
	Three-axis lead screw pitch	5MM
	Machine size (L * W * H)(MM)	1750*1700*2200MM
	Approximate machine weight	1580kgs
disposition	Accessories name	quantity
Standard parts for machine tools	1,Hand oil pump	1
	2,Work light	1
	3,Organ board + protective glue	1
	4,Lever	1
	5,Tools and toolboxes	1
	6,Operating instruction	1

Detailed Photos
Our Advantages
Certifications

FAQ
1What is the MOQ for your production?
A. The MOQ depends on your requirements for color, logo, etc. For some standard items in stock, the MOQ is just 1 set.
2How do you control the quality of your products?
A. We have always placed great emphasis on maintaining high-quality levels. Our guiding principle is to providecustomers with superior quality, competitive pricing, and excellent service.
3What are your company's main products?
A: We specialize in a wide range of machines, such as CNC Machines, Lathe Machines, Milling Machines, Grinding Machines, Vertical Machining Centers, DrillingMachines, Radial Drilling Machines, Sawing Machines, and more.
4. What are your trade terms?
A: Ex-works, FOB, CFR, and CIF are all acceptable.
5What are the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment.
6What CNC system do you use?
A: FANUC, SIEMENS, MITSUBISHI, SYNTEC, HCN. The choice depends on your preference.
7How can I choose the most suitable machines?
A: Send us the product drawings and applications; we will recommend the most suitable machines for you.
8What kind of packaging do you offer?
A. Normally, we use plywood cases to ensure all goods are in good condition. Customized packaging is also acceptable.
9Can your plant do OEM?
A: Yes, it is no problem. We can do OEM and ODM for any customers.
10How about the warranty?
A: The warranty period is one year after delivery. Even beyond this period, we provide lifetime service for the machines.
