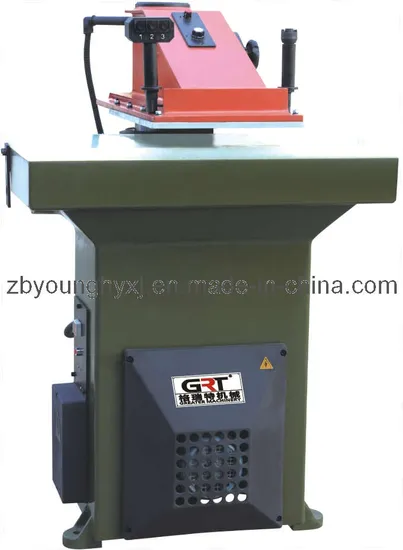

3keys Hydraulic Swing Arm Cutting Machine (Cutting Press)

Product Description

Product Description
USE AND CHARACTERISTICS
1. The machine is applicable to cutting of various nonmetal materials by cutting die.
2. The oil way system specially designed can conveniently adjust the rocker height. No adjustment is needed after the height of cutting die is changed.
3. High speed and low energy consumption.
4. To meet the need of frequent replacement of cutting die of different sizes, this type of machine that can timely output three kinds of cutting force is available for selection.
5. Ductile cast iron body made the machine be used for a very long time and small noise.
THE MACHINE INCLUDE PALLET,HYDRULIC OIL,CUTTING BOARD,TOOLS AND SPARE PARTS. Product Parameters

Model	GRT-S22(1+3)
Max cutting force	22T
Working area	900x430mm
Swing arm width	370mm
Cutting stroke	90mm
Motor power	1.1KW
Electric Supply Voltage	3x440/415/400/380/220/200V, 50/60 Hz
	Single phase 240V/220V, 50/60 Hz
Machines dimensions	900x820x1400mm
Packing size	1050x1000x1550mm
N. W(with oil)	650kg
G. W	740kg

Machine configuration

Machine configuration
Solenoid valve	Camel brand,made in TAIWAN
Oil pump	Camel brand,made in TAIWAN
Sealing ring	NOK brand,made in ITALY and Japan
Press switch	Fox brand,made in Italy
Potentiometer	Made in TAIWAN
Contactor, thermal relay	Schneider brand
