Chinese Machine Universal Bench Steel Engine Metal Manual Lathe
Basic Info.
Model NO.
GH1340G1
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
4-Way Toolpost
Power Source
Manual
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Name
Universal Bench Steel Engine Metal Manual Lathe
Max.Swing Over Bed
330mm
Distance Between Centers
1000mm
Tool Post Type
4-Way Toolpost
Spindle Motor
1.5kw
Chuck
Manual Chuck
Voltage
380V
MOQ
1 Set
Delivery Time
1 Month
Spindle Bore
38mm
Spindle Speed
70-2000rpm
Spindle Nose
D1-4
Width of Bed
186mm
Key Word
Bench Lathe
Control
Manual Lathe
Transport Package
Wooden Case
Trademark
BETA
Origin
Shandong, China
HS Code
8458190000
Production Capacity
100 Sets Per Month
Packaging & Delivery
Package Size
200.00cm * 200.00cm * 200.00cm
Package Gross Weight
1000.000kg
Product Description

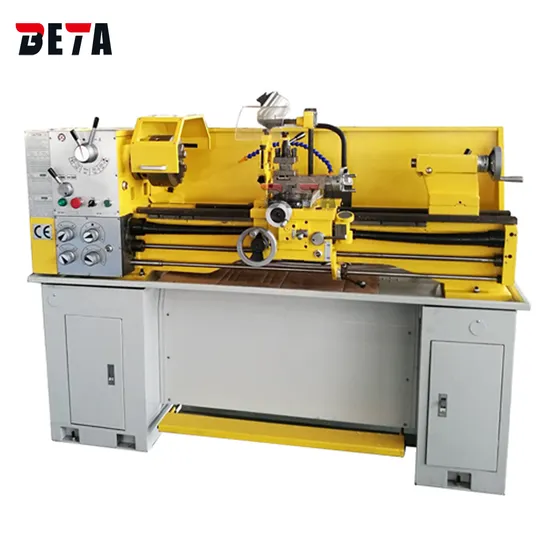

Chinese Machine Universal Bench Steel Engine Metal Manual Lathe GH1340G1Features:
1. Bench metal manual lathe is a small lathe that can complete the processing of lathes, drills, borings, metric and inch threads, and is suitable for the processing of metal and non-metal parts.
2. It is an instrument, light industrial machinery, motorcycle, auto parts and other industries and schools Ideal equipment for single-piece processing or mass production in teaching, automobile maintenance, home maintenance, scientific research units, etc.
| Model | Unit | GH1340G1 |
| Swing over bed | mm | φ330 |
| Swing over carriage | mm | Φ195 |
| Swing over gap | mm | Φ476 |
| Width of bed-way | mm | 186 |
| Distance between centers | mm | 1000 |
| Taper of spindle | M.T.5 | |
| Spindle diameter | mm | Φ38 standard , Φ51 optional |
| Step of speed | 8 | |
| Range of speed | rpm | 70~2000 |
| Head | D1-4 | |
| Metric thread | 26kinds (0.4~7mm) | |
| Inch thread | 34kinds(4~56T.P.I) | |
| Moulder thread | 16 kinds(0.35~5M.P) | |
| Diametral thread | 36 kinds(6~104D.P) | |
| Longitudinal feeds | mm/r | 0.052~1.392 (0.002"~0.0548") |
| Cross feeds | mm/r | 0.014~0.38 (0.00055"~0.015") |
| Diameter of lead screw | mm | φ22(7/8") |
| Pitch of lead screw | 3mm or 8T.P.I | |
| Saddle travel | mm | 1000 |
| Cross travel | mm | 170 |
| Compound travel | mm | 74 |
| Barrel travel | mm | 95 |
| Barrel diameter | mm | φ32 |
| Taper of center | mm | M.T.3 |
| Motor power | Kw | 1.5(2HP) |
| Motor for coolant system's power | Kw | 0.04(0.055HP) |
| Machine(L×W×H) | mm | 1920×750×760 |
| Stand(left) (L×W×H) | mm | 440×410×700 |
| Stand(right) (L×W×H) | mm | 370×410×700 |
| Machine | Kg | 524/550 |
| Stand | Kg | 111/115 |
| Loading amount | sets | 22 sets / 20'container |
| Voltage | - | 380V/50HZ/3PH |
