Long Life Chain Driven Heavy Duty Cow Dung Scraper

Product Description

Product Description

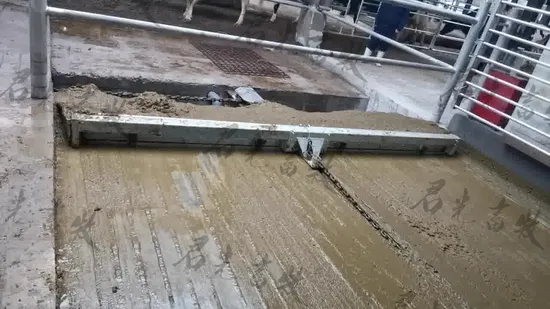

The system consists of motor, drive unit, steering wheel, transmission chain, manure cleaning scraper, control unit, etc. The working principle is that the drive unit drives the scraper through a chain to move backward and forward. When the scraper moves forward, it cleans the manure, when it moves backward, it does not. At the same time, frequency conversion technology and program writing are combined to achieve anti-collision and de icing functions while cleaning. It is suitable for cowshed with a one-way distance less than 120 meters manure passage.
Single axis steering scraper drive unit
Power: 1.5kw with reduction ratio of 1:246
Output shaft: 60mm, with a total of 6 steering wheels in a single system and maintenance free; Suitable for one-way manure cleaning passage less than 120 meters and dry environments.
With worm gear lifting system.
Flat scraper
Cross beam : 100 * 100 * 8
Scraper: Width less than or equal to 4.6m (The length needs to be customized according to the width of the cowshed manure channel)
Wear resistant foot material: 60Si2Mn.
Bridge guide rod: 1.2m
Wear resistant bottom plate of guide rod: Q345
Anti rolling and anti deformation
Steering wheels
Steel plate thickness: 10mm,T-shaped, anti twisting self guiding, 45 # steel, heat treated, maintenance free. Axis diameter: 30mm, graphite lubricated. 2 years maintenance free.
Control unit
Easy operation, double-layer anti-corrosion protection, stainless steel control box, with dual intelligent distance recognition mode (Hall sensor, current detection), reliable use, intelligent recognition of intermediate resistance and end resistance.
Patent technology.
Product Parameters
Power supply voltage: 380V,power output: 1.5kw, output shaft diameter 60mm;
Motor rated speed: 1440rpm, reducer speed ratio1:246, drive wheel using 45 # steel heat treated, thickness ≥ 80mm
Scraper:
Scraper: buffer type cattle protection scraper, crossbeam 100 * 100 * 8 square steel, overall hot-dip galvanized; The main and auxiliary scraper plates are made of 10mm thick steel plates and are hot-dip galvanized. Attached with 30mm custom wear-resistant rubber, the density of the rubber strip is 15 MPa;
Drive frame: Equipped with a professional elevator type drive platform, the motor bracket is made of 150 * 150 * 6 square steel, and the bracket foot plate is made of 10mm thick steel plate;
steering wheels: each wheel is equipped with maintenance free bearings, which are anti twisted and self guided. The box of the corner wheel is made of steel plate with a thickness no less than 10mm and resistant to forklift rolling;
Chain: 14mm x 50mm, 25MnV high-strength, wear-resistant, corrosion-resistant chain;
Control unit
Scraper speed: scraper standard speed: 4m/min, variable speed range: 4-6 m/min;Anti freezing: with low-temperature anti freezing adaptive function; Cow protection facilities: mechanical cow tail protection scraper
Advantages compared to similar products
Scraper return wear-resistant foot: 60Si2Mn elastic steel, heat treated, with a lifespan more than 5 times longer than ordinary casting materials;
steering wheel: T-shaped, heat treated 45 # steel wheel precision machined, anti chain twisting, self guiding to drive wheel;
Chain: High strength, wear-resistant, corrosion-resistant 25MnV chain, after secondary tensile treatment and heat treatment, with a breaking force greater than 25T;
Anti freezing: with low-temperature anti freezing adaptive function
Cow protection facilities: collision free distance recognition, with self memory function after power failure
When the middle of the cowshed is a manure ditch, a shared corner wheel needs to be installed at the manure ditch. It is necessary to pre embed H steel as the foundation for the shared corner wheel during the construction of the manure ditch. As shown in the figure below.
Three-axis corner wheels that are stronger than single axles and are suitable for longer working distance
Detailed Photos
Specially designed drive wheels
Graphite-lubricated corner wheels are used

corner wheel box
The scraper has a more scientific eccentric design
The steel plate is cut using a laser
Related products

Screw Press Separators	Milking parlor feces flushing system

Green Bedding Production System for Dairy Cows
Company Profile
We are a high and new technology company, specialized at dairy farm design, dairy farm equipment R&D,production,sales.The headquarter of our company located at Beijing,China, and the production basis located at Baoding City,Hebei Province,China.
With nearly 20 years experience, we can produce many dairy farm related equipment: biobedding recovery system, cow manure separator,cow manure scraper, cow fan, cow brush, cow headlock, cow free stall, cow mat, etc. More details can be checked by visiting our website: .
With more than 20 national technical patents, we have designed many 10000-head dairy farm projects, and have a good cooperation with the dairy farms as equipment supplier.
For any products you are interested, please do not hesitate let we know.
We will provide competitive price and good quality products.
FAQ
Q1. Are you a factory or trading company?A:We are a professional and comprehensive dairy farm equipment supplier integrating R&D, production and sales. Q2.May I visit your factory?A:Sure, we warmly welcome you all pay a visit to our company. We can arrange pick ups at airport and station. Q3: Can you guarantee your quality? A: Of course. We have about 20 years experiences in this field. We have skillful production,good workmanship as well as strict QC. we put high quality on our reputation.
