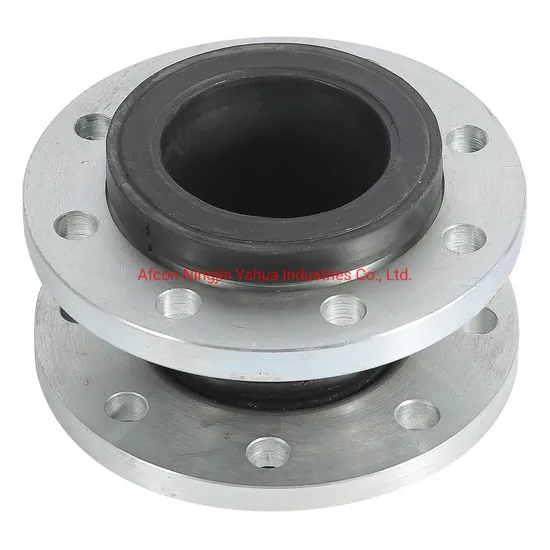

Single Sphere Flexible Flange Rubber Expansion Joint

Product Description

Single Sphere Flexible Flange Rubber Expansion Joint
Specifications:
Size: DN32 to DN1000
Class: PN10, PN16. PN25, 125LB, 150LB
Type: NBR/EPDM Body, Single sphere or double sphere, carbon steel galvanized flange, flanged end and threaded end, flange: Carbon steel
Material of different parts:
1.Body: WCB/ zinc carbon steel

2.Seat: EPDM /NBR
3. Reinforcement: Nylon cord
Pressure:
PN10, PN16, PN25
Fitting:
DIN,ANSI

Techinical Data:

Nominal Pressure PN(Mpa)	1.0	1.6
Burst Pressure(Mpa)	3.0	4.8
Working Temperature	-20~115
Medium	water, air, oli, acid, etc

Strengths of expansion joint:
Small size, lightweight, easy to install and maitain, good performance, and with different color, different material quality.
