Dry Mix Concrete Gunite Shotcrete Spraying Machine for Swimming Pool Pond
| US$3,000.00-7,900.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
LZ-5A
Machining Process
Welded Molding Machine
Structure
Spiral Type
Productivity
2.5-5.5m 3 /H
Feeding Height
1.17m
Certification
ISO9001: 2000, CE, SGS
Condition
New
Color
Customised
Output Capacity
2.5-5.5m 3 /H
Suitable Mix Ratio(Cement/Sand)
≤1:3~5
Max. Aggregate Size
15 mm
Conveying Hose Inner Diameter
51 mm
Conveying Pressure
0.2-0.4MPa
Transport Package
Plastic Wrap, Plywood Case, Free-Fumigation
Specification
ISO
Trademark
Leadcrete
Origin
China
HS Code
84743100
Production Capacity
5000 Sets/Year
Product Description

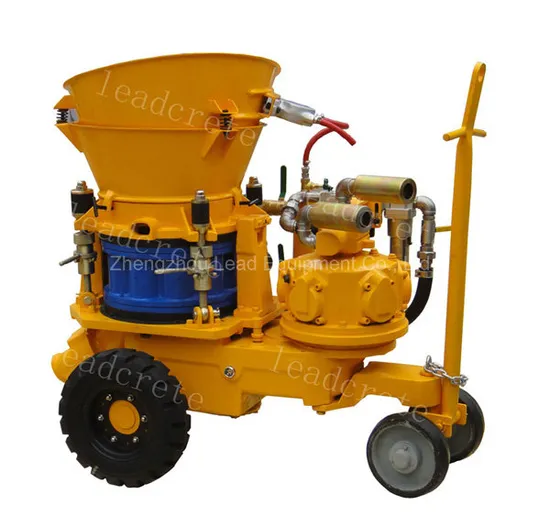

dry mix concrete gunite shotcrete spraying machine for swimming pool pondLZ-5 is LEC medium-sized shotcrete machine for the processing of dry mix. And it is widely accepted and used by so many contractors.
LZ-5 can be used for tunneling, mining operations, hydropower projects and hill side projects, etc.
LZ-5 is available in following versions:
Air motor drive, electric motor drive or diesel drive combined with skid or rail-wheel
Basic: Electric drive can be combined with tyre chassis
Extended (optional): Electric motor drive with variable speed gearbox, air motor drive Or diesel drive combined with Skid or Rail-wheel
Features:
Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life.
| type | air motor drive |
| Output Capacity | 2.5-5.5m 3 /h |
| Max. Horizontal Conveying Distance | 200m |
| Suitable Mix Ratio(Cement/Sand) | ≤1:3~5 |
| Max. Aggregate Size | Φ15 mm |
| Conveying Hose Inner Diameter | Φ51 mm |
| Conveying Pressure | 0.2-0.4MPa |
| Air Consumption for conveying material | 7~8m 3 /min |
| Air Motor Air Pressure | 0.5MPa |
| Material Charging Height | 1.1m |
| Rotor Speed | 11rpm |
| Air Motor Type | TMH6A |
| Air Motor Air Consumption | 7.5m 3 /min |
| Overall Dimension(length×width×height) | 1.35×0.75×1.2m |
| Net Weight | 720kg |
