Heavy Duty Cw61125 Horizontal Manual Lathe Machine 4-Jaw Chuck Lathe Machine for Metal Manual Lathe

Product Description

Product Description
This series lathe machine is suitable for internal and external turning, tappering, and other rotating faces, metric, module and inch threads, as well as drilling and pull oil slot. This machine could machining steel, casting, nonferrous metals and etc. The dimensional accuracy of machined workpiece could reach to IT6-IT7, and with good surface roughness. The Machine with handle breaker, easy to operate, safe and reliable.
Product Parameters

Item	Unit	CW61100	CW61125	CW61160
Swing over bed	mm	1000	1250	1640
Swing over carriage	mm	615	865	1250
Maximum length of workpiece	mm	1500-18000	1500-18000	1500-18000
Maximum turning length	mm	1300-17800	1300-17800	1300-17800
spindle speeds(	r/min	3.15-315	3.15-315	3.15-315
Span of guideway	mm	755	755	755
Spindle nose	mm	A2-15(8XM22)	A2-15(8XM22)	A2-15(8XM22)
Spindle bore	mm	130	130	130
Taper hole of spindle		1:20/140	1:20/140	1:20/140
Number of forward turning speeds		21	21	21
Number of reverse turning speeds		12	12	12
Number and range of metric thread		44;1-120mm	44;1-120mm	44;1-120mm
Number and range of inch thread		31;28-1/4	31;28-1/4	31;28-1/4
Number and range of module thread		45:0.5-60mm	45:0.5-60mm	45:0.5-60mm
Number and range of diametrical pitch thread		38:1/2-56DP	38:1/2-56DP	38:1/2-56DP
Distance between spindle center-line and tool resting plane	mm	48	48	48
Section of tool shank	mm	45	45	45
Rapid travel speed(longitudinal)	mm/min	3740	3740	3740
Rapid travel speed(Transverse)	mm/min	1870	1870	1870
Rapid travel speed(Top slide)	mm/min	935	935	935
Diameter of tailstock quill	mm	160(6")	160(6")	160(6")
Travel of tailstock quill	mm	300(12")	300(12")	300(12")
Taper hole of tailstock quill		Morse 6	Morse 6	Morse 6
Main motor power	kw	22	22	22
Maximum weight of workpiece	kg	6000	6000	6000

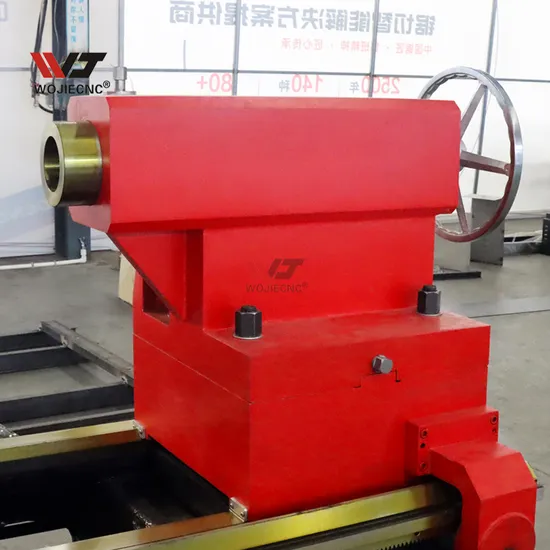

Detailed Photos



Company Profile
ZAOZHUANG WOJIE CNC MACHINERY Co., LTD. has:
More than 60,000m² of the factory with more than 150 workers. Strictly QC control with more than 24 steps testing processes 30+ years CNC machine manufacture experience factory 24 hours online service at any time Trade with customers in more than 150 countries around the word. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect. Support ODM OEM. Warranty time is 24 months Certifications
FAQ
1. What are the payment terms?
A: T/T, 30% down payment when ordering, 70% balance before shipment; irrevocable L/C at sight.
After receiving the advance payment, we will start production. After the machine is ready, we will take pictures and videos for you to inspect the machine. After paying the balance, we will send the machine to the designated location according to your instructions.
2. What does your company mainly produce?
A: Our company is a professional machine tool manufacturer with many years of experience. The company mainly produces CNC milling machines, CNC lathes for machining centers, ordinary milling machines, ordinary lathes, hydraulic presses, etc.
3. When is the delivery time?
A: If the machine you ordered is a standard machine, we can prepare the machine within 15 days. If it is some special machines, the delivery time is about 30 days. Some machine models will be in stock, please consult the salesperson for details.
4. What are your trade terms?
A: FOB, CFR, CIF, DDP, DAP, FCA, etc.
5. What is your minimum order quantity and warranty period?
A: The minimum order quantity is 1 set, and the warranty period is 2 years. But we will provide lifetime service for the machine.
6. What is the packaging of the machine?
A: The machine is placed on a metal pallet, covered with a moisture-proof coat inside, and wrapped with plywood all around.
