Whole Set High-Quality Special Shape Chocolate Wafer Biscuit Production Line Factory

Product Description

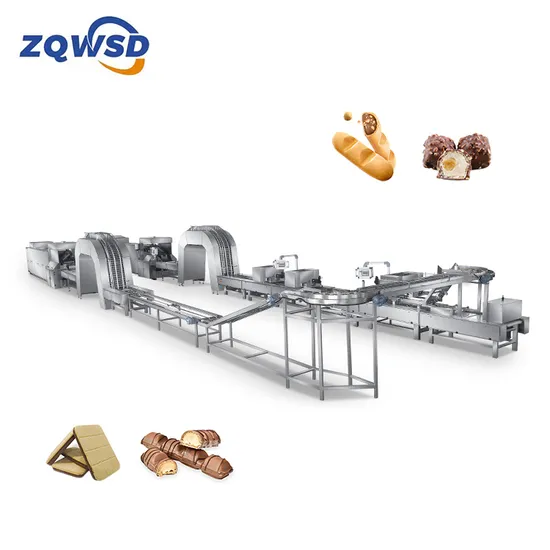

Wafer Biscuit Production Line

The whole line consists of:

NO.	Machine Name	Quantity (set)
1	Automatic Tunnel Baking Oven	1
2	Sheet Receiver	1
3	Cooling Machine	1
4	Sheet Picking machine	1
5	Cream Spreading machine	1
6	Cooling Cabinet	1
7	Laminating Machine	1
8	Cutting Machine	1
9	Wafer Batter Mixer	1
10	Cream mixer	1
11	Smashing machine	1
12	Electric Control Cupboard	1

Descriptions :
1. Automatic wafer baking oven:Equiped with Touch-screen and programmed by Siemens . PLC Software ,this unit is of electruc power or LPG,LNG to generate the heat energy to make wafer the wafer biscuit.
2. The equipment is easy to operate which with automatic temperature control ,lighting ,making mixer ,blowing ,sheet splicing to finish the baking process


Main Technical Parameter of Baking Oven:

No. of Heating Plates	27, 33, 45, 51, 57, 63, 69, 75 and so on
Baking Plates Size	470x325mm
Patterns of plates	2.5x2.5x0.9mm or 3.0x3.0x0.9mm
Output	up to 6~40 sheets/min
Thick of the biscuit	2.0mm~5.0mm
Inside Baking	Cleaning device
Dimension	6000x1620x2200mm

1. Material: Shell adopts 304 Stainless Steel, Siemens of Mitsubishi to control, SKF high temperature bearing, SEW Motor, Italy Buring Systerms.
2. Material of Baking Plates: Gray Cast Iron,Special Steel ,Copper.
3. Baking Plates temperature adjustable: Normal temperature to 200 °C
4. Inside Baking Cleaning device

Prefect After-sales
1. one year guarantee
2. our technical staff will install the machine fo the client when the machine arrive the clients' place
3. we will help the client solve the machine problem in the future time
Thank you for your visiting,
hope to establish good relationship with you!

Zhaoqing City WanShunDa Foodstuff Machinery Manufacture Co., Ltd
Add: No,23 Dongsheng Road, District, Jindu Industrial Park, Gaoyao, Zhaoqing City, Guangdong, China
