Solar Powered Mobile Containerized Swro Well Sea Water Seawater Desalination System Price Industrial RO Reverse Osmosis Mineral Drinking Water Treatment Plant

Product Description

containerized Salt Water RO Drinking Reverse Osmosis Sea Water Treatment Plant Price Swro RO Sea Water Seawater Desalination Plant

Features Salted water is not always the same. Depending on whether they come from warm or cold oceans, closed or open seas, their salt content will vary. This is a short comparison between samples:

Please Attention
All the source water quality is not always the same. This is a short comparison between samples:
Item	source water(Saltness)	Simple TDS(Total disolved solid) range
1	Tap water: 0.1-7mg/l	TDS range: 100ppm to 700ppm
2	Brackish/River water:0,7 to 10 g/l	TDS range: 700ppm to 10000ppm
3	Northern Sea close to estuaries :21 g/l	TDS range: 10000ppm to 21000ppm
4	Atlantic Ocean :35 g/l	TDS 35000ppm
5	Mediterranean Sea :38 g/l	TDS 38000ppm
5	Arabian Sea :45 g/l	TDS45000ppm
6	Red sea: 41g/L	TDS 41000ppm
7	Dead Sea :300 g/l.	TDS 300,000ppm
Mark: Pls adivse your source water TDS,Iron, Manganese, Bacterials and etc. It is better make a water test report. so that design the ideal propsal.

SWRO Process steps introduction

Pre-treatment	Feed water pump, Stainless steel 316L	Provide pressure for filters;
	Quartz sand filter	Remove suspended particle and large impurity. In this system;
	Active Carbon Filter (option)	Remove the color, free chloride, organic matter, harmful matter, ect;
	Anti-scalant system	To add chemicals to remove some impurities and prolong thememebranes using/washing time(prevent membrane blocking)
	Manual/Auto control valves	Flushing sand/carbon filter after some time
	5micron filter	Remove larger than 5 micro colloids in the water. In this system
	1micron filter	Remove larger than 1 micro colloids in the water. In this system
Seawater RO Main Part	High pressure pump, Stainless steel 316L	Provide the high pressure to RO membrane;
	Ro membranes	More than 98% desalination rate, can remove ions except H2O.
	CIP system	To washing the membranes when it is blocked after using for long time
	Electronic control panel	PC controller or PLC and HMI controller

60m3/hr filters with 45m3/hr RO system
Mineral water plant
10m3-20m3/Day Seawater Desalination Plant
SWRO process flow chart:
Large scale ro desalination plants

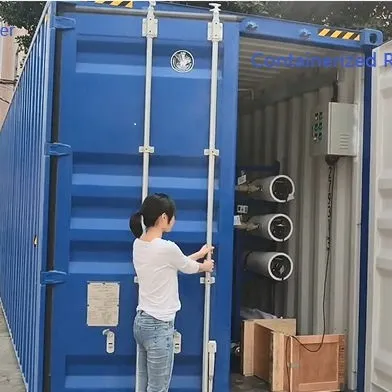

Containerized Reverse osmosis plant
Product Parameters

HY-SWRO-8~9m3/hr(200m3/D) ro seawater desalination plant
Flow rate	160T/day	Recovery rate	45%
Applicable power	380V/50HZ 3 phase	Rated power	53KW
Feedwater TDS	<45000ppm	freshwater TDS	<600ppm
Working pressure	<6Mpa	operating temperature	5-45ºC
Feedwater residual chlorine	<0.1ppm	Feedwater SDI	<5
Feedwater turbidity	<1NTU	Feedwater PH value	PH 3-10
RO membrane housing	8040-5 core,3piece	RO membrane	15 piece
Equipment specification	7.5X1.2X1.65(m) L*W*H	Net weight	2500Kg
Packing specification(Plywood)	7.5X1.2X1.65(m) L*W*H	Gross weight	2800Kg

Related SWRO

Below is 20GP container capacity paramete
Model	Membrane model*qty	Capacity m3/D	Weight/kg	Operating Pressure/Mpa	Power
HYSW-20GP-20	4040×8	20	2800	4.0-6.5	220V-440V/ 50Hz-60Hz
HYSW-20GP-26	4040×10	26	2860	4.0-6.5
HYSW-20GP-30	4040×12	30	2920	4.0-6.5
HYSW-20GP-40	4040×16	40	3030	4.0-6.5
20GP Container-frame: 20 ft according to ISO- standard (5.85x2.23x2.15 meter).
·suit for long-distance transport ·easy installation ·save space for customers More detail need customized according user requirement.

(option) Solar powered seawater desaliantion plants

Containerized RO plant
Mobile Water treatment plant
