China HDPE Plastic Jerry Can, Big Toy, Bucket Making Blowing Moulding/Molding Machine
| US$34,000.00-44,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
PXB70A
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Bottom Blowing
Available
Material
PP, PE, ABS...
Total Weight
7.8t
Output(Dry Cycle)
700 PC/Hr
Die Head Option
Accumulator Head
Transparent Line
Available
Production Usage
Toys, Auto Parts, Sprayers, etc
Multi-Layer
Available
Multi-Color
Available
Screw Diameter
70mm
Transport Package
Film Packing with Wooden Bottom
Specification
Max capacity 20L
Trademark
Puxin
Origin
Suzhou
HS Code
847730100
Product Description

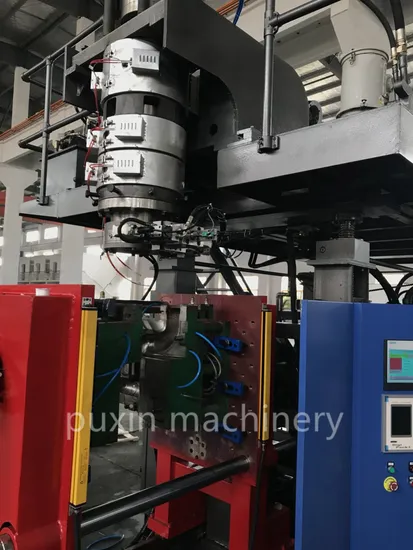

PXB70A
12L - 20L Blow Molding Machine
- Fixed station & Accumulator head
- Perfect usage for toys, auto parts, high pressure sprayer, etc.
- Fast start-up speed, energy saving.
- Optional internal thread rotary bottom blow system.
Configuration List
| PLC | MITSUBISHI | Japan |
| Touch Screen | HITECH | Taiwan |
| Inverter | MITSUBISHI | Japan |
| Power Supply | MEAN WELL | Taiwan |
| Relay | OMRON | Japan |
| Hydraulic Valves | YUKEN | Japan |
| Hydraulic Pump | SETTIMA | Japan |
| Contactors | LS(LG) | Korea |
| Solid relay | FOTEK | Japan |
| Breaker | LS(LG) | Korea |
| Temperature Control Module | MITSUBISHI | Japan |
| Oil Sealing | DZ | Taiwan |
| Oil Tube | LIEBAO | Taiwan |
| Transducer | GEFRAN | Italy |
| Proximity Switch | SONON | China |
| Motor | DMASS | German |
| Air valve | FESTO | German |
| Parison control | MOOG | Japan |
Parameters
| Specifications | ||
| Material | PE,PP, ABS... | |
| Max container capacity | L | 20 |
| Output(dry cycle) | Pc/hr | 700 |
| Machine Dimension(LxWxH) | M | 4.3x1.7x3.9 |
| Total weight | T | 7.8 |
| Clamping Unit | ||
| Clamping force | KN | 130 |
| Platen opening stroke | mm | 300-850 |
| Platen size | mm | 680*600 |
| Max mould size(WxH) | mm | 460*600 |
| Mould thickness | mm | 310-380 |
| Power | ||
| Servo oil pump motor power | KW | 15 |
| Servo pump displacement | L/Min | 80 |
| Cooling Water Pressure | MPA | 0.3 |
| Air pressure | MPA | 0.8 |
| Air consumption | M3/min | 0.7 |
| Average energy consumption | KW | 18-22 |
| Extruder unit | ||
| Screw diameter | mm | 70 |
| Screw L/D ratio | L/D | 24 |
| Melting capacity | Kg/hr | 80 |
| Number of heating zone | zone | 3 |
| Extruder heating power | KW | 12.6 |
| Extruder driving power | KW | 22 |
| Die | ||
| Number of heating zone | zone | 5 |
| Power of die heating | KW | 20 |
| Max die-pin diameter | mm | 200 |
| Accumulator capacity | L | 3 |
Delivery Time:
- No later than 50 days after receipt of the deposit
Training:
- We provide training service for two or three operating men for free (but the cost for trainer's board and lodging is not included).
Installation:
- The supplier will send one specialist to test run the machine until it is running in normal state.
Guarantee:
- Our guarantee is valid for a period of 12 months. If the malfunction caused of the machine's self quality, we will troubleshoot it for free.
Auxiliary Equipments:
- Auxiliary equipments for production line are available and optional, please kindly ask for quotation.
