Quality Aluminum Adjustable Lamp Angle 5W 7W 12W 15W 25W COB Trunk Gimbal Ceiling Spotlights Elephant Cylinder Downlights

Product Description

Quality Aluminum Adjustable Lamp Angle 5w 7w 12w 15w 25w COB Trunk Gimbal Ceiling Spotlights Elephant Cylinder Downlights
Product advantages of Quality Aluminum Adjustable Lamp Angle 5w 7w 12w 15w 25w COB Trunk Gimbal Ceiling Spotlights Elephant Cylinder Downlights

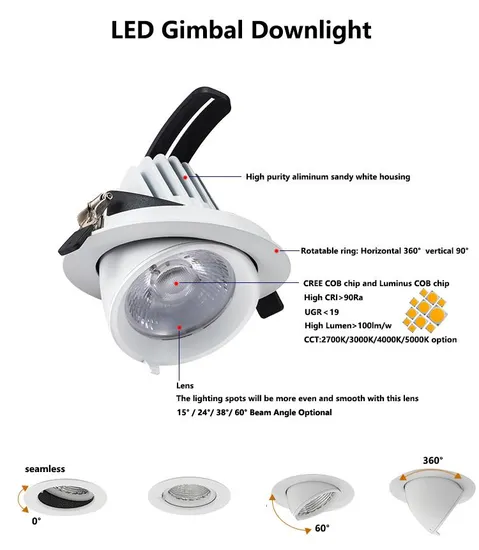

1. High quality aluminum white housing, long lifetime
2. Rotation ring: Horizontal 360 degree and vertical 90 degree, meet various lighting angle requirements
3. High lumen output efficiency >100lm/W
4. High PF >0.95, high CRI>90Ra
5. Famous brand LED chips and driver, small light decline rate
6. Adjust the light size according to the size of different objects
7. Light will be more even and smooth with the lens of 15/24/38/60 degree beam angle optional
1) Support almost all the famous light source;
Perfectly compatible with the same light fixture, same size, but different light source (Epistar, Cree, Citizen).
2) Perfect secondary optical design;
Beautiful light spot for wide/medium/small beam angle.
3) Physically waterproof and dustproof;
The highest IP rating reaches IP44
4) Greatly enhance the cold lumens;
Customized 100LM/W or >100LM/W , CRI>90
Warm white = 2700K-3200K
Natural white = 4000K-4500K
Pure white = 5000K-5500K
Cool white = 6000K-6500K
5) Non-flicker Driver;
Support color changing dim; 1-10V dim; Dali dim etc.
6) 3-5 years warranty
Free replacement & maintenance under warranty.
Our quality control (4 times 100% checking and 24 hours aging)
Raw material 100% check before production.
Order must have a first sample and full check before manufacturing process.
100% check before aging.
24 hours aging with 500 times on off testing.
100% final inspection before packing.
Product Specification of Quality Aluminum Adjustable Lamp Angle 5w 7w 12w 15w 25w COB Trunk Gimbal Ceiling Spotlights Elephant Cylinder Downlights

Model

Power

Size(mm)

Voltage

Cut out (mm)

Lumen

Chip

Color temperature

CRI (Ra)

Beam angle

PF

Dim

Shell color

MLD03-5W

5W

D85*H76

220-240V

ø75

400-425lm

Epistar COB

2700-6500K

>80 or 90

15/ 24°

0.5

Triac/0-10V/DALI

White

MLD03-7W

7W

D85*H76

220-240V

ø75

560-595lm

Epistar COB

2700-6500K

>80 or 90

15/ 24°

0.5

Triac/0-10V/DALI

White

MLD03-10W

10W

D110*H90

220-240V

ø95

800-850lm

Epistar COB

2700-6500K

>80 or 90

15/ 24°

0.5

Triac/0-10V/DALI

White

MLD03-12W

12W

D110*H95

220-240V

ø95

960-1020lm

Epistar COB

2700-6500K

>80 or 90

15/ 24°

0.5

Triac/0-10V/DALI

White

MLD03-15W

15W

D110*H95

220-240V

ø95

1200-1275lm

Epistar COB

2700-6500K

>80 or 90

15/ 24°

0.5

Triac/0-10V/DALI

White

MLD03-20W

20W

D140*H120

220-240V

ø125

1600-1700lm

Epistar COB

2700-6500K

>80 or 90

15/24/38°

0.95

Triac/0-10V/DALI

White

MLD03-25W

25W

D140*H120

220-240V

ø125

2000-2125lm

Epistar COB

2700-6500K

>80 or 90

15/24/38°

0.95

Triac/0-10V/DALI

White

MLD03-30W

30W

D165*H145

220-240V

ø145

2400-2550lm

Epistar COB

2700-6500K

>80 or 90

15/24/38°

0.95

Triac/0-10V/DALI

White

MLD03-35W

35W

D165*H145

220-240V

ø145

2800-2975lm

Epistar COB

2700-6500K

>80 or 90

15/24/38°

0.95

Triac/0-10V/DALI

White

MLD03-40W

40W

D190*H155

220-240V

ø175

3200-3400lm

Epistar COB

2700-6500K

>80 or 90

15/24/38/60°

0.95

Triac/0-10V/DALI

White

MLD03-45W

45W

D190*H155

220-240V

ø175

3600-3825lm

Epistar COB

2700-6500K

>80 or 90

15/24/38/60°

0.95

Triac/0-10V/DALI

White

MLD03-50W

50W

D190*H155

220-240V

ø175

4000-4250lm

Epistar COB

2700-6500K

>80 or 90

15/24/38/60°

0.95

Triac/0-10V/DALI

White

Application of Quality Aluminum Adjustable Lamp Angle 5w 7w 12w 15w 25w COB Trunk Gimbal Ceiling Spotlights Elephant Cylinder Downlights
Company Information
Shenzhen (Huizhou) More Green Light has been in the lighting field since 2011 and we are specializes in manufacturing high quality commercial LED lighting products. We serve customers in commercial industries, offering a full range of specifications lighting products.
We design and manufacture lighting products including LED Track lights, Rotatable LED Track light, Anti-glare LED track light, Zoomable adjustable LED Track Light, Built-in driver LED Track light, Surface mounted LED Track light, Surface mounted Round Downlight, LED Recessed Downlight, LED Gimbal Downlight, Waterproof IP65 Recessed Downlight, Anti-glare LED Downlight, one/two/three head Series of LED Downlight, LED Grille Lights, Square LED Grille Lights, Round LED Grille Lights, LED Linear Track Light, LED Recessed Linear track Light, T8 Radar LED Tube light, LED Tri-proof linear light, Solar Garden Lights, Solar Fan, Solar Camera, camping light and other lighting accessories etc.

Our products are qualified to CE, SAA,TUV, FCC, CSA, Energy Star standards and compliant with RoHS. We are proud of the professional lighting testing equipment and excellent management team consist of expert engineer, skilled technical persons and well-trained team of assembly line workers. By access a great amount of resources which enable us to provide our consumer the highest quality LED Lights in the industry. OEM ODM services are provided to meet various client's requirements and help each other success.

Honest, quality, customer services are the foundations of long term cooperation with our clients. Responsibility is what keep us growing and win the client trust. We cherish the reputation a lot and hope to become one of your long term friends and business partners.
FAQ
Q1. Can I have a sample order?
A: Yes, sample order for checking quality are welcome. Mixed samples are acceptable.
Low MOQ, 2pc for sample checking is available, please contact us for sample shipping
Q2. What about the lead time?
A: For sample, it takes about 3-5 work days, mass production time needs 1-2 weeks for order quantity more than 5000pcs.
Q3. What payment methods do you support?
A: T/T, Paypal, Western Union etc.
Q4. How do you ship the goods and how long does it take to arrive?
A: For small quantity, usually ship by DHL, UPS, FedEx, TNT as client required.
For mass order, weight more than 45kgs, we can also provide LCL, FCL sea shipment, airport-to-airport cargo, but you need declare the custom at your side.
All price quoted are based on EXW factory price
Q5. Is it OK to print my logo on purchased product?
A: Yes. Labeling is available. Please contact us for different product and its MOQ for labeling and your label design.
Q6: Do you offer guarantee for the products?
A: Yes, 2-5 years warranty are offered according to different products.
Q7: What is your company main products?
A: More Green Light major product is LED Track lights, Rotatable LED Track light, Anti-glare LED track light, Zoomable adjustable LED Track Light, Built-in driver LED Track light, Surface mounted LED Track light, Surface mounted Round Downlight, LED Recessed Downlight, LED Gimbal Downlight, Waterproof IP65 Recessed Downlight, Anti-glare LED Downlight, one/two/three head Series of LED Downlight, LED Grille Lights, Square LED Grille Lights, Round LED Grille Lights, LED Linear Track Light, LED Recessed Linear track Light, T8 Radar LED Tube light, LED Tri-proof linear light, DC LED lights, Solar lights, Solar fan, Solar camera, DC voltage Lights Camping light and other lighting accessories etc
Q8: How we ensure the quality products to our partners?
A: 1. More than 8 years experience for producing led solar light,
2. Quality is our life, all goods will be 100% aging and 100% test before delivery,
3. Following our Year-end statistics, the Defective rate is under 0.2%,
4. As an export-oriented factory, from coming material inspection, sample produce and test, mass production, aging test, packaged and delivery it, have strict operating requirement.
Warm welcome your inquiry, your inquiry or questions will be reply within 24 hours!
