Xiong Qiu High Quality High Speed ABA 3 2 Layer Mini HDPE LDPE PE Blown Film Extruder Agriculture Polyethylene Plastic Film Blowing Machine
| US$25,000.00-30,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
FM2-800S2
Maximum Folding Width of Film
1500mm
Screw Diameter
75mm
Automation
Automatic
Computerized
Computerized
Machine Weight
8T
Certification
CE, ISO9001:2008
Type 800mm
L*W*H: 5m * 2.8m * 4.7m
Voltage
380V 50Hz 3phase
Die Diameter
80mm
Air Ring Diameter
180mm
Color
as Request
Max.Output
70kg/H
Warranty
1 Year
After-Sales Service
Engineers Available to Service
L/D
30:1
Film Thickness
0.02-0.2mm
Transport Package
Plastic Film for Container Shipment
Specification
ABA 2 layers
Trademark
Xiongqiu Plastic Machinery Co., Ltd.
Origin
Foshan, Guangdong Province
HS Code
8477300000
Product Description
Xiong qiu high quality High Speed ABA 3 2 Layer Mini HDPE LDPE PE Blown Film Extruder Agriculture Polyethylene Plastic Film Blowing Machine| Model | FM-800 | FM-1100 | FM-1300 | FM-1700 | FM-1800 | FM-2000 |
| suitable material | LDPE / LLDPE / HDPE | |||||
| thickness | 0.02---0.20mm | |||||
| film width | 750mm | 1000mm | 1200mm | 1500mm | 1700mm | 2000m |
| max output | 65kgs/hr | 85kgs/hr | 125kgs/hr | 150kgs/hr | 175kgs/hr | 250kgs/hr |
| Extruder | ||||||
| screw diameter | Φ45mm*2 | Φ50mm*2 | Φ55mm*2 | Φ65mm*2 | Φ70mm*2 | Φ75mm*2 |
| L/D rate | 30:1 | |||||
| temp. controller | 10 zone | 10 zone | 10 zone | 12 zone | 12 zone | 13 zone |
| barrel cooling | 120w*4 | 120w*4 | 120w*4 | 120w*4 | 250w*6 | 250w*6 |
| driving motor | 11kw*2 | 15kw*2 | 18.5kw*2 | 22kw*2 | 30kw*2 | 30kw*2 |
| Die head | ||||||
| die diameter | Φ180mm | Φ250mm | Φ250mm | Φ350mm | Φ450mm | Φ630mm |
| air ring diameter | Φ280mm | Φ350mm | Φ350mm | Φ450mm | Φ550mm | Φ900mm |
| die structrue | Spiral mandrel die chrome plated surface 40Cr | |||||
| cooling fan | 1.5kw | 1.5kw | 2.2kw | 3kw | 4kw | 4kw |
| Take up part | ||||||
| take up width | 800mm | 1100mm | 1300mm | 1700mm | 1800mm | 2200mm |
| effective width | 700mm | 1000mm | 1200mm | 1600mm | 1700mm | 2100mm |
| take up motor | 1.5kw | 1.5kw | 1.5kw | 2.2kw | 2.2kw | 3.7kw |
| Winder | ||||||
| winder width | 800mm | 1100mm | 1300mm | 1700mm | 1800mm | 2200mm |
| effective width | 700mm | 1000mm | 1200mm | 1600mm | 1700mm | 2100mm |
| winder motor | 30kg | 30kg | 50kg | 50kg | 80kg | 100kg |
| optional equipment | auto-loader, film surface treater, air compressor,fast change net, double-center rewinder/auto rewinder, flat winder with row roller, rotary die head and double-wind air ring. | |||||
2 engine ABA film blowing machine is widely used in componud film, insulated film and all kinds of agricultural film. Such thin film has good separation which is able to meet the quality requirements of following packaging and printing machines for films.

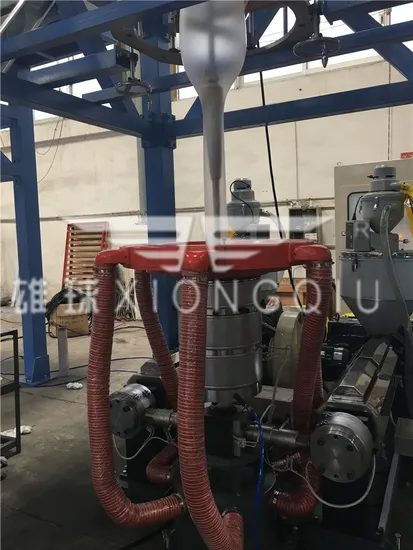

Pictures for reference:
