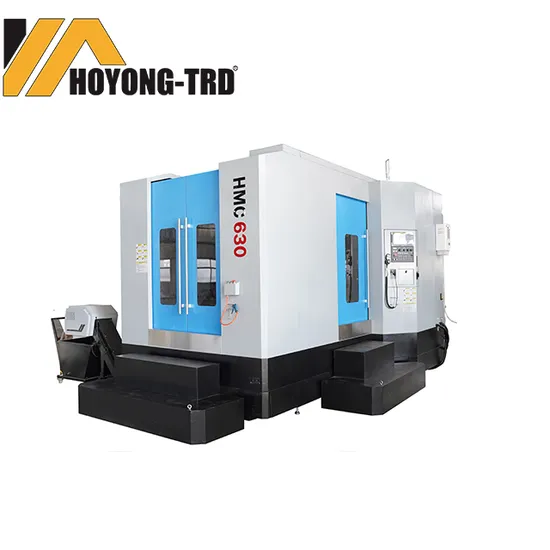

High-Quality Heavy Duty CNC Horizontal Machining Center Hmc630

Product Description

1.Machine summary:
This machine tool is a double-station horizontal machining center, which adopts a T-shaped bed and is controlled by FANUC CNC system.It has functions such as automatic exchange of worktables, automatic indexing of turntables, and infinitely variable speed of spindles.It can make Straight line, diagonal and arc interpolation cutting, finish milling, boring,drilling,reaming,tapping etc to achieve four-side processing.It is suitable for the machining of box parts and complex parts in automobile, aerospace, metallurgical mining, machine tool manufacturing and so on.Machine tool has the characteristics of high efficiency, high precision, high rigidity and so on. It is an efficient equipment for enterprises to improve working efficiency and improve flexible machining of parts. It is also an ideal equipment for machining large and medium batches of parts.
Machine characteristic:
1.wide machining range,max. work piece size Φ1000×900mm;
2.X,Y,Z adopt heavy-load roller linear guide ways, improving machine's rigidity;
3.Using the international advanced high-speed silent lead screw improves the positioning accuracy of the machine tool.
4. 60m/min rapid feed speed reduces machining time and improves machining efficiency;
5.The machine tool adopts T-shaped integral bed, and the structure is more reasonable through finite element analysis in the design process;;
6.with advanced Fanuc 0i MF or Siemens system;high stability, fast speed;
7.The B-axis servo motor drives the table to rotate through the worm gear reduction.
8.Rotary table with automatic indexing function, tooth plate positioning and high positioning accuracy.
9.Spindle adopts direct drive spindle, high speed, no vibration, high processing accuracy
10.The headstock lift adopts nitrogen-hydraulic balance cylinder, which enhances the lift response speed;
11.The machine tool is equipped with a sealed guide rail protection cover, and the X and Y direction protection cover adopts an integral wall type protection cover, which enhances the protection level of the machine tool, effectively protects the guide rail and the lead screw, and prolongs its service life;
12.The machine tool adopts fully closed outer protection to prevent the spatter of cutting fluid during rapid machining.
13.The operating system is grounded, which is convenient for users to operate and greatly protects the operator's safety.
14.The front part of the machine is equipped with a door which has large opening to facilitate the operator to change the workpiece.
15.The machine is equipped with Taiwan famous brand tool magazine, 40pcs tool magazine,ATC.
16.The machine tool is equipped with an automatic lubrication system. It is controlled by an independent PLC and automatically distributes the oil according to the operating distance, which greatly reduces the waste of lubricant and avoids the decrease of the life of the lead screw and linear guide due to the lack of lubricant.
17.There is an automatic chip removal device in the middle of the machine bed. The chain plate chip conveyor discharges the iron chips under the spindle to the chain plate type chip conveyor at the back of the bed. After the chain plate type chip conveyor is lifted, the iron chips are collected into the chip collection In the car, the residual heat on the iron filings is quickly taken away, and the precision of the machine tool is more stable.
18.The rear guide rail of the bed is stepped, with a low front and a high back, and a large height difference , which can not only reduce the weight of the moving parts (columns) and improve the response speed of the machine tool, but also offset the backward overturning moment of the machine tool during cutting and improve the machining stability of the machine tool .

Model					HMC630	Unit
Table	Table size				630×630	mm
	quantity				1	pc
	Max. Load				1200	Kg
	Table				T slot	mm
	Minimum division unit				1°	degree
	Highest speed of turntable				16.7	rpm
Machining range	Maximum column travel - X axis				1100	mm
	Maximum travel of headstock - Y axis				900	mm
	Maximum travel of table - Z axis				1000	mm
	Maximum workpiece turning diameter				1000	mm
	Distance from spindle axis to work table			Max.	950	mm
				Min.	50	mm
	Distance from the center of the table to the front end of the spindle			Max.	1200	mm
				Min.	200	mm
Spindle	Taper (7:24)				BT50
	Highest speed				10000	r/min
	Max. Output torque				260	N·m
	withstand the maximum axial resistance				18000	N
	Motor power				22	Kw
	quill dia.				Φ190	mm
	max. Tapping dia.	casting			M20	mm
		Carbon Steel			M16
Feed system	X,Y,Z servo motor power				7	Kw
	B axis servo motor power				4	Kw
	Cutting feed speed range				1-12000	mm/min
	Rapid feed	X			60000	mm/min
		Y			60000
		Z			60000
Tool magazine	type				Manipulator type
	capacity				20/24	pcs
	Max. Tool dia.				125/250	mm
	Max. Tool length				400	mm
	Max. Tool weight				25	kg
	Tool change time (tool-tool)				4.7	s
Positioning accuracy	Standard GB/T 18400.4		X		0.008	mm
			Y		0.008
			Z		0.008
			B		8	arcsec
Repeat positioning accuracy	Standard GB/T 18400.4		X		0.004	mm
			Y		0.004
			Z		0.004
			B		2	arcsec
Cnc controller	type				FANUC 0i MF(1)
	Total number of controlled axes				5	Axes
	Number of linkage control axes				4	Axes
Electrical requirements	Power Requirements				50KVA,3ph,380V,50HZ
	Air source requirements				0.5-0.7MPa
Dimensions	Length				6300	mm
	Width				4300	mm
	Height				3500	mm
	Machine weight				16000	Kg
