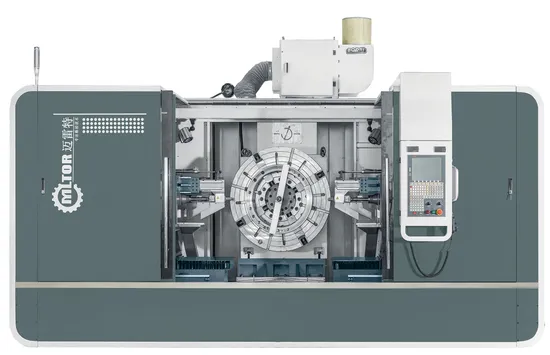

High Accuracy 4-Spinlde Pellet Ring Die Deep Hole Gun Drilling Machine with CE (MLT-SK4H800I)
| US$10,000.00-180,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
MLT-SK4H800i
Controlling Mode
CNC
Number of Shaft
4
Hole Diameter
1.2-5.5
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Host Weight
10000kg
Hydraulic System Weight
2000kg
Max.Ring Die Outer Diameter
1100mm
Min.Ring Die Inner Diameter
350mm
Transport Package
Wooden Case
Specification
3700mm*2000mm*2700mm
Trademark
MLTOR
Origin
China
Production Capacity
10000/Year
Product Description
4-spindle of NC pellet ring die deep hole gun drilling machineTechnical description
1.high performance price ratio classic machine.
2.intelligent control,stable and reliable.
3.humanized operation,easy to learn.
4.the preferred machine of ring die manufactures.
5.Ring die dedicated drilling system MLT-Z228i.Mature hardware and software programming,the relevant parameters of the hole through the CNC system interface can be filled.
6.MLT series of motors,with anti-oil,engage in corrosion and so on.
Parameter description
| Processing specification | |
| Number of spindle axis | 4-axis |
| Drilling diameter | 1.2mm-5.5mm |
| Maximun drilling thickness | ≤150mm |
| Maximun diameter of ring die | Ф1100mm |
| Spindle travel range | ≤550mm |
| Spindle pitch range | 50~150mm |
| Processing speed | |
| Drilling box spindle maximum speed | 15000r/min |
| Feedrate range | ≤1500mm/min |
| Fast forward speed | ≤6000mm/min |
| Precision of processing | |
| Drilling degree of skewness | ≤1/1000 |
| Drilling hole size precision(refer marl 45,thermal refining) | IT7~IT10 |
| Drilling hole roughness(refer marl 45,thermal refining) | Ra0.3~Ra0.8 |
| Main device capacity | |
| Total power of machine tools | 22kw |
| Hydraulic system | |
| Maximun flow | 60 I/min |
| The highest pressure | 15MPa |
| Filtrarion accuracy | 10um |
| Machine oil storage | 1100L |
| Size and weight | |
| Floor space(L*W*H) | 3700mm*2000mm*2700mm |
| Host weight | 10000kg |
| Hydraulic system weight | 20000kg |
The picture of machien feature
