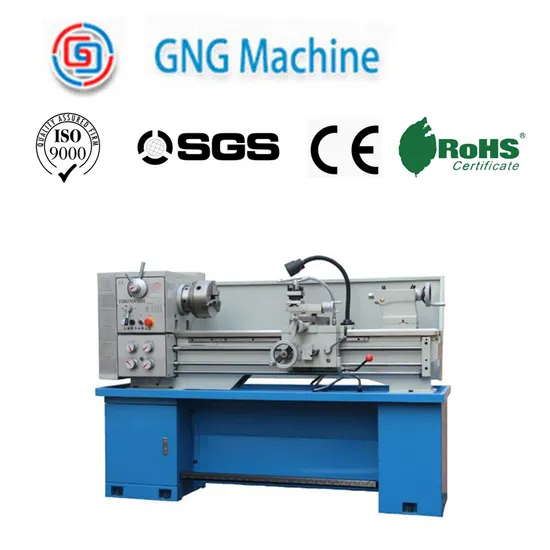

Heavy Duty Metal Processing Bench Lathe

Product Description

Min. Order Quantity: 1 Set/Sets
Supply Ability: 300 Set/Sets per Month
Port: Shanghai
Payment Terms: L/C, T/T
Quick Details
Condition: New
Type: Horizontal
CNC or Not: Normal
Automatic Grade: Manual
Max. Swing Diameter: 400mm
Place of Origin: Shandong, China (Mainland)
Brand Name: GNG
Model Number: CQ6240F
Voltage: 380V
Power(W): 2HP
Dimension(L*W*H): 1950X760X1480mm
Weight: 750kgs
Certification: CE
After-sales Service Provided: No overseas service provided
Packaging & Delivery
Delivery Detail: 30-45days
Specifications
Max swing over bed 356/400mm
Max swing over cross slide 220mm
Max swing over gap 506mm
Width of bed 206mm
Precision lathe machine CQ6240F
Max swing over bed 356/400mm
Max swing over cross slide 220mm
Max swing over gap 506mm
Width of bed 206mm
Distance between center 1000mm
Taper of spindle hole MT5
Spindel bore 38 or 52mm
Step of spindle speed 8 or 16 setps
Range of spindle 90 or 45-1800rpm
Spindle nose D1-4
Metric thread range (37)0.4-7mm
Whitworth thread range (28)4-56TPI
Range of longitudinal feed (42)0.043-0.653mm/rev
(42)0.0017-0.0257in/rev
Range of cross feed(42)0.015-0.22mm/rev
(42)0.0006-0.0087in/rev
Pitch and diameter of leadscrew 4mm
Travel of carriage 840mm
Travel of cross slide 178mm
Travel of top slide 92mm
Travel of tailstock quill 45mm
Diameter of tailstock quill MT3
Motor power 2 /3.3HP
Net weight 750kgs
Packing size 1950X760X1480mm
