Minerals Metallic Powders Food V Shape Drum Tumble Powder Mixer Blender

Product Description

Product Description Product Description

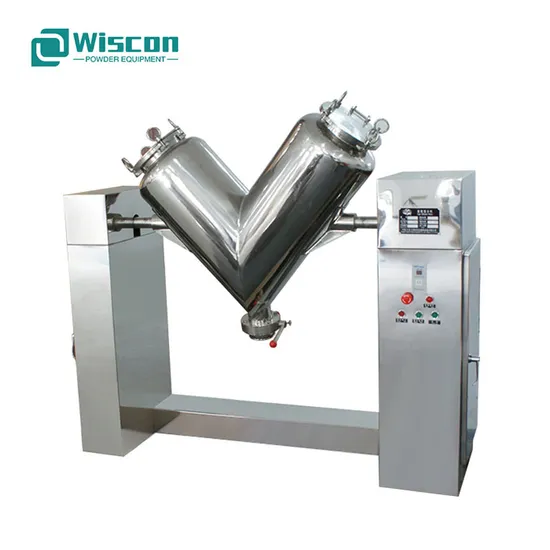

The V-shape Blender is a traditional, rotary, tumble-action unit. Its classic cylindrical 'V-shaped curves ensure the good
rolling and cross mixing of the product. V-shape blender is mainly used to produce a homogeneous solid-solid mixture, especially
for fragile materials in small-batch,es and has high uniformity requirement
Applicable Materials
Ideal for pre-mixing and blending free flow dry powder and granules
Typical Application
pharmaceuticals, fish meal, flour, dextrin, enzymes, coffee, cocoa, milk powder, chocolate, gelatin, crème caramel and
dessert powder, baby food, custard powder, starches, seeds, pigments, colorants, cosmetics, powdered or granulated
plastics, fiberglass, etc.
Working Principle
The V-shape blender consists of two cylinders arranged in a "V" shape, supporting frame, Transmission system, electric control
system, etc. The solids are introduced into the blender through the loading port. With the rotation of the mixing chamber, the
powder particles are divided and merged repeatedly and repeatedly in the V-shaped cylinder. Due to the characteristic shapes
formed by two normally identical sections joined at a specific angle, axial flows are created inside which separate and join the
product to be mixed, and which together with the radial action of the mixture, results in a rapid and uniform mix The material
flows randomly from one area to another, i.e., repeatedly diffusion motion to achieve a uniform mixing effect.
Product Parameters

Model	Volume(L)	Max Loading (kg)	Power (kW)	Speed (r/min)	Overall Size (mm)	Weight (kg)
VH-0.1	100	40	0.75	3~12	1600X600X1400	180
VH-0.2	200	80	1.1	3~12	1900X700X1500	250
VH-0.3	300	120	1.5	3~12	2190X700X1700	350
VH-0.5	500	200	2.2	3~12	2340X800X2200	550
VH-1	1000	400	3	3~12	2900X1100X2300	1000
VH-1.5	1000	400	3	3~12	3000X11200X2500	1200
VH-2	1000	400	3	3~12	3300X1300X2600	1600

Product Details
Why us Wuxi Wiscon mechanical and Electrical Equipment Co., Ltd. is an integrated company specializing in powder production for the food,
pharmaceutical, chemical, and biological industries since 2016.
Main products categories cover the following equipment:
a. Drying Equipment: rotary atomizer spray dryer, pressure nozzle spray dryer, tray drying oven.
b. Powder Mixer: Conical Screw mixer, Ribbon mixer, Ploughshare Mixer, V-shaped mixer, and Double cone mixer for bulk materials.
c. Vibration Screener: Rotary vibratory Screener, Tumbler Screening Machine, and Centrifugal shifter for fine powder separation.
d. Grinding Machine: Universal Mill, Air Classified Mill for food and Pharmaceutical.
e. Granulating Equipment: High Shear Mixer Granulator and Fluid Bed Granulator
f. Vacuum conveyor: Pneumatic vacuum Feeder for BIC, Bagging machine, powder mixer, sieve, etc.
FAQ Questionnaire for v-shaped mixer
In order to quote you the right v-shaped mixer price, Please specify as much information as possible
- What are the materials to be handled?
- What's the mixing capacity per batch?
- What is the particle size of the raw materials?
- What is the bulk density of raw materials?
- Does the product need to be heated or cooled while mixing?
- Does the mixer need to have a vacuum applied when the product is mixing?
