Vertical Diaphragm Pressure Water Tank of 8 Liter Capacity

Product Description

Expansion Vessels - Why?
In practice water cannot be compressed and therefore any increase in water volume must be accommodated in an expansion vessel designed and sized for that purpose. Naturally, as water heats up, it expands. This expanded water has to go somewhere. In an open type system the open expansion tank situated at the highest point of the system would accommodate this extra volume. A closed type system does not have an open fixture such as described above. Hence, a correctly sized Dezhi/Aqua Leader expansion vessel is necessary. When properly sized, the Dezhi/Aqua Leader Expansion Vessel will accommodate the expansion of the fluid during the heating or cooling cycle without allowing the system to exceed the pressure limits of any of the components in the system.
Configuration and Features
Dezhi/Aqua Leader Expansion Vessels incorporate a diaphragm/bladder arrangement which provides a flexible barrier between the system fluid and the precharged air in the vessel. As the system water expands, the bladder also expands pushing against the precharged air cushion. This is how the expansion is accommodated in a closed-loop system.
Standard construction is carbon cold pressed steel with natural rubber or EPDM membranes.
Temperature limits are 10oC to 99oC.
Working pressures vary from 3 Bar to 35 Bar depending upon which vessel is selected. Higher pressure ratings of 45 and 50 Bar are available if required.
Other Features
• Replaceable bladder
• Threaded connections - stainless.
• Pre-set pressure 400KPa - variable.
• Wall mount bracket available for 8-36 litres.
• Also available in stainless steel.
• Relief valve supplied loose to suit system pressure - please specify.
Sizing for Expansion Vessels
In order to select a suitably sized expansion vessel, the following information is required:
• Total system water volume in litres.
• Temperature of water when system is filled (in oC) and average maximum operating temperature (in oC).
• Minimum operating pressure in kPa and maximum operating pressure (10% below relief valve, in kPa).
• Which level of the building it will be installed and number of levels there are above it?
Suggested Specification
Expansion Vessels shall be the closed type similar to Dezhi/Aqua Leader (available from Taizhou Tianyang Electrical Co., Ltd ) or approved equal and suitably sized to suit the system temperature and pressures likely to be encountered. Vessels construction to be fully welded and sealed steel construction, complete with integral EPDM rubber liner to maintain the water within the system without exposure to air or contamination. Each Vessel to be supplied with a suitably safety relief valve vessel must have a replaceable bladder.
Taizhou Tianyang Electrical Co., Ltd reserves the right to make changes without notification.
Introduction Dezhi expansion vessels are suitable for use in central heating and cooling installations.
Nitrogen, a dry inert gas used in the Dezhi/Aqua Leader range of expansion vessels, improves the vessel's life span by reducing corrosion inside the vessel, and prevents loss of pre-charge pressure. Nitrogen permeates through rubber slower that oxygen and is far less reactive to both steel and aluminium creating fewer debris inside the vessel. Nitrogen does not degrade rubber prolonging the membrane life.
Oxygen in compressed air permeates through the membrane, thus reducing the pre-charge pressure over time. During normal operation, oxygen oxides the membrance in the vessel, causing under inflation pressure and will not corrode the inside of the vessel.
It's recognised in the industry that oxidative ageing is one of the primary causes of decreased vessel life. Tests have shown that if vessels are inflated with Nitrogen, there is a significant reduction in failure and increased vessel life.
For use under high pressure. Top-quality high strength steel, with a gleaming red (RAL 3002) epoxy powder coating - perfect protection and finish. Clamp ring of heavy-duty thermally-galvanised steel. Our flexible EPDM Bladder with rolling action are suitable for use with glycol based anti-freeze addition up to 50%. Exact details are available on request. The nitrogen airvalve is sunk and cannot be damaged due to the cap and extra protective plastic beige coverplate. Uncoated threaded system connection, ensuring problem free connecting.
Specifications
Max. working pressure: 10 bar(g) Max. temperature at (heating) outlet: 99 °C. Max. temperature diaphragm: 99 °C (DIN4807/3). Max. supply temperature (boiler): 90 °C. Min. working temperature: -10 °C In accordance with Pressure Equipment Directive 97/23/EG.
The main elements of the membrane tank are a metal case of high-quality deep-drawn steel and an elastic membrane made of Butyl Rubber Membrane separating the tank into two chambers - an air (cavity between the metal case and a membrane) and a water one (the internal cavity of the membrane). The air chamber is constantly under a pre-set air pressure. The service life of diaphragm tanks is at least 10 years of continuous operation. The durability of the membrane - at least 100,000 cycles. Dupont (France) materials are used as paint.
Features of the design - the location of the top flange (TOP tanks) provide ease of installation / disassembly of the equipment, virtually eliminates the possibility of air plugs in the water cavity of the membrane, the minimum time required to replace the membrane; small overall dimensions.
Company profile Taizhou Tianyang Electrical co.,LTD. Is located in Shangma industrial Zone,Shitang Town,WenlingCity,Zhejiang rovince,covering an area of 15,000 square meters.Our Company has over 30 years experience in mold design and exploition. "DEZHI"and "AQUALEADER" are our proprietary brand of our company.We have produced pressure tank for more than 20 years.Available volumes range from 0.15 to 1500 liters.and working pressure from 4 bar to 25bar. Our products are applied to pump systems .Our products are exported to numerous overseas clients.We can custom design and manufacture products according to client-supplied requirements.
We adhere to the business philosphy"Credibility,Quality and service",our scientific management is based on the domestic market, but facing to the world.Warmly welcome customers both domestic and from abroad.We sincerely hope to cooperate and develop together to create a better future.
Taizhou Tianyang Electrical Co.,Ltd. Is always your most loyal partner.
I would like to take this opportunity to introduce our company to you. I am contacting you on behalf of Taizhou Tianyang Electrical Co., LTD. We are the factory from China for making Pressure Tanks for Fire Protection,Residential Water and Irrigation, Sport Turf and Landscape Irrigation, Agriculture and Horticulture Irrigation, Water Filtration, Treatment & Recycle, Solar and Stock Water System, Rain Water Harvesting, Pump Systems. Based on ISO quality management system, we have obtained CE, KC, ISO 9001, ISO14001, OHSAS 18001, SGS, Water Mark, and Wras Certificates for our company & our Pressure Tanks. Welcome to visit Taizhou Tianyang Electrical Co.,LTD when it is more convenient for you.
Single Diaphragm Pressure Vessel
A range of reliable vessels, available in 10 and 16 bar pressure ratings and sizes from 3 to 200 litres. The series is constructed of a virgin polypropylene liner combined with an Certificated high grade butyl diaphragm, which is held against the wall of the tank with a steel clench ring. The tanks design includes rounded internal parts to prevent piercing and a unique connection providing a dual water/air seal for a complete leak and maintenance free vessel.
Solar Aqualeader tanks are quality tested at several stages on the production line to insure the structural integrity of every tank. Solar Aqualeader tanks represent the best value for the investment and are the best quality pressure vessels available today.

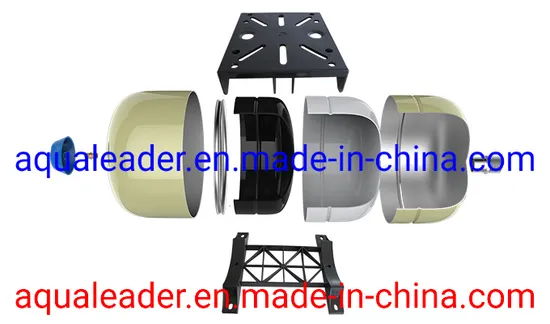

Single Diaphragm Pressure Vessel Structure
Specifications: Single diaphragm design 100% potable quality butyl,we also have EPDM Membrane For Potable Purpose. Patented 316/304 stainless steel connection. Virgin polypropylene liner, so no water touches plain steel. Internal clench ring becomes more secure at higher pressures. High quality two part polyurethane, epoxy primed paint finish - Almond. Brass stemmed air valve and O-ring sealed valve cap,we have our own patent pressure valve.No need any maintaince during life time. CE, WRAS,KC,Water Mark/UPC/SGS approvals. Maximum temperature up to 99 °C. Standard maximum pressure 150 PSI / 10 Bar.For Super Aqualeader ,we have appied 240 psi/16 bar 5 To 7 Years Warranty According To Clients Requirements Materials: Diaphragm: high grade butyl Liner: polypropylene Clench ring: steel Air valve: brass Valve cap: threaded o-ring Water connection: stainless steel SUS 304/SUS316 Exterior: steel Pump stand: Engineering plastic Market Sectors: (Applied with different membrane---Butyl/Epdm) Domestic Commercial Agricultural Industrial Irrigation Mining Applications: Water booster systems Thermal expansion Irrigation systems Hydraulic hammer arresting Technical Parameter

Model	Tank Volume	Maxi Working Pressure	Diameter	Height	Connector	Package
x	Liter	Bar	mm	mm	Inch	cm
TY-12-2G	8	10/16	220	340	1	22x22x34
TY-12-2G-W	8	10/16	220	320	1	22x22x32
TY-12-3G	12	10/16	260	360	1	26x26x37
TY-12-4.5G	19	10/16	290	400	1	31x31x40
TY-12-4.5G-W	19	10/16	290	380	1	31x31x38
TY-12-6.3G	24	10/16	295	460	1	31x31x46
TY-12-9.3G	36	10/16	360	470	1	36x36x47
TY-12-11G	60	10/16	420	540	1	42x42x54
TY-12-15G	80	10/16	460	580	1	46x46x58
TY-12-22G	100	10/16	460	700	1	46x46x70
