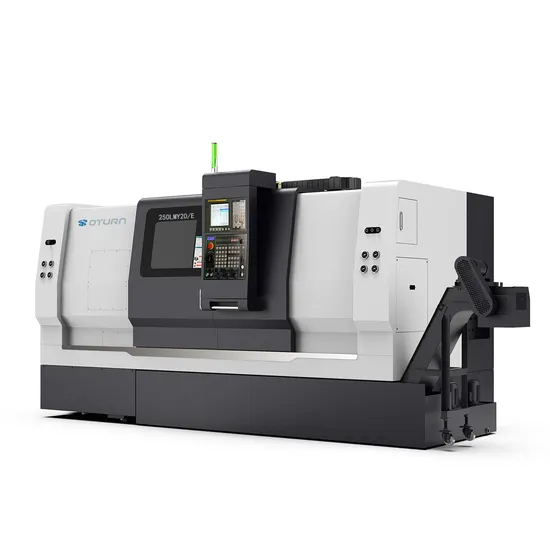

Automated Slant Single Spindle CNC Turning Center CNC Turret Lathe with CE

Product Description

Product Description
Experience the epitome of precision and stability with our Automated CNC Metal Lathe for Sale. This advanced machine boasts an optimized 30-degree inclined bed structure, delivering unparalleled accuracy, super rigidity, and exceptional cutting stability. Constructed from high-strength HT300 cast iron through finite element analysis, the lathe bed offers extraordinary mechanical rigidity, ensuring long-term accuracy and stability. Our design significantly enhances processing stability and tool longevity. In addition, the high-strength hard rail structure and pre-tensioned screw transmission system further bolster rigidity and performance.
Equipped with robust hard rail guides and precision-ground ball screws, our CNC lathe guarantees optimal accuracy and durability. The heat-treated ball screws ensure exceptional precision while minimizing thermal displacement. Each axis features a direct transfer structure and a double-anchor pre-relay method, dramatically improving processing accuracy by keeping thermal displacement to a minimum.
Product Parameters

Item	Unit	TY250LMY20/E
Max. swing diameter over bed	mm	Φ800
Max. processing diameter	mm	Φ540
Max. processing diameter on tool holder	mm	Φ540
Max. processing length	mm	1940
Spindle nose	type	A2-11
Max. Spindle speed	rpm	2500
Cylinder/Chuck	lnch	12″
Spindle bore diameter	mm	Φ117
Bar diameter	mm	Φ102
Spindle motor power	kw	15/18.5
Motor torque220-272 Spindle motor power1:2	Nm	440-544
X/Z axis limit travel	mm	310/2000/120±60
X/Z axis guide rail specifications	/	Hard rail
X/Z axis motor torque	Nm	22/22
X/Z/Y axis motor power	kw	3.0/3.0/1.8
Positioning accuracy	mm	±0.005
Repeatability	mm	±0.003
X/Z/Y axis rapid movement	m/min	18/18/8
Powered tool turret type	pcs	BMT65
Power turret power	KW	7.5
Max. speed of driven tool holder	rpm	6000
Outside diameter tool holder specifications	mm	25X25
Inner diameter tool holder specifications	mm	Φ50
Adjacent tool change time	sec	0.2
Hydraulic tailstock	/	Hydraulic tailstock
Max. travel of tailstock	mm	1700
Tailstock sleeve tapered hole	type	Mohs5#
Tailstock sleeve diameter	mm	Ф100
Sleeve stroke	mm	80
Machine size	mm	5450*2270*2150
Machine Weight	kg	7900
Cutting fluid tank volume	L	250
Cutting water pump	kw	0.75
Hydraulic unit box volume	L	40L
Hydraulic oil pump motor power	kw	1.5
Lubricating oil tank volume	L	2
Automatic lubrication pump motor power	W	50
Cooling water pump power	W	750
