65 Cubic Meters 65000L 30tons 30mt LPG Storage Tanks for Cylinder Filling Gas Station Building
| US$14,650.00-29,860.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CLW1022WYT
Material
Carbon Steel
Pressure
1.6MPa≤p<10.0MPa
Storage Medium
Flammable/Toxic
Pressure Level
Medium Pressure (1.6MPa≤p<10.0MPa)
Condition
New
Tank Material
Q345r or Q370r
Loading Capacity
30t, 30ton, 30tons, 30mt
Tank Size
65m3, 65cbm, 65000liters, 65000L
Thickness of Shell
14mm
Design Pressure
1.71MPa 1.77MPa 17.1bar, 17.7bar
Hydraulic Test Pressure
2.21MPa 22.1bar
Color
as Customized
Life Time
20 Years
Thickness of End Plate
16mm
Diameter
2700mm
Fill Medium
Cooking Gas, Propane, LPG, Gas
Corrosion Allowance
1mm
Overall Size
11832X2728X3318mm
Gas Density
420kg/Cbm
Transport Package
Naked with Wax
Specification
65000L, 65cbm, 6500liters, 65m3
Trademark
CLW
Origin
Suizhou, China
HS Code
73110090
Production Capacity
500 Unit/Month
Product Description
65 cubic meters 65000L 30tons 30mt lpg storage tanks for cylinder filling gas station buildingProduct Description
1. Storage medium of lpg storage tanks :LPG, Liquid ammoina,Dimethyl ether,Iso-butane,Pentane and etc.
2. Available tank capacity of lpg storage tanks : 5m³~200m³,2ton~100tons
3. Manufacturing standards of lpg storage tanks : GB-150, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008
Specification of lpg storage tanks
| Parameter of 65000liters lpg storage tanks | ||||||
| ITEM | PARAMETER | ITEM | PARAMETER | |||
| Volume | 65cbm | Thickness of Shell | 14mm | |||
| Tank Material | Q345R | Thickness of End plate | 16mm | |||
| Overall Size | 11832*2728*3318mm | Tank Net Weight | 13590kg | |||
| Tank Diameter | 2700mm | Loading Capacity | 25935kg | |||
| Design Pressure | 1.77Mpa | Gas Density | 420kg/M3 | |||
| Hydraulic Test Pressure | 2.22Mpa | Corrosion Allowance | 1mm | |||
| Design Temperature | -20ºC~60ºC | Heat Treatment | Bulk | |||
| Vapor Outlet | DN50 | Gas Outlet | DN50 | |||
| Life time | 15 years | |||||
| Accessories | ||||||
| Model | Item | Qty | Junction surface | |||
| J41N-2.5-50 | Stop Valve DN50 | 6 | RF | |||
| J41N-2.5-25 | Stop Valve DN25 | 2 | RF | |||
| J41N-2.5-100 | Stop Valve DN100 | 1 | RF | |||
| J24W-320-DN6 | J24W Needle Valve M20*1.5 | 1 | ||||
| HG21584-95 | Magnetic plate level Gauge UZFAL-2.5RF-3040-0.5 | 1 | RF | |||
| A42F-25-100 | Safety Valve DN100 | 1 | RF | |||
| Y-100T | Pressure Gauge M20*1.5 1.5degree 0~4Mpa | 1 | ||||
| WTQ-280 | Thermometer M33*2 2.5 degree | 1 | -40ºC~60ºC | |||

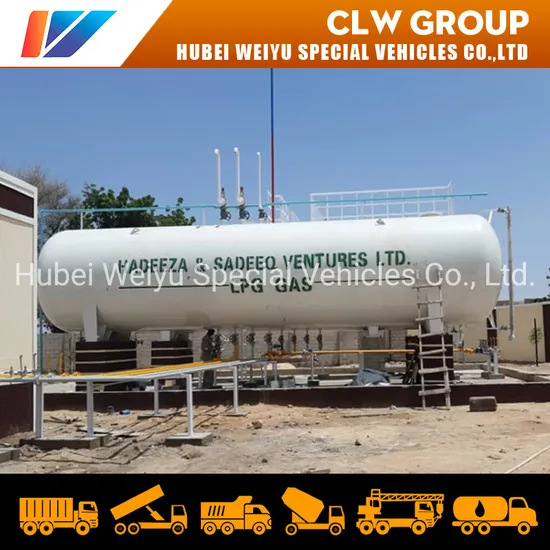

Reference pictures of 65cbm lpg storage tanks
We supply package solution for lpg station building as follows
Contact Shirley for more details and special discount price
Ms. Shirley Fu
Sales Director
Hubei Chengli Special Automobile Co., Ltd.
Hubei Weiyu Special Vehicles Co., Ltd.
Factory:Chengli Automobile Industry Park,Suizhou City,Hubei Province,China
Office:Room 2614-2615,Block B,Longyang Time Square,Hanyang District,Wuhan,China
