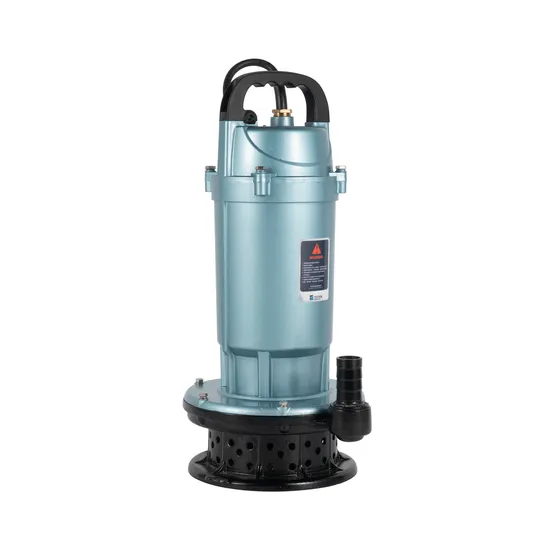

Aluminum Housing Submersible Pump for Clean Water

Product Description

Product DescriptionPUMPMax. immersion depth: 5mMax. liquid temperature: +40ºCFluid temperature up to: +35ºCCast iron pump bodyAluminum impellerMOTORCopper windingSingle phase / continuous workBuilt-in thermal protectorShaft: stainless steel welded shaft / 45# steel be electroplatedInsulation class: B or FProtection class: IP X8PUMP INSTALLATION AND APPLICATIONSQDX series vertical submersible pumps are fitted with an open or closed impeller, and are suitable for water cluster boxes, farmland, industrial & mining enterprises, construction sites, ship and family, and characterized by less volume, light weight and convenient operation etc.

Item No	Voltage	Frequency	Power	HP	Flow rate	Head	Speed	Outlet	Float Switch
		(Hz)	(KW)		(m³/h)	(M)	(R/min)	(Inch)
QDX1.5-12-0.25	220V	50Hz	0.25	0.34	1.5	12	2860	1"	can add
QDX1.5-16-0.37	220V	50Hz	0.37	0.5	1.5	16	2860	1"	can add
QDX5-10-0.37	220V	50Hz	0.37	0.5	5	10	2860	1.5"	can add
QDX1.5-25-0.55	220V	50Hz	0.55	0.75	1.5	25	2860	1"	can add
QDX10-10-0.55	220V/380V	50Hz	0.55	0.75	10	10	2860	2"	can add
QDX6-15-0.55	220V/380V	50Hz	0.55	0.75	6	15	2860	1.5"	can add
QDX15-7-0.55	220V/380V	50Hz	0.75	1	15	7	2860	2"	can add
QDX1.5-32-0.75	220V/380V	50Hz	0.75	1	1.5	32	2860	1"	can add
QDX8-18-0.75	220V/380V	50Hz	0.75	1	8	18	2860	1.5"	can add
QDX10-16-0.75	220V/380V	50Hz	0.75	1	10	16	2860	2"	can add
QDX15-10-0.75	220V/380V	50Hz	0.75	1	15	10	2860	2.5"	can add
QDX30-6-0.75	220V/380V	50Hz	0.75	1	30	6	2860	3"	can add
QDX3-38-1.1	220V/380V	50Hz	1.1	1.5	3	38	2860	1"	can add
QDX6-25-1.1	220V/380V	50Hz	1.1	1.5	6	25	2860	1.5"	can add
QDX10-20-1.1	220V/380V	50Hz	1.1	1.5	10	20	2860	2"	can add
QDX15-15-1.1	220V/380V	50Hz	1.1	1.5	15	15	2860	2.5"	can add
QDX30-9-1.1	220V/380V	50Hz	1.1	1.5	30	9	2860	3"	can add
QDX10-25-1.5	220V/380V	50Hz	1.5	2	10	25	2860	2"	can add
QDX15-20-1.5	220V/380V	50Hz	1.5	2	15	20	2860	2.5"	can add
QDX40-9-1.5	220V/380V	50Hz	1.5	2	40	9	2860	3"	can add
QDX65-7-2.2	220V/380V	50Hz	2.2	3	65	7	2860	4"	can add
QDX80-9-3	220V/380V	50Hz	3	4	80	9	2860	4"	can add
QDX100-6-3.5	220V/380V	50Hz	3.5	4.7	100	6	2860	5"	No

Detailed Photos
1.Aluminum pump body and cast iron pump head
2.copper wire and Aluminum or PPO impeller
3.from 0.25kw to 3.5kw
Installation Instructions
COPPER WIRE AND NEW STATORCompany Profile
TAIZHOU ZHIAN INTERNATIONAL TRADE CO.,LTD.(ZHEJIANG SHISHUI PUMP INDUSTRY TECHNOLOGY CO.,LTD.)was born in the hometown of water pumps in China-Daxi town.
In 2002,our factory was founded.Our vision is to create an international first-class water pump brand.
We focus on technological innovation and service innovation.We persist in striving for excellence and adhere to the unity of knowledge and action.We have found out the development path!We more forward with our original aspiration as well as honors.
In the future,we will continue to stick to the brand philosophy of "intelligent manufacturing with ingenuity"
to build an international first-class water pump brand and build a beautiful living environment for people together.
APPLICATIONS1.For water supply from wells or reservoirs.
2.For domestic use,for civil and industrial applications.
3.For garden use and irrigation.
WORKSHOP
FAQ
Q: What is your MOQ of this item?
A: Our MOQ is a full 20ft container, first time cooperation, we accept trial order to check quality.
Q: Is it acceptable to make customers' own brand?
A: Sure, we can do OEM.
Q: What are your payment terms?
A: 30% T/T deposit, 70% against documents, or L/C at sight.
Q: How long is your warranty?
A: One year!
Q: What is the delivery time?
A: 25-30 days after receiving your L/C or T/T deposit.
