1C DIN Type Tube Straight Fittings Hydraulic Adapter 24 Degree Metal Fitting

Product Description

Product DescriptionWhat is a transition fitting? It is a fitting that is used to transition two joints that need to be connected to each other when they are different and cannot be connected so that the two joints can be connected together through this transition fitting.
A transition fitting is a type of tubing that is used to connect two different types of pipes. It is commonly used in industry and construction to connect different parts of a piping system to meet specific design requirements. Transition fittings can be used to connect pipes of different diameters, shapes, and materials, for example, to connect PVC pipes to copper pipes, or to connect round pipes to square pipes. Transition fittings are usually made of different materials, such as stainless steel, copper, steel, cast iron, PVC, etc., to suit different application scenarios. Our transition fittings are made of high-quality materials and undergo strict quality control and testing to ensure reliable product quality and long service life.

PART NO	T H R E A D		TUBE 0.D		DIMENSIONS					MPa
	E	F	D1	D2	l1	L1	S1	S2	S3
1C-12	M12X1.5	M12X1.5	6	6	10	39	12	14	14	31.5 L
1C-14	M14X1.5	M14X1.5	8	8	11	40	14	17	17
1C-16	M16X1.5	M16X1.5	10	10	13	42	17	19	19
1C-18	M18X1.5	M18X1.5	12	12	14	43	19	22	22
1C-22	M22X1.5	M22X1.5	15	15	16	46	24	27	27
1C-26	M26X1.5	M26X1.5	18	18	16	48	27	32	32
1C-30	M30X2	M30X2	22	22	20	52	32	36	36	16 L
1C-36	M36X2	M36X2	28	28	21	54	41	41	41
1C-45	M45X2	M45X2	35	35	20	63	46	50	50
1C-52	M52X2	M52X2	42	42	21	66	55	60	60

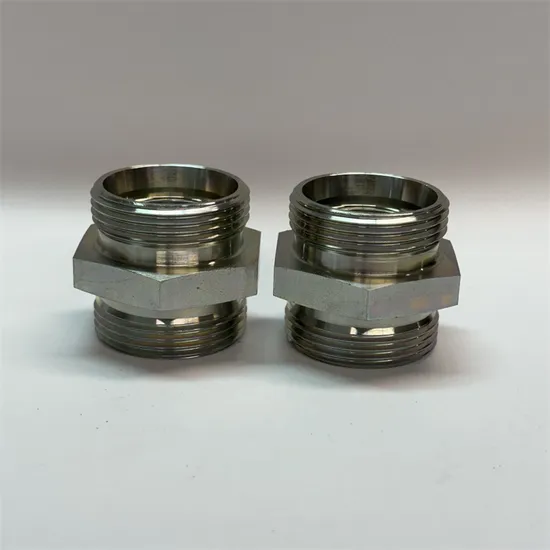

Detailed Photos
