800*400mm 4080ahr Professional High Precision 2 Axis Automatic Processing Auto Feed High Speed up and Down Handwheel Surface Grinder Grinding Machine

Product Description

Product Description
The 800X400 Table Grinding Machinery Tool from Dongguan TranStar Machinery Co., Ltd. stands as a pinnacle of precision and efficiency. Engineered for excellence, this robust tool offers unparalleled accuracy and durability, ensuring superior performance in all your grinding tasks. Ideal for industrial applications, it guarantees consistency and a high-quality finish, making it an indispensable asset for your workshop.

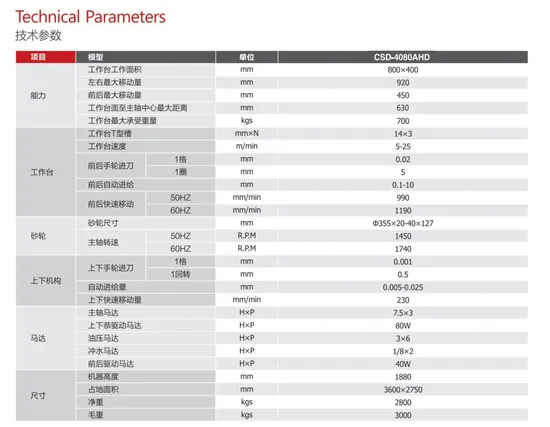

Product Parameters
Introducing the meticulously crafted 800X400 Table Grinding Machinery Tool, developed by Dongguan TranStar Machinery Co., Ltd. This state-of-the-art equipment features a spacious 800x400 mm table, precision grinding capabilities, and a user-friendly interface for optimal operation. Designed to meet the highest industry standards, it promises reliability, efficiency, and outstanding results in every project.

Mountings	Specifications		Unit	CSD-4080AHD
Ability	Table Dimensions		mm	800×400
	Maximum forward and backward movement		mm	920
	Maximum left-right movement		mm	450
	Distance between spindle center and work surface		mm	630
	Maximum bearing weight of working table		kgs	700
Work Table	Table T-slots		mm×N	14×3
	Table speed		m/min	5-25
	Front and rear handwheel feed	a check	mm	0.02
		a round	mm	5
	Auto-supplying from front to back		mm	0.1-10
	High speed moving from frong toback	50HZ	m/min	990
		60HZ	m/min	1190
Grinding Wheel	Grinding Wheel Size		mm	Φ355×20-40×127
	Speed of mainshaft	50HZ	R.P.M	1450
		60HZ	R.P.M	1740
Upper and lower mechanism	Up& down handwheel feed	a check	mm	0.001
		a turing round	mm	0.5
	Auto-supplying volumn		mm	0.005-0.025
	High-speed mouing dimension from up to down		mm/min	230
Motor	Spindle motor		H×P	7.5×3
	Drive motor up and down		H×P	80W
	Drive motor up and down		H×P	3×6
	Vacuum motor		H×P	1/8×2
	Back and front driving motor		H×P	40W
Machine Size	Mechanical height		mm	1880
	Occupied area		mm	3600×2750
	Net weight		kgs	2800
	Gross Weight		kgs	3000

Products Details: Explore the comprehensive features of the 800X400 Table Grinding Machinery Tool, proudly manufactured by Dongguan TranStar Machinery Co., Ltd. This advanced machine is equipped with cutting-edge technology to deliver precise grinding, a robust 800x400 mm table for extensive workpieces, and intuitive controls for easy operation. Built to last, it ensures maximum productivity and exceptional quality in all your grinding tasks.
