Basic Info.
Customized
Non-Customized
Maximum Lifting Distance of Screw Disc
125mm
Transport Package
Export Standard Wooden Case
Specification
1400x560x560mm

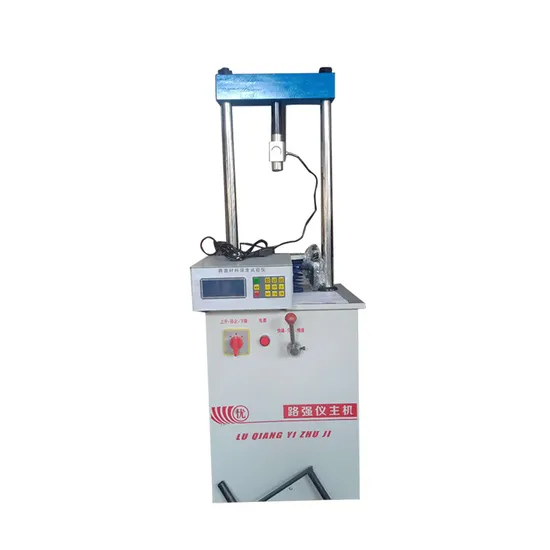

Product Description
Mainly used for the compressive strength of lime stabilized soil, various attachments can also be used for tests such as splitting strength and rebound modulus, Marshall test of asphalt concrete, bearing ratio test of roadbed soil and various pavement materials, etc.
parameter
1. Maximum rated load: 100KN
2. Maximum lifting distance of screw disc: 125mm
3. Mobile speed: slow speed 1mm/min, fast speed 50mm/min. (two speed options)
4. Manual speed: 6mm/lap
5. Power supply voltage: 380V
6. Force measuring ring: 100KN (optional)
7. Size: 1400x560x560mm
