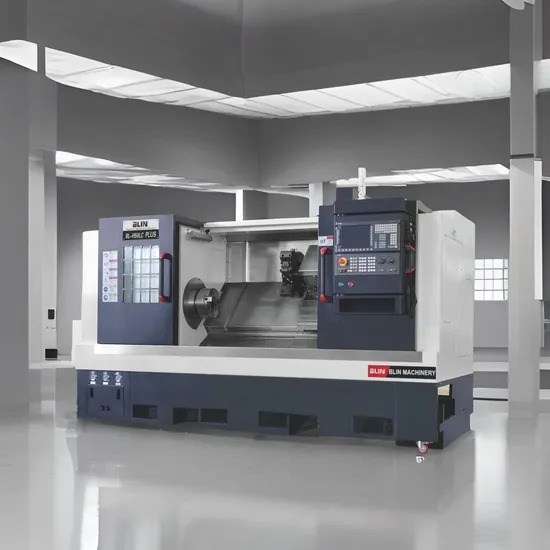

Successful Slant Bed CNC Lathe Tool with Y Axis Live Tool (BL-H50L/LC PLUS)
| US$48,000.00-70,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
BL-H50L/LC
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Semiautomatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Max. Swing Dia. Over Bed
520mm
Max. Swing Dia. Over Slide
300mm
Max. Turning Dia.
400/350mm
Max. Turning Length
1000/1500/2000/3000mm
Spindle Bore
79/92mm
Spindle Type
A2-6/A2-8
Spindle Speed
4000/2500rpm
Chuck Size
8′′/10′′/12′′
Spindle Motor Power
11/15kw
Transport Package
Polywood Case
Specification
520*1000/1500/2000/3000mm
Trademark
BLIN
Origin
China
HS Code
8461500090
Production Capacity
480 Units/Year
Packaging & Delivery
Package Size
250.00cm * 320.00cm * 250.00cm
Package Gross Weight
250.000kg
Product Description
- Adopt ROLLER type linear guideway
- Adopt TAIWAN technology, most parts adopt GERMANY/JAPAN/TAIWAN brand
- Adopt 45°integral slant bed design
- Adopt china top class HT300 cast iron, after aging treatment, small distortion, good torsional strength, good heat stability
- Adopt high precision spindle unit, spindle motor adopt high performance servo motor, big output torque,high speed
- Adopt high precision pre-stretched ball screw(double nuts), coupled with feeding motor directly by linkager, no gap,high transmission rigidity
- Adopt especial structure programmable tailstock, tailstock quill not move, whole tailstock body driven by hydraulic cylinder on linear guideway(* If mount hydraulic steady rest, the guideway of tailstock to be BOX guideway)
- H50L PLUS mount 12T Hydraulic-servo tool turret
- H50LC PLUS mount C axes and 12T GERMAN SAUTER Powered tool turret
Details:
| Item | Specification | Unit | BL-H50L PLUS | BL-H50LC PLUS |
| Capacity | Max. swing dia. over bed | mm | Φ520 | |
| Max. swing dia. over slide | mm | Φ300 | ||
| Max. turning dia. | mm | Φ400 | Φ350 | |
| Max. turning length | mm | 1000/1500/2000/3000 | ||
| Spindle | Spindle bore | mm | Φ79(Φ92*) | |
| Spindle type | / | A2-6(A2-8*) | ||
| Spindle speed | rpm | 4000(2500*) | ||
| Chuck size | / | 8''(10''*,12''*) | ||
| Max. bar through dia. | mm | Φ51(Φ74*,Φ79*) | ||
| Spindle motor power | kw | 11(15*) | ||
| Spindle dividing accuracy | ° | / | 0.001° | |
| X/Z axes | X axes travel | mm | 220 | 210 |
| Z axes travel | mm | 1000/1500/2000/3000 | ||
| X axes ball screw dia./pitch | mm | Φ32/10 | ||
| Z axes ball screw dia./pitch | mm | Φ40/12 | ||
| X/Z axes linear guideway width | mm | 35/45(ROLL type) | ||
| X/Z axes rapid moving speed | m/min | 24/20 | ||
| Tool turret | Tool post type | / | 12 station hydraulic-servo tool turret | 12 station servo powered tool turret BMT55 |
| Live tool speed | rpm | / | 4500 | |
| Toolshank size | mm | 25×25, Φ40 | ||
| Tailstock | Tailstock quill travel | mm | / | / |
| Taisltock quill dia. | mm | / | / | |
| Tailstock quill taper | / | MT5# | ||
| Tailstock body travel | mm | 900/1400/1900/2900 | ||
| Others | X/Z axes positioning accuracy | mm | ±0.005 | |
| X/Z axes repeated positioning accuracy | mm | ±0.003 | ||
| Overall size | mm | 3300/3800/4300/5300×1700×1800 | ||
| N.W. | kg | 6000(for 1000mm) | 6500(for 1000mm) | |
Main parts list:
| Item | BL-H50L PLUS | BL-H50LC PLUS |
| CNC controller | GERMANY-SIEMENS | GERMANY-SIEMENS |
| X,Z axes servo motor&driver | GERMANY-SIEMENS | GERMANY-SIEMENS |
| Spindle servo motor&driver | CHINA Top(opt.:SIEMENS) | GERMANY-SIEMENS |
| Tool turret index motor&driver | TAIWAN-DELTA | GERMANY-SIEMENS |
| Live tool motor&driver | / | GERMANY-SIEMENS |
| Spindle | TAIWAN-KENTURN | |
| Spindle encoder | CHINA brand | GERMANY-HEIDENHAIN |
| Bearing | JAPAN NSK/GERMANY FAG | |
| Ball screw | TAIWAN HIWIN/PMI | |
| Linear gudieway | TAIWAN HIWIN/PMI | |
| Tool turret | INDIA-PARAGATI/TAIWAN MYKUN/GERMANY-SAUTER | GERMANY-SAUTER |
| Chuck&cylinder | TAIWAN-AUTOGRIP | |
| Hydraulic parts | TAIWAN/JAPAN | |
| Lubrication pump | JAPAN-HERG | |
| Nuts | TAIWAN-YINSH | |
| Main electric parts | FRANCE-SCHNEIDER | |
Standard configuration:
-SIEMENS 808D ADVANCED CNC controller
-Hydraulic chuck
-Hydraulic-servo tool turret
-Hydraulic tailstock
Optional configuration:
-SYNTEC/SIEMENS 828D/FANUC CNC controller
-C axes& powered tool turret
-Y axes
-Automatic chip conveyor
-Tool setting probe
Other models choice:
