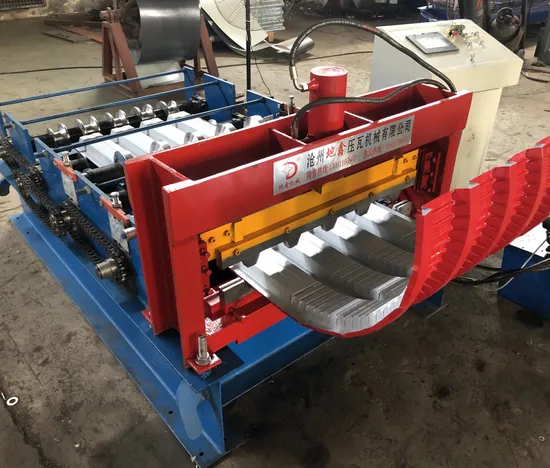

Fully Automatic Roof Panel Curving Roll Forming Machine
Basic Info.
Model NO.
roofing sheet Making Machine
Tile Type
Colored Steel
Certification
CE
Condition
New
Customized
Customized
Transmission Method
Machinery
Product
Roofing Sheet Crimping Machine
Method
Hydraulic Pressure
Automation
Automatic
Tolerance
0.1mm
Color
Blue
Chain
1 Inch
Forming Steps
23
Roller
High Grade 45# Steel
Shaft
75mm
Material
Galvanized/Aluminum/Color Steel Sheet
Transport Package
Nude, Covered with Plastic Film
Specification
CE, SGS
Trademark
DIXIN
Origin
Botou, Hebei, China
HS Code
845522
Production Capacity
30 Sets/Month
Packaging & Delivery
Package Size
2500.00cm * 1300.00cm * 1500.00cm
Package Gross Weight
800.000kg
Product Description
Fully Automatic Roof Panel Curving Roll Forming Machine1. Components:
1. Decoiler
2. Coil sheet guiding and adjusting equipment
3. Film covered device(optional)
4. Main roll forming system
5. Hydraulic pump station
6. PLC control system
7. Cutting device
8. Run-out table
2. Work flow:
Decoiling the sheet----sheet guilding----film covering(option)----roll forming----PLC controlling----hydraulic cutting----receiving the finished panel
3. Technical Parameters:
| No. | Main parameter | |
| 1 | Suitable to process | Galvanized/Aluminum/Color steel sheet |
| 2 | Width of plate | 1250mm |
| 3 | Thickness of plate | 0.3-0.8mm |
| 4 | Rollers | High grade 45# steel, with hard chrome plating |
| 5 | Forming steps | 16 |
| 6 | Sprocket chain | 1.5 inch |
| 7 | Pump station power | 4kw |
| 8 | Shaft | 75mm, high grade 45# steel, heat treatment |
| 9 | Hydraulic oil pump | CB-E310 |
| 10 | Weight | About 5.0 tons |
| 11 | Productivity | 8-12m/min |
| 12 | Cutting head | Cr12 mould steel with quenched treatment |
| 13 | Control system | TAIDA brand PLC control |
| 14 | Voltage | 380V 3Phase 60Hz |
| 15 | Motor power | 4kw |
| 16 | Dimension | About 6.8m*1.5m*1.5m |
| 17 | Hydraulic pressure | 10-12mpa |
| 18 | Index error of length | ±1mm |
| 19 | The temperature range of working line | -35-50° |
Above all the parameters can be changed exactly according to customer's requirements.
4. Advantage of DIXIN roll forming machine
| No. | DIXIN roll forming machine |
| 1 | High grade quality |
| 2 | Reasonable price |
| 3 | High efficiency |
| 4 | Low failure rate |
| 5 | Low energy consumption |
| 6 | Free after-sale service |
| 7 | Reliable working |
| 8 | Durable |
| 9 | Wide application |
| 10 | Beautiful appearance |
| 11 | Welcomed by all over the world customers |
| 12 | Professional foreign trade team |
| 13 | Mature technician team |
| 14 | Customize special type |
5. Want a free quotation for make budget?
Just send inquiry to me now!
6. We are your reliable partner!
We always do the best to make our machine perfect in every detail part.
Any pics or videos about machine, we can provide you.
7. Payment terms
30% T/T as the deposit when contract signed, 70% balanced before shipping.
