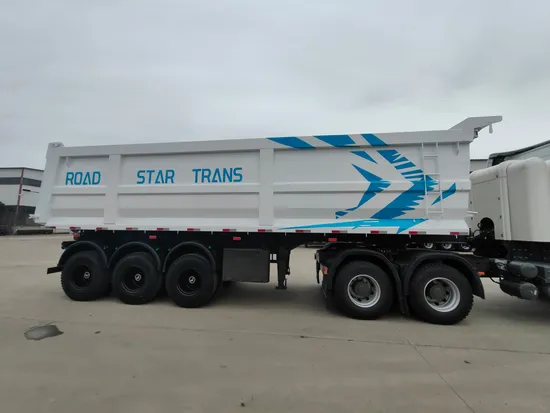

3 4 Axle 35 40 Cbm 60 Tons 80ton Heavy Truck Dump Truck Trailer Tipper Dump Semi Trailer for Sale

Product Description

Product Parameters:

Trailer Model	3-axle dump trailer
Model Number	LC9401ZZX
Function	Transport coal and sand or stone
Overall Dimension(Lx W x H)(mm)	9000mm*2600mm*4000mm
Tare Weight(KG)	15000kg
Loading Weight( KG)	100000kg
Total Weight(KG)	115000kg
Axle Brand	3*20TON Axle FUWA Brand
Wheelbase(mm)	7450+1310+1310
Suspension system	Mechanical Leaf Spring Suspension
Leaf spring	90(W)mm*13(Thick)mm*10 Layer
The material of Main beam	Q345B carbon steel,The height of the beam is 500 mm, upper plate is16mm,down plate is 18mm, middle plate is 12 mm.
Side beam	Q235 18# channel steel
Platform plate	6mm Diamond plate
Container Twist Locker	0
Tire Type and quantity	1200R2020units
Rim	9.00-20
Traction Pin
Spare Wheel Bracket	2 pieces
Tool Box	1 Standard
Landing Gear	28ton single action supporting legs
Brake system	Dual Line braking system
Brake air chamber	Six double chamber

Zhong Xu automobile introduction
Zhongxu Automobile - transport vehicle customization expert
Liangshan Zhongxu Automobile Trading Co., LTD., founded in 2002, is the national Ministry of Industry and Information Technology automotive product announcement catalog enterprises, national high-tech enterprises. Committed to all kinds of dump truck, semi truck, full trailer and special operation vehicles research and development and production.
After 20 years of vigorous development, Zhongxu Industrial Park currently covers an area of 300,000 square meters, production workshop of 80,000 square meters, with 5 domestic advanced special purpose vehicle production lines, is one of the largest industrial parks in Liangshan special purpose vehicle base. With strong innovation and research and development strength, the company has obtained dozens of inventions, utility model patents, the company has passed the ISO9001, 14001, 18001 quality system certification, products through the China automobile certification Center mandatory product certification, won the logistics users, industry and society highly recognized.
In 2013, the special low flatbed transport vehicle customized and developed by Zhongxu Company excellently completed the ground transfer mission of Shenzhou-10 manned spacecraft, making outstanding contributions to the successful completion of the Shenzhou-10 launch.
In April 2015, Zhongxu Automobile developed and produced a patented new tank car powder material carrier for customers in North America, which was exported to North America and received unanimous praise from users in North America.
In September 2016, at the Hannover International Commercial Auto Show in Germany, the self-discharging semi-trailer developed by Zhongxu Auto made its debut in the international booth of special vehicles, winning the attention and recognition of domestic and foreign transport industry users.
In view of the three major problems of safety, management and operation in the logistics and transportation industry, Zhongxu company has cooperated with many top logistics technology and equipment suppliers to realize the modular assembly of a variety of intelligent equipment, integrated a number of vehicle iot management platforms, and cooperated in the research and development of the international leading level of automatic, networked and intelligent semi-trailer. Multi-dimensional intelligent functions such as real-time online intelligent monitoring, automatic maintenance, intelligent vehicle weighing accurate management, location management and remote car locking are realized. All functions are shared and controllable in real time through the interactive platform based on PC and mobile terminal. Through the intelligent management of trailers, the bottleneck problem of the promotion of dump and shared trailers in the logistics industry is fundamentally solved, and dump transportation, shared trailers and time-sharing leasing can be easily realized.
For the common problem of abnormal tire temperature and pressure in trailer transportation, the intelligent trailer has built-in real-time monitoring and automatic inflation system of tire temperature and pressure. When abnormal tire temperature and pressure occur, the system will automatically warn the driver and start the automatic inflation function when necessary to ensure the normal running of the vehicle.
The application of intelligent ABS system can effectively realize real-time monitoring and early warning of abnormal temperature changes caused by frequent braking of wheel hub axle. At the same time, it integrates reversing radar and trailer rear-view video real-time monitoring, which effectively improves the safety of trucks.
Intelligent trailer is equipped with on-board weighing data terminal and intelligent dynamic load monitoring platform to achieve accurate weighing management in the whole process of transportation. In the loading and unloading link, automatic weighing and real-time perception of cargo weight; The dynamic monitoring platform monitors the loading balance state of the trailer, ensures that the loading of goods remains level, and avoids the damage of goods and vehicle accidents caused by the high-speed driving of vehicles due to the loading imbalance.
With the excellent development of flying car, the company's various products sell well in more than 20 provinces, cities and autonomous regions in China, some products are exported to Asia, Africa, America, Russia, Mongolia and many countries and regions in the Middle East, much favored by the majority of domestic and foreign logistics transportation users.
In the 2018 Hannover Commercial Auto Show in Germany, Zhongxu Automobile showed its brilliance in the international market again with intelligent semi-trailer. In the foreseeable future, Zhongxu Automobile will become an innovative model in the transportation equipment manufacturing industry!
Adhering to the enterprise purpose of customized transport vehicle experts, Galloping car to this constantly efforts!
Help the logistics and transportation industry to reduce costs and increase efficiency, achieve strategic transformation, and move forward to cloud-based trailer operation status and full-life digital management;
With a broad vision and extraordinary strength, Zhongxu Auto will join hands with friends in the logistics industry at home and abroad to open a better tomorrow!
