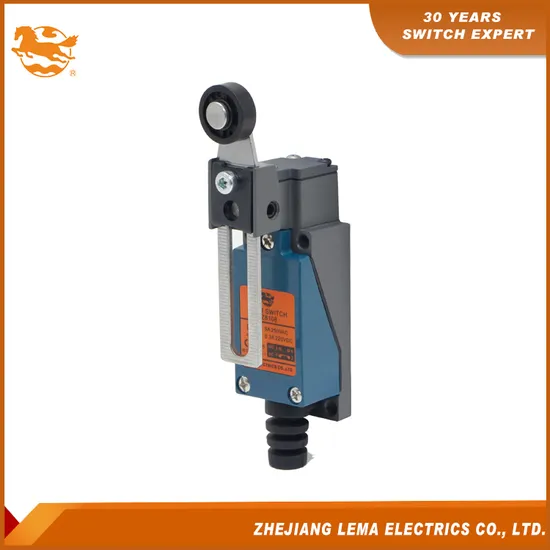

Lz8108 Adjustable Rocker Arm Roller Lever Mini Limit Switch
| US$2.31-2.77 | 1 Piece (MOQ) |
Basic Info.
Model NO.
LZ8108
Certification
CE, CCC
Switching Element
Limit Switch
Application
Electronic Equipment
Contactless Type
Limit Switch
Contact
Contact
Name
Lz8108
Operation Force
750g (7.35n)
Rating
5A 250VAC
Protection Degree
IP65
Ambient Temprature
-25 to +85 Centigrade Degree
Transport Package
Standard Packing
Specification
28*25*97
Trademark
Lema
Origin
Yueqing, Zhejiang
HS Code
8536500000
Production Capacity
100000 PCS Per Year
Product Description
Lema LZ8108 Adjustable Rocker Arm Roller Lever Mini Limit Switch| Operating speed | 0.5mm-50cm/sec | |
| Operating frequency | Mechanical:120 times/min | |
| Electrical:30 times/min | ||
| Initial insulation resistance | 100MΩmin.(at 500VDC) | |
| Initial contact resistance | 25MΩmax. | |
| Dielectric strength | Between non-consecutive terminals | 1,000Vrms, 50/60Hz for 1 min |
| Between non-current carrying metal parts and each terminal | 1,500Vrms, 50/60Hz for 1 min | |
| Between ground and each terminal | 1,500Vrms, 50/60Hz for 1 min | |
| Vibration resistance | 10-55Hz,1.5mm double amplitude | |
| Shock resistance | Mechanical durable: 1000m/s2max. Malfunction: 300m/s2max. | |
| Operating life | Mechanical life | 10,000,000 operations min. |
| Electrical life | 500,000 operations min. | |
